FJ62V-MNC (1987)
Toyota Land Cruiser Van
Production
Aug 1987
-
Jan 1990
Engine
3F
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

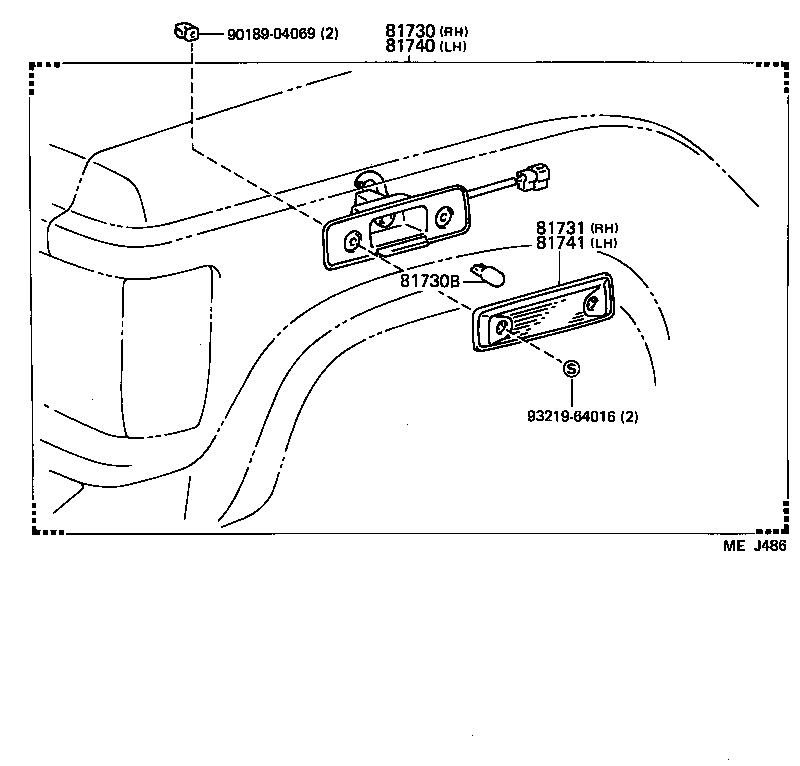

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-14090 |
FJ62 |
1 | ||
| 81730-90A04 |
FJ62 |
1 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 99132-12050 |
FJ62 12V 5W |
2 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-14090 |
FJ62,HJ6# |
1 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81740-14090 |
FJ62 |
1 | ||
| 81740-90A04 |
FJ62 |
1 | ||
| 81741 - LENS, SIDE TURN SIGNAL LAMP, LH | ||||
| 81741-14090 |
FJ62,HJ6# |
1 | ||
| Common parts | ||||
| 90189-04069 | ||||
| 93219-64016 | ||||
