FJ62V-MNC (1987)
Toyota Land Cruiser Van

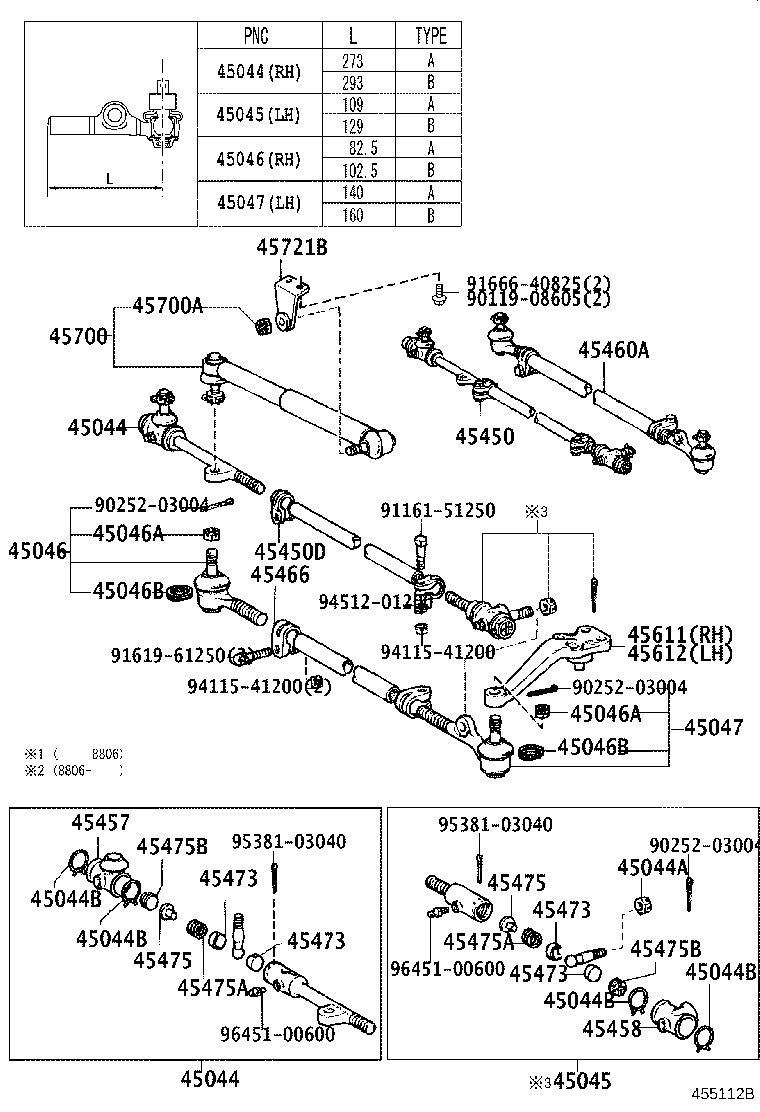

ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45044 - END SUB-ASSY, STEERING RELAY ROD, RH | ||||
| 45044-69065 |
FJ62,HJ6# ﾀｲﾌﾟ A |
1 | ||
| 45044-69066 |
FJ62,HJ6# ﾀｲﾌﾟ B |
1 | ||
| 45044 - END SUB-ASSY, STEERING RELAY ROD, RH | ||||
| 45044-69065 |
FJ62,HJ6# ﾀｲﾌﾟ A |
1 | ||
| 45044-69066 |
FJ62,HJ6# ﾀｲﾌﾟ B |
1 | ||
| 45044A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90171-14042 |
FJ62,HJ6# |
2 | ||
| 45044B - RING, SET(FOR RELAY ROD) | ||||
| 90467-32002 |
FJ62,HJ6# |
4 | ||
| 45044B - RING, SET(FOR RELAY ROD) | ||||
| 90467-32002 |
FJ62,HJ6# |
4 | ||
| 45044B - RING, SET(FOR RELAY ROD) | ||||
| 90467-32002 |
FJ62,HJ6# |
4 | ||
| 45044B - RING, SET(FOR RELAY ROD) | ||||
| 90467-32002 |
FJ62,HJ6# |
4 | ||
| 45045 - END SUB-ASSY, STEERING RELAY ROD, LH | ||||
| 45045-69045 |
FJ62,HJ6# ﾀｲﾌﾟ A |
1 | ||
| 45045-69046 |
FJ62,HJ6# ﾀｲﾌﾟ B |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45047-69066 |
FJ62,HJ6# ﾀｲﾌﾟ B |
1 | ||
| 45047-69065 |
FJ62,HJ6# ﾀｲﾌﾟ A |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
FJ62,HJ6# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
FJ62,HJ6# |
2 | ||
| 45046B - RING, SET(FOR TIE ROD END DUST SEAL) | ||||
| 90522-32011 |
FJ62,HJ6# |
2 | ||
| 45046B - RING, SET(FOR TIE ROD END DUST SEAL) | ||||
| 90522-32011 |
FJ62,HJ6# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-69106 |
FJ62,HJ6# ﾀｲﾌﾟ B |
1 | ||
| 45046-69105 |
FJ62,HJ6# ﾀｲﾌﾟ A |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-69065 |
FJ62,HJ6# |
1 | ||
| 45450D - CLAMP, STEERING RELAY ROD END | ||||
| 45466-55020 |
FJ62,HJ6# |
2 | ||
| 45457 - SEAL, STEERING LINK DUST, RH | ||||
| 45457-60010 |
FJ62,HJ6# |
1 | ||
| 45458 - SEAL, STEERING LINK DUST, LH | ||||
| 45458-60010 |
FJ62,HJ6# |
1 | ||
| 45460A - ROD ASSY, TIE | ||||
| 45460-69095 |
FJ62,HJ6# |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36010 |
FJ62,HJ6# |
2 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
FJ62,HJ6# |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
FJ62,HJ6# |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
FJ62,HJ6# |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
FJ62,HJ6# |
4 | ||
| 45475 - SEAT, STEERING LINK JOINT SPRING | ||||
| 45475-35010 |
FJ62,HJ6# |
2 | ||
| 45475 - SEAT, STEERING LINK JOINT SPRING | ||||
| 45475-35010 |
FJ62,HJ6# |
2 | ||
| 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) | ||||
| 90501-45114 |
FJ62,HJ6# |
2 | ||
| 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) | ||||
| 90501-45114 |
FJ62,HJ6# |
2 | ||
| 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) | ||||
| 90340-25001 |
FJ62,HJ6# |
2 | ||
| 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) | ||||
| 90340-25001 |
FJ62,HJ6# |
2 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-60040 |
FJ62,HJ6# |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-60040 |
FJ62,HJ6# |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-69025 |
FJ62,HJ6# |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 94184-61200 |
FJ62,HJ6# |
2 | ||
| 45721B - BRACKET, STEERING DAMPER, NO.3 | ||||
| 45721-60030 |
FJ62,HJ6# |
1 | ||
| Common parts | ||||
| 90119-08605 | ||||
| 90252-03004 | ||||
| 91161-51250 | ||||
| 91619-61250 | ||||
| 91666-40825 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
| 95381-03040 | ||||
| 96451-00600 | ||||

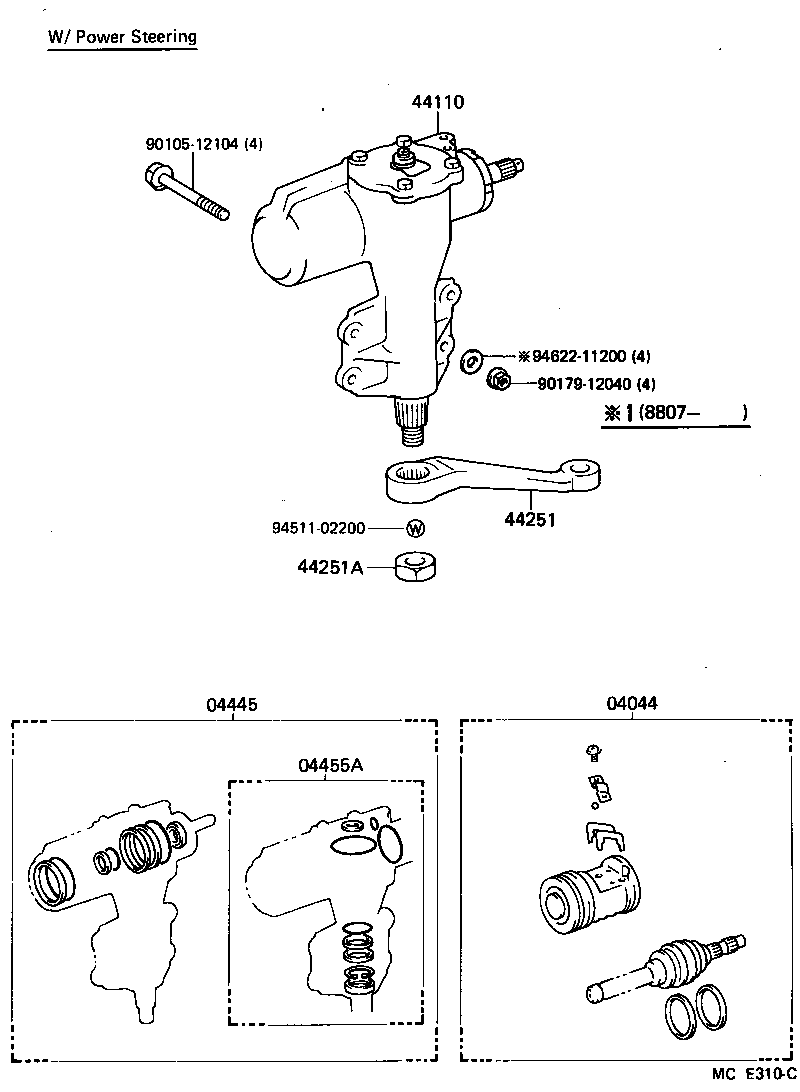

ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04044 - WARM KIT, POWER STEERING | ||||
| 04044-60140 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-60030 |
FJ62,HJ6#..CBU |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-60020 |
FJ62,HJ6#..CBU |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-60150 |
FJ62,HJ6#..CBU |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45411-60090 |
FJ62,HJ6#..CBU |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-22058 |
FJ62,HJ6#..CBU |
1 | ||
| Common parts | ||||
| 90105-12104 | ||||
| 90179-12040 | ||||
| 94511-02200 | ||||
| 94622-11200 | ||||

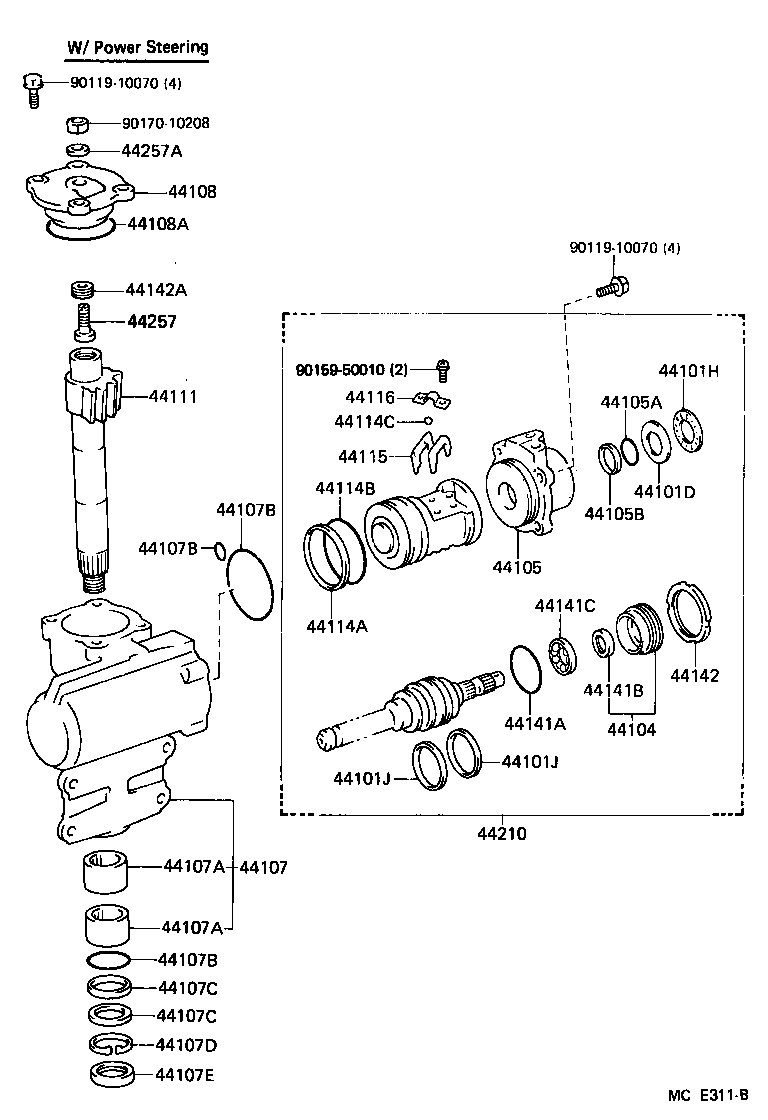

ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
FJ62,HJ6#..CBU |
1 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
FJ62,HJ6#..CBU |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-48001 |
FJ62,HJ6#..CBU |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-48001 |
FJ62,HJ6#..CBU |
2 | ||
| 44104 - PLUG SUB-ASSY, ADJUSTER | ||||
| 44104-22011 |
FJ62,HJ6#..CBU |
1 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-30060 |
FJ62,HJ6#..CBU |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
FJ62,HJ6#..CBU |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
FJ62,HJ6#..CBU |
1 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-60050 |
FJ62,HJ6#..CBU |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
FJ62,HJ6#..CBU |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
FJ62,HJ6#..CBU |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
FJ62,HJ6#..CBU 外径=13.6,内径=9.8 |
1 | ||
| 90301-33002 |
FJ62,HJ6#..CBU 内径=33.7,外径=40.7 |
1 | ||
| 90301-65145 |
FJ62,HJ6#..CBU 内径=65.0,外径=70.0 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
FJ62,HJ6#..CBU 外径=13.6,内径=9.8 |
1 | ||
| 90301-33002 |
FJ62,HJ6#..CBU 内径=33.7,外径=40.7 |
1 | ||
| 90301-65145 |
FJ62,HJ6#..CBU 内径=65.0,外径=70.0 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
FJ62,HJ6#..CBU 外径=13.6,内径=9.8 |
1 | ||
| 90301-33002 |
FJ62,HJ6#..CBU 内径=33.7,外径=40.7 |
1 | ||
| 90301-65145 |
FJ62,HJ6#..CBU 内径=65.0,外径=70.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32002 |
FJ62,HJ6#..CBU 内径=32,外径=40 |
1 | ||
| 90562-31002 |
FJ62,HJ6#..CBU 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32002 |
FJ62,HJ6#..CBU 内径=32,外径=40 |
1 | ||
| 90562-31002 |
FJ62,HJ6#..CBU 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-44002 |
FJ62,HJ6#..CBU |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32002 |
FJ62,HJ6#..CBU |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60010 |
FJ62,HJ6#..CBU |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
FJ62,HJ6#..CBU |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-60040 |
FJ62,HJ6#..CBU |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67002 |
FJ62,HJ6#..CBU |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-64005 |
FJ62,HJ6#..CBU |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
FJ62,HJ6#..CBU |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-30030 |
FJ62,HJ6#..CBU |
2 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-30030 |
FJ62,HJ6#..CBU |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
FJ62,HJ6#..CBU |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
FJ62,HJ6#..CBU |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22004 |
FJ62,HJ6#..CBU |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
FJ62,HJ6#..CBU |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
FJ62,HJ6#..CBU |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-60120 |
FJ62,HJ6#..CBU |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-22010 |
FJ62,HJ6#..CBU |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
FJ62,HJ6#..CBU |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90159-50010 | ||||
| 90170-10208 | ||||
