FJ62V-MNC (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 3F
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )3F

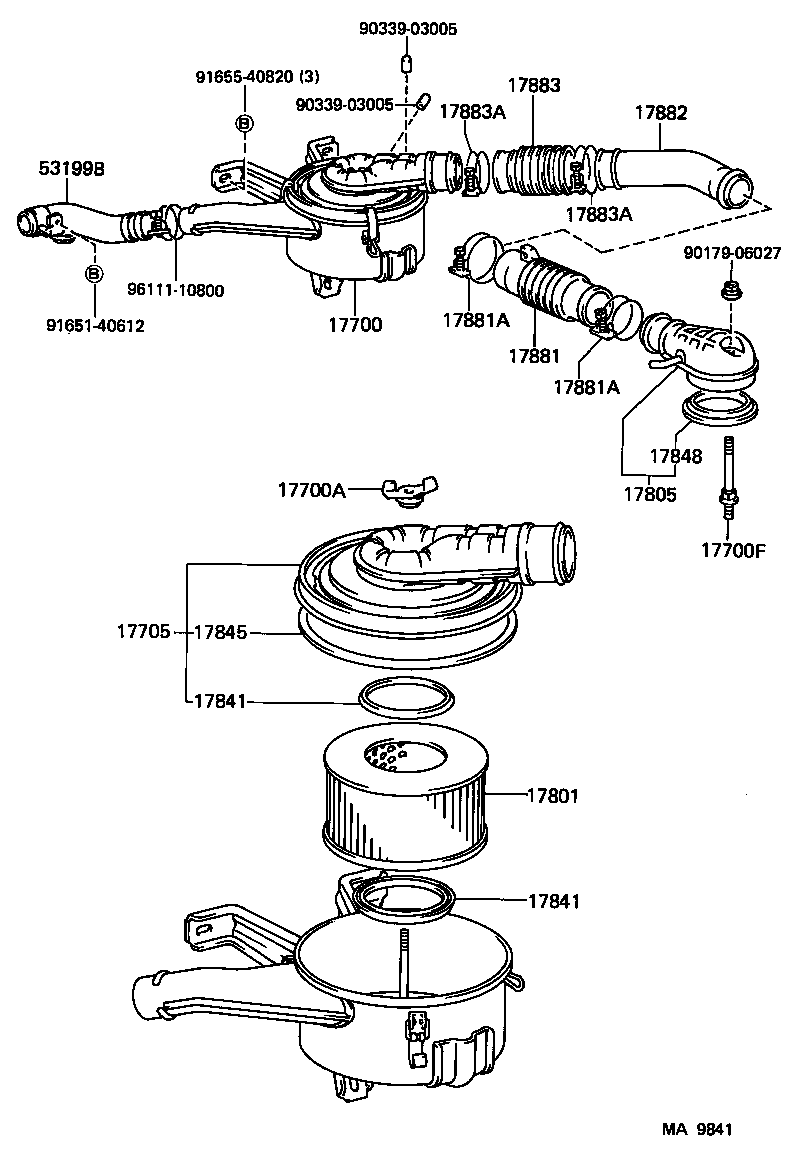

Click highlighted areas on diagram

diagram 17700 17700A 17700F 17705 17801 17805 17841 17841 17845 17848 17881 17881A 17881A 17882 17883 17883A 17883A 53199B 9017906027 9033903005 9033903005 9165140612 9165540820 9611110800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-68140

3F..FJ62

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

3F#..FJ62

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06024

3F..FJ62..CBU

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-68100

3F..FJ62

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-68020

3F#..FJ62

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-61020

3F..FJ62..CBU

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

3F#..FJ62

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

3F#..FJ62

 2
17845 - GASKET, AIR CLEANER CAP
17845-61011

3F#..FJ62

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-61020

3F..FJ62

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-61061

3F..FJ62

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

3F..FJ62

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

3F..FJ62

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-61031

3F..FJ62

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-61011

3F..FJ62

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10800

3F..FJ62

AIR CLEANER SIDE,AIR CLEANER SIDE

 1
96111-10880

3F..FJ62

HOSE SIDE,HOSE SIDE

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10800

3F..FJ62

AIR CLEANER SIDE,AIR CLEANER SIDE

 1
96111-10880

3F..FJ62

HOSE SIDE,HOSE SIDE

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-90A00

FJ62

 1
Common parts
90179-06027
90339-03005
91651-40612
91655-40820
96111-10800
