FJ62V-MC (1984)

Toyota Land Cruiser Van

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )FJ62,HJ60

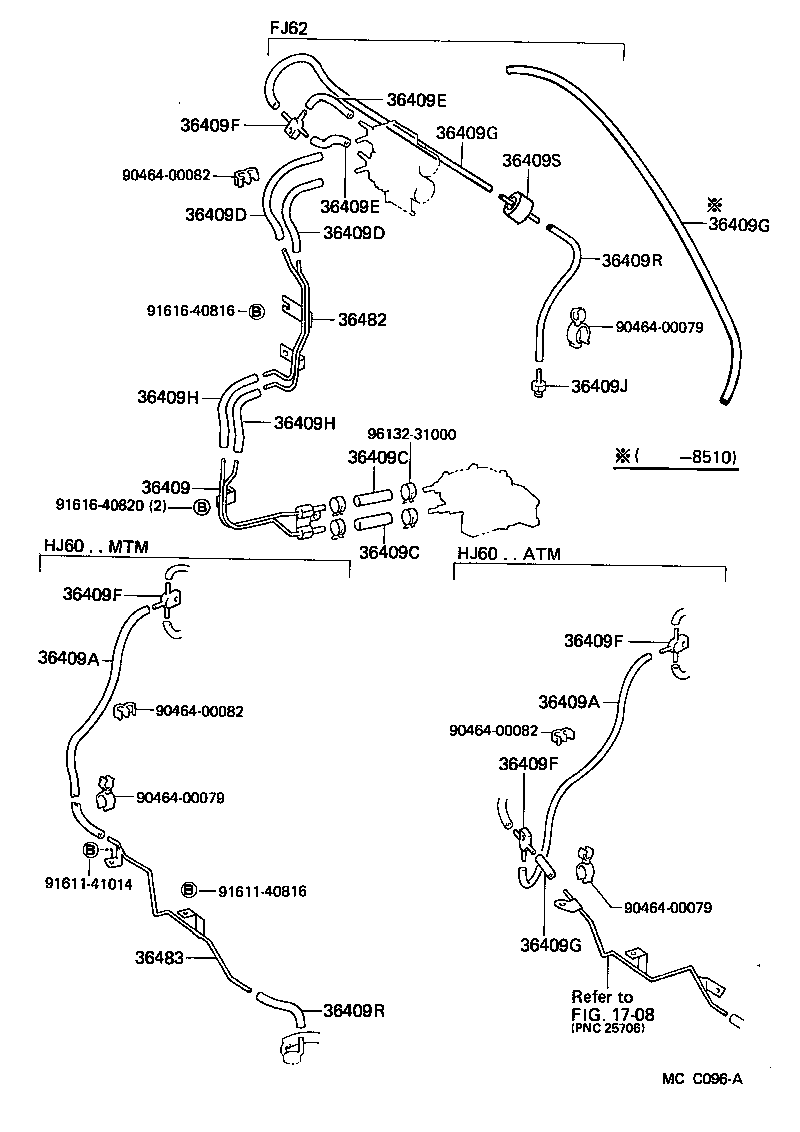

Click highlighted areas on diagram

diagram 1708 36409 36409A 36409A 36409C 36409C 36409D 36409D 36409E 36409E 36409F 36409F 36409F 36409F 36409G 36409G 36409G 36409H 36409H 36409J 36409R 36409R 36409S 36482 36483 9046400079 9046400079 9046400079 9046400082 9046400082 9046400082 9161140816 9161141014 9161640816 9161640820 9613231000
Part # Description Qty Price
36409 - SUPPORT SUB-ASSY, VACUUM TUBE UNION
36409-60040

FJ62,HJ6#..CBU

 1
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
95441-09200

BJ61,FJ62,HJ6#..MTM..CBU

長さ=200

 2
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
95441-09200

BJ61,FJ62,HJ6#..MTM..CBU

長さ=200

 2
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
95411-19930

FJ62,HJ6#..CBU

*H,L=160,ﾏｰｸ=#*

 1
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
95411-19930

FJ62,HJ6#..CBU

*H,L=160,ﾏｰｸ=#*

 1
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
95411-19930

FJ62,HJ6#..CBU

*H,L=200,ﾏｰｸ=#*

 2
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
95411-19930

FJ62,HJ6#..CBU

*H,L=200,ﾏｰｸ=#*

 2
36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)
90413-04005

BJ61,FJ62,HJ6#..CBU

 1
36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)
90413-04005

BJ61,FJ62,HJ6#..CBU

 1
36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)
90413-04005

BJ61,FJ62,HJ6#..CBU

 1
36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)
90413-04005

BJ61,FJ62,HJ6#..CBU

 1
36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)
95411-19960

FJ62..CBU

*H,L=510,ﾏｰｸ=#*

 1
95411-19995

FJ62..CBU

*H,L=900,ﾏｰｸ=#*

 1
36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)
95411-19960

FJ62..CBU

*H,L=510,ﾏｰｸ=#*

 1
95411-19995

FJ62..CBU

*H,L=900,ﾏｰｸ=#*

 1
36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)
95411-19960

FJ62..CBU

*H,L=510,ﾏｰｸ=#*

 1
95411-19995

FJ62..CBU

*H,L=900,ﾏｰｸ=#*

 1
36409H - HOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)
95411-19930

BJ61,FJ62,HJ6#..CBU

*H,L=50,ﾏｰｸ=#*

 2
36409H - HOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)
95411-19930

BJ61,FJ62,HJ6#..CBU

*H,L=50,ﾏｰｸ=#*

 2
36409J - UNION (FOR FRONT DRIVE SHIFT)
90404-51093

FJ62

 1
36409R - HOSE, VACUUM, NO.10 (FOR FRONT DRIVE SHIFT)
95411-19960

FJ62..CBU

*H,L=360,ﾏｰｸ=#*

 1
36409R - HOSE, VACUUM, NO.10 (FOR FRONT DRIVE SHIFT)
95411-19960

FJ62..CBU

*H,L=360,ﾏｰｸ=#*

 1
36409S - VALVE, CHECK (FOR FRONT DRIVE SHIFT)
90917-10065

FJ62..CBU

 1
36482 - TUBE, FRONT DRIVE VACUUM, NO.2
36482-60100

FJ62,HJ6#..CBU

 1
Common parts
90464-00079
90464-00082
91611-40816
91611-41014
91616-40816
91616-40820
96132-31000
Linked diagrams
1708
