FJ62V-MC (1984)

Toyota Land Cruiser Van

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )3F

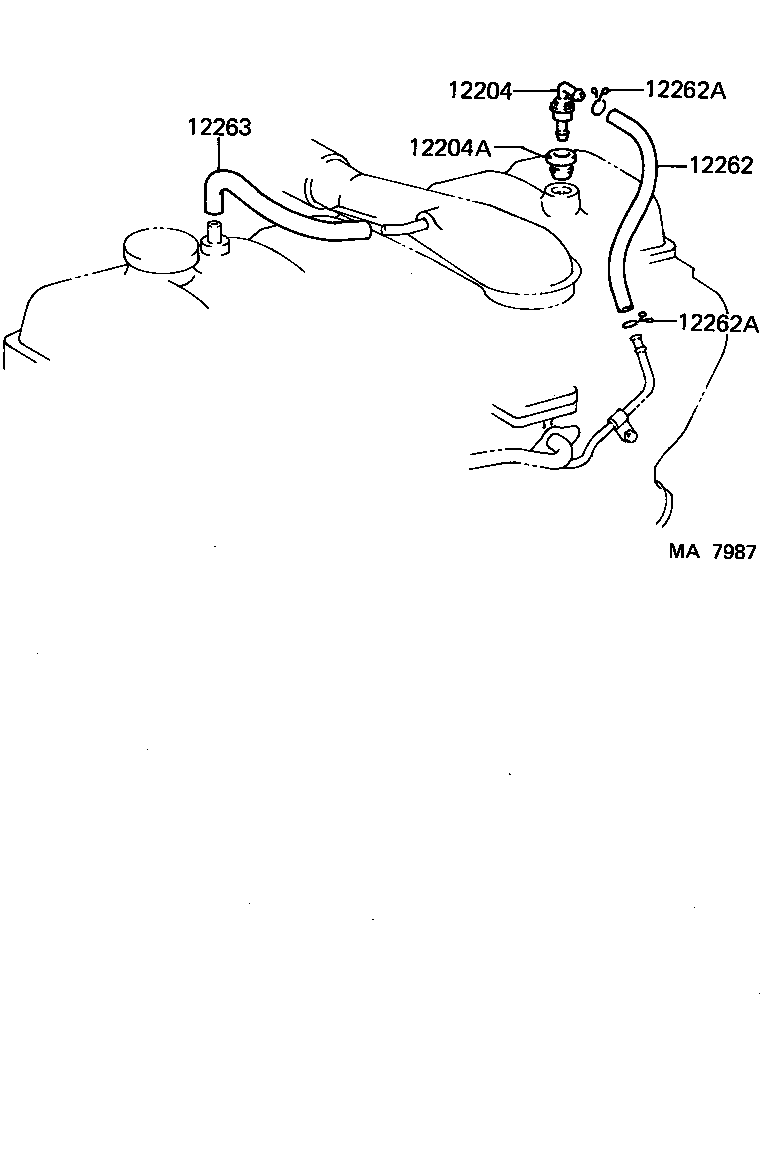

Click highlighted areas on diagram

diagram 12204 12204A 12262 12262A 12262A 12263
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-35020

3F..FJ62

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

3F..FJ62

 1
12262 - HOSE, VENTILATION, NO.2
12261-61050

3F..FJ62

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15120

3F..FJ62

 2
90467-15006

3F..FJ62

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15120

3F..FJ62

 2
90467-15006

3F..FJ62

 2
12263 - HOSE, VENTILATION, NO.3
12262-61010

3F..FJ62

 1
