FJ62G-PEZE (1988)

Toyota Land Cruiser Van

Production Aug 1988 - Jan 1990
Engine 3FE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3FE

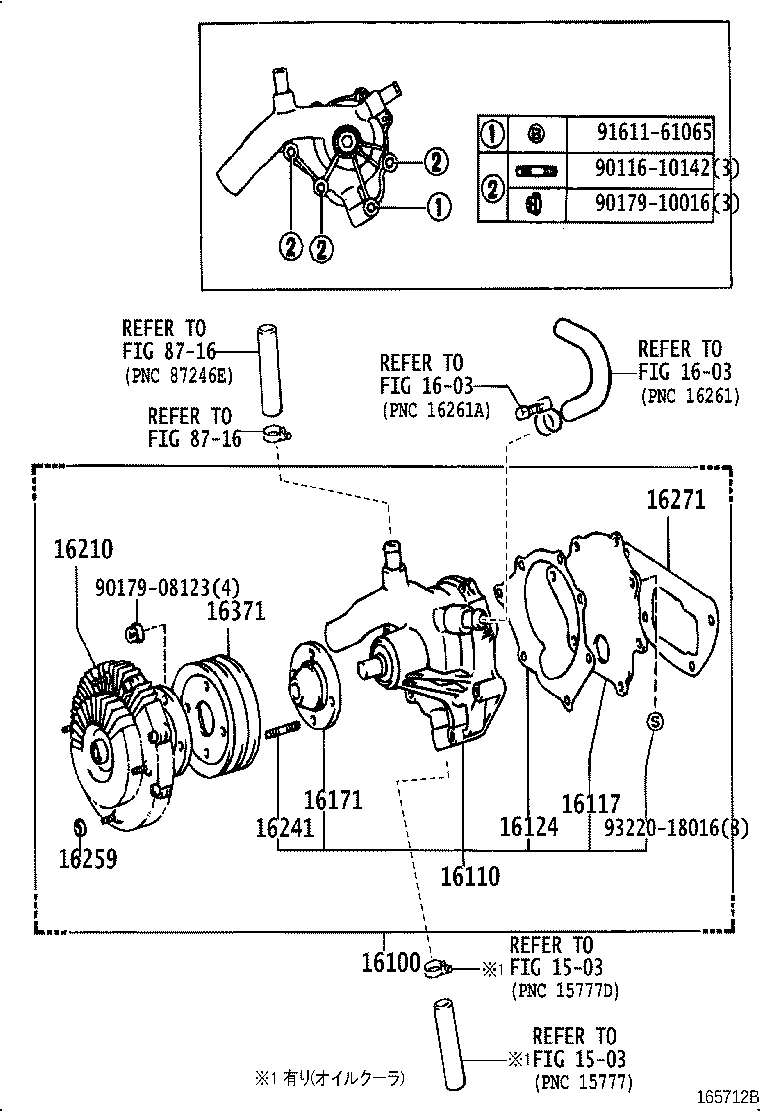

Click highlighted areas on diagram

diagram 1503 1503 1603 1603 16100 16110 16117 16124 16171 16210 16241 16259 16271 16371 8716 8716 9011610142 9017908123 9017910016 9161161065 9322018016
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69145

3F..FJ62

 1
16100-69195

3FE..FJ62

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-61180

3FE..FJ62

 1
16110-61170

3F..FJ62

 1
16117 - PLATE, WATER PUMP
16117-61110

3F#..FJ62

 1
16124 - GASKET, WATER PUMP COVER
16124-61110

3F#..FJ62

 1
16171 - SEAT, WATER PUMP PULLEY
16171-61071

3F#..FJ62

 1
16210 - COUPLING ASSY, FLUID
16210-61140

3FE..FJ62

 1
16210-61121

3F..FJ62

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16198-41050

3FE..FJ62

 1
16198-41050

3F..FJ62

 4
16259 - GASKET, FAN
16259-52010

3F#..FJ62

 4
16271 - GASKET, WATER PUMP
16271-61010

3F#..FJ62

 1
16371 - PULLEY, FAN
16173-61070

3F#..FJ62

 1
Common parts
90116-10142
90179-08123
90179-10016
91611-61065
93220-18016
Linked diagrams
1503
1603
8716
