FJ62G-PEZE (1988)
Toyota Land Cruiser Van
Production
Aug 1988
-
Jan 1990
Engine
3FE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3FE

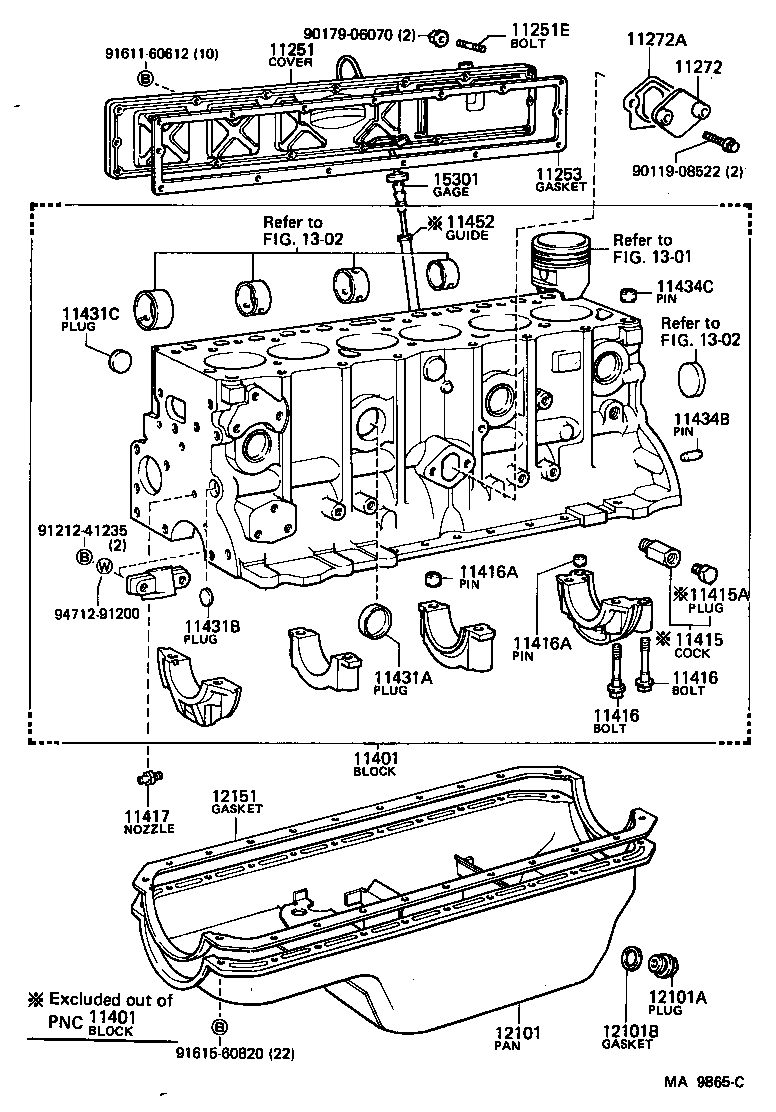

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11251-61020 |
3F#..FJ62 |
1 | ||
| 11251E - BOLT, STUD(FOR VALVE PUSH ROD COVER) | ||||
| 90116-06022 |
3F#..FJ62 |
2 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-61010 |
3F#..FJ62 |
1 | ||
| 11272 - COVER, CYLINDER BLOCK SIDE, NO.2 | ||||
| 11495-61010 |
3FE..FJ62 |
1 | ||
| 11272A - GASKET, CYLINDER BLOCK SIDE COVER, NO.2 | ||||
| 90923-05011 |
3FE..FJ62 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-69306 |
3F#..FJ62 |
1 | ||
| 11401-69305 |
3F#..FJ62 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53828 |
3F#..FJ62 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
3F#..FJ62 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-14033 |
3F#..FJ62 NO.1,2,3,*18-2PX65-2 |
6 | ||
| 90910-02057 |
3F#..FJ62 NO.4,*12-1.75PX68-26 |
4 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-14033 |
3F#..FJ62 NO.1,2,3,*18-2PX65-2 |
6 | ||
| 90910-02057 |
3F#..FJ62 NO.4,*12-1.75PX68-26 |
4 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-18003 |
3F#..FJ62 NO.1,2,3 |
6 | ||
| 90253-16014 |
3F#..FJ62 NO.4 |
2 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-18003 |
3F#..FJ62 NO.1,2,3 |
6 | ||
| 90253-16014 |
3F#..FJ62 NO.4 |
2 | ||
| 11417 - NOZZLE, OIL | ||||
| 90915-01014 |
3F#..FJ62 |
1 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
3F#..FJ62 |
5 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90344-54003 |
3F#..FJ62 |
2 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
3F#..FJ62 |
4 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10192 |
3F#..FJ62 長さ=22,外径=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-17003 |
3F#..FJ62 長さ=7,外径=16.5 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-61010 |
3F#..FJ62 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-61030 |
3F#..FJ62..CBU |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
3F#..FJ62 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12011 |
3F..FJ62 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-61011 |
3F#..FJ62 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-60031 |
3F#..FJ62 |
1 | ||
| Common parts | ||||
| 90119-08522 | ||||
| 90179-06070 | ||||
| 91212-41235 | ||||
| 91611-60612 | ||||
| 91615-60820 | ||||
| 94712-91200 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
