FJ61V-KCH4 (1982)

Toyota Land Cruiser Van

Production Oct 1982 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

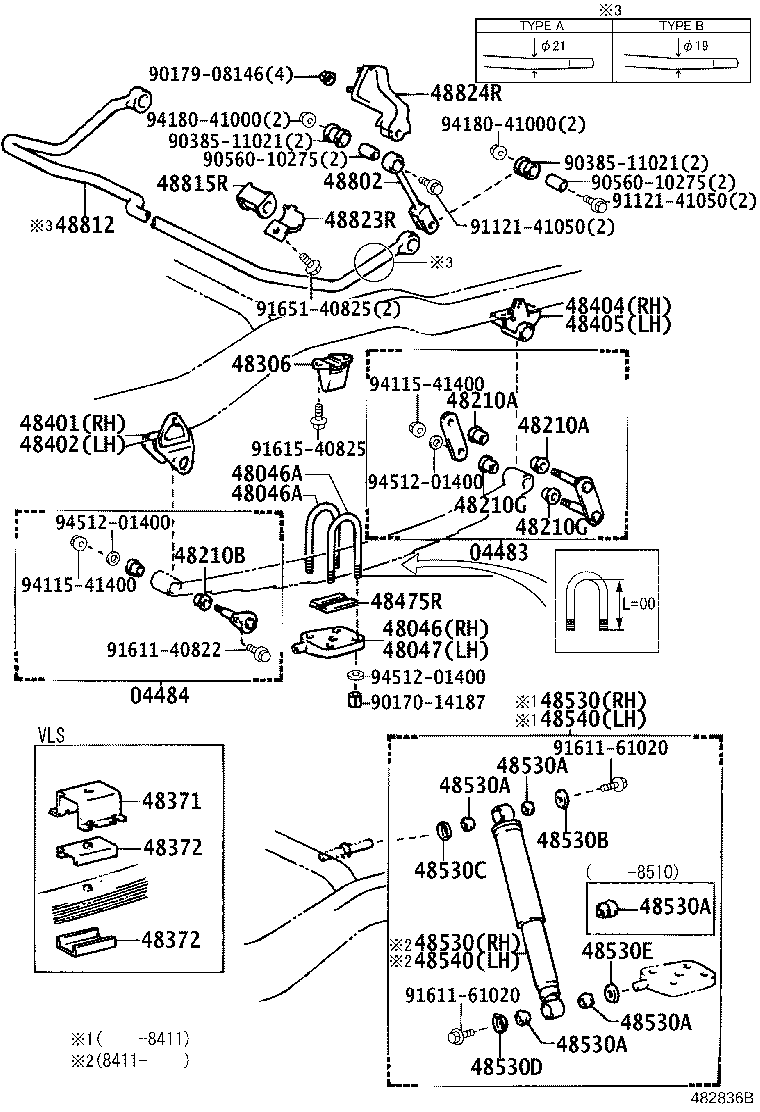

ILLUST NO. 1 OF 2(8008-8510)

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48046A 48047 48210A 48210A 48210B 48210G 48210G 48306 48371 48372 48372 48401 48402 48404 48405 48475R 48530 48530 48530A 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48540 48540 48802 48812 48815R 48823R 48824R 9017014187 9017908146 9038511021 9038511021 9056010275 9056010275 9112141050 9112141050 9161140822 9161161020 9161161020 9161540825 9165140825 9411541400 9411541400 9418041000 9418041000 9451201400 9451201400 9451201400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-60050

BJ6#,FJ6#,HJ6#

 2
04484 - PIN KIT, REAR SPRING
04482-60040

BJ6#,FJ6#,HJ6#

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-60040

BJ6#,FJ6#..VKC

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-60040

BJ6#,FJ6#..VKC

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90389-18002

BJ6#,FJ6#,HJ6#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90389-18002

BJ6#,FJ6#,HJ6#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90389-18002

BJ6#,FJ6#,HJ6#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90389-18002

BJ6#,FJ6#,HJ6#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90389-18002

BJ6#,FJ6#,HJ6#

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-60030

BJ6#,FJ6#,HJ60

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-60040

BJ6#,FJ6#,HJ60

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48415-60040

BJ6#,FJ6#,HJ60

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-60030

BJ6#,FJ6#,HJ6#

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48416-60030

BJ6#,FJ6#,HJ6#

 1
48475R - PLATE, DISTANCE(FOR REAR)
48475-60020

BJ6#,FJ6#..VKC

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-69065

BJ6#,FJ6#,HJ60

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-69065

BJ6#,FJ6#,HJ60

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

BJ6#,FJ6#,HJ60

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

BJ6#,FJ6#,HJ60

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

BJ6#,FJ6#,HJ60

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

BJ6#,FJ6#,HJ60

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

BJ6#,FJ6#,HJ60

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03007

BJ6#,FJ6#,HJ60

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BJ6#,FJ6#,HJ60

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03007

BJ6#,FJ6#,HJ60

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BJ6#,FJ6#,HJ60

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-69065

BJ6#,FJ6#,HJ60

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-69065

BJ6#,FJ6#,HJ60

 1
Common parts
90170-14187
90179-08146
90385-11021
90560-10275
91121-41050
91611-40822
91611-61020
91615-40825
91651-40825
94115-41400
94180-41000
94512-01400
