FJ61V-KC (1982)

Toyota Land Cruiser Van

Production Oct 1982 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8411)2F

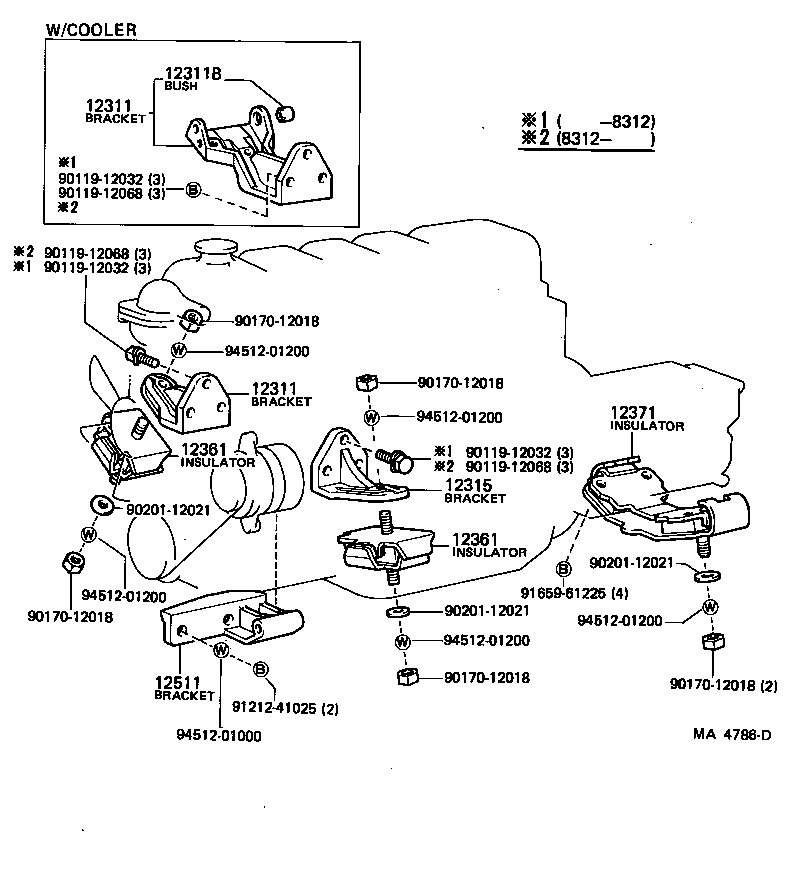

Click highlighted areas on diagram

diagram 12311 12311 12311B 12315 12361 12361 12371 12511 9011912032 9011912032 9011912032 9011912068 9011912068 9011912068 9017012018 9017012018 9017012018 9017012018 9017012018 9020112021 9020112021 9020112021 9121241025 9165961225 9451201000 9451201200 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-61012

2F..FJ6#

W/COOLER

 1
12311-61011

2F..FJ6#

 1
12311-61012

2F..FJ61

 1
12301-61013

2F..FJ61

W/COOLER

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-61012

2F..FJ6#

W/COOLER

 1
12311-61011

2F..FJ6#

 1
12311-61012

2F..FJ61

 1
12301-61013

2F..FJ61

W/COOLER

 1
12311B - BUSH(FOR ENGINE MOUNTING BRACKET)
90387-10028

2F..FJ6#

W/COOLER

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-61011

2F..FJ6#

 1
12315-61012

2F..FJ61

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61020

2F..FJ6#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61020

2F..FJ6#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-61020

2F..FJ6#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-60081

2F..FJ6#

 1
Common parts
90119-12032
90119-12068
90170-12018
90201-12021
91212-41025
91659-61225
94512-01000
94512-01200
