FJ60V-KCQ (1980)

Toyota Land Cruiser Van

Production Aug 1980 - Oct 1982
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

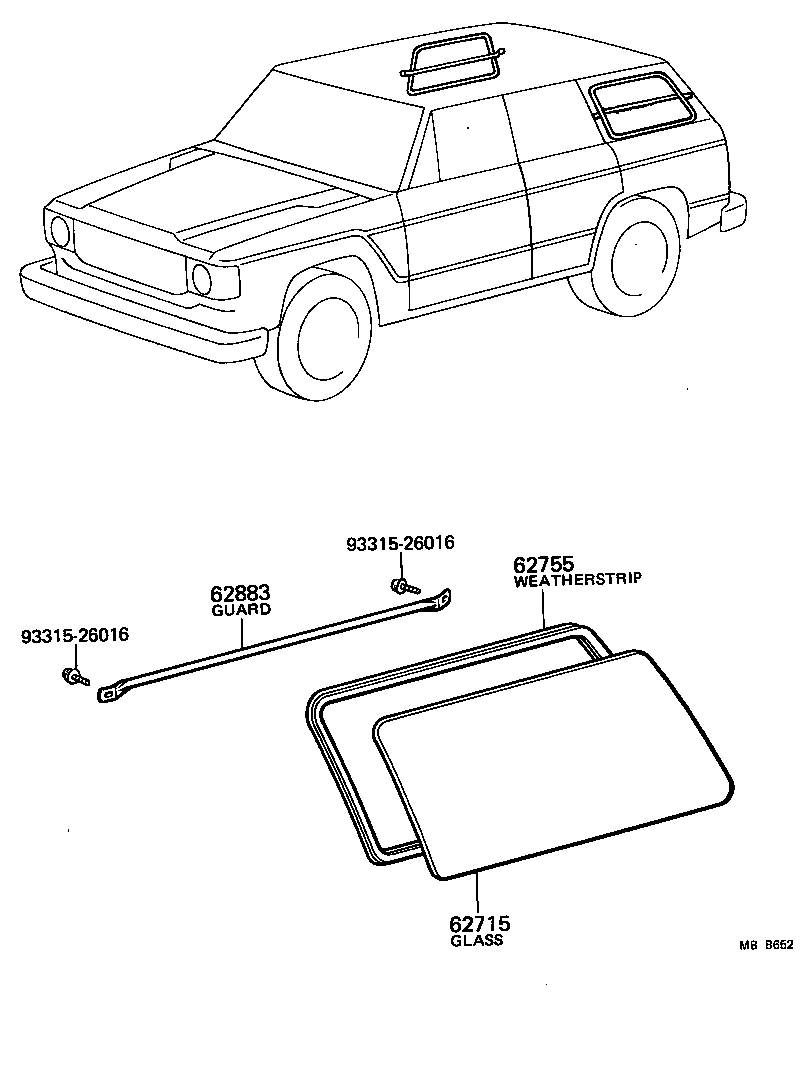

Click highlighted areas on diagram

diagram 62715 62755 62883 9331526016 9331526016
Part # Description Qty Price
62715 - GLASS, SIDE WINDOW, NO.1(FOR FIXED TYPE)
62711-90A00

BJ60,FJ60

RH,*TEM,T=4.0

 1
62712-90A01

BJ6#,FJ6#

*TT,厚さ=4.0,LH,*TT,T=4.0

 1
62711-90A01

BJ6#,FJ6#

*TT,厚さ=4.0,RH,*TT,T=4.0

 1
62712-90A00

BJ60,FJ60

LH,*TEM,T=4.0

 1
62755 - WEATHERSTRIP, SIDE WINDOW, NO.1(FOR FIXED TYPE)
62741-90A01

BJ6#,FJ6#,HJ6#

W/MOULDING

 2
62741-90A00

BJ60,FJ60

W/O MOULDING

 2
62883 - GUARD ASSY, SIDE WINDOW
62884-90A00

BJ6#,FJ6#,HJ60

 2
Common parts
93315-26016
