FJ60V-KCQ (1980)

Toyota Land Cruiser Van

Production Aug 1980 - Oct 1982
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8506) ; (8506- )CBU

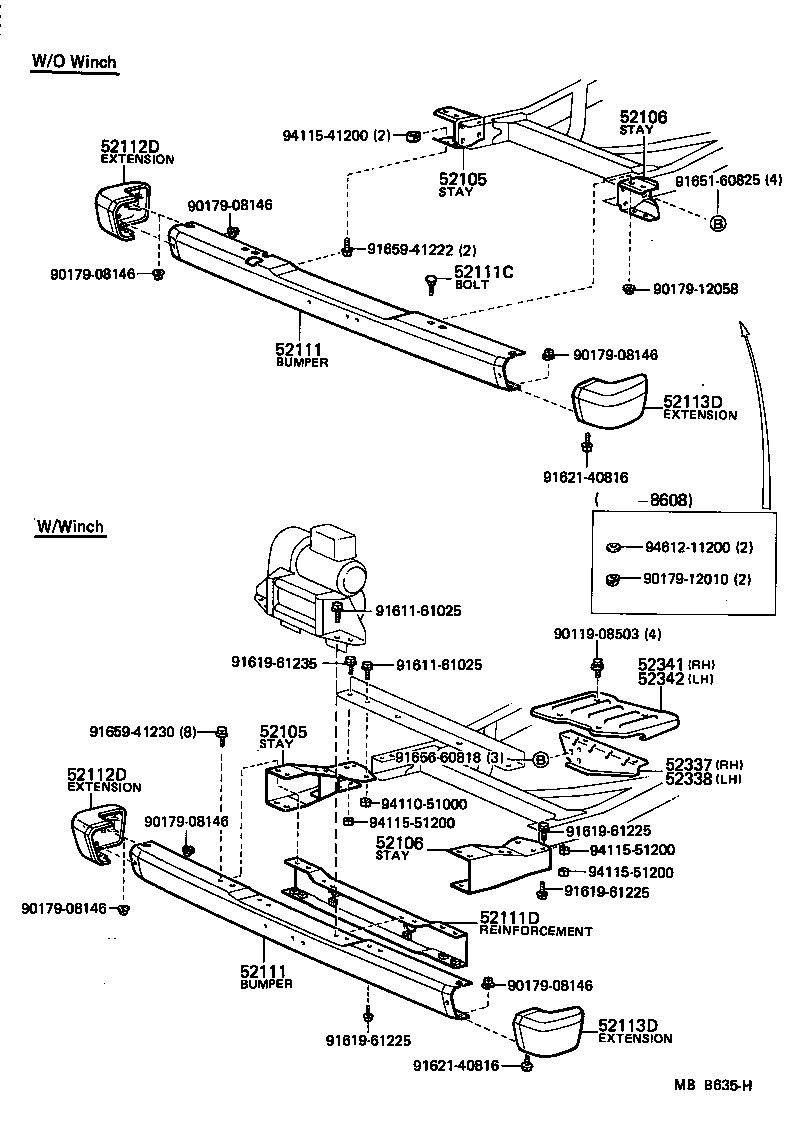

Click highlighted areas on diagram

diagram 52105 52105 52106 52106 52111 52111 52111C 52111D 52112D 52112D 52113D 52113D 52337 52338 52341 52342 9011908503 9017908146 9017908146 9017908146 9017908146 9017908146 9017908146 9017912010 9017912058 9161161025 9161161025 9161961225 9161961225 9161961225 9161961235 9162140816 9162140816 9165160825 9165660818 9165941222 9165941230 9411051000 9411541200 9411551200 9411551200 9411551200 9461211200
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52130-60010

BJ6#,FJ6#,HJ60

W/WINCH

 1
52141-60030

BJ6#,FJ6#,HJ6#

W/O WINCH

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52130-60010

BJ6#,FJ6#,HJ60

W/WINCH

 1
52141-60030

BJ6#,FJ6#,HJ6#

W/O WINCH

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52140-60010

BJ6#,FJ6#,HJ60

W/WINCH

 1
52142-60030

BJ6#,FJ6#,HJ6#

W/O WINCH

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52140-60010

BJ6#,FJ6#,HJ60

W/WINCH

 1
52142-60030

BJ6#,FJ6#,HJ6#

W/O WINCH

 1
52111 - BUMPER ASSY, FRONT
52111-60110

BJ60,FJ60

W/O WINCH

 1
52111-60130

BJ60,FJ60

W/WINCH

 1
52111-60120

BJ6#,FJ6#,HJ6#

CHROME,W/O WINCH

 1
52111-60140

BJ6#,FJ6#,HJ60

CHROME,W/WINCH

 1
52111 - BUMPER ASSY, FRONT
52111-60110

BJ60,FJ60

W/O WINCH

 1
52111-60130

BJ60,FJ60

W/WINCH

 1
52111-60120

BJ6#,FJ6#,HJ6#

CHROME,W/O WINCH

 1
52111-60140

BJ6#,FJ6#,HJ60

CHROME,W/WINCH

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-12041

BJ6#,FJ6#,HJ6#

W/O WINCH

 4
52111D - REINFORCEMENT, FRONT BUMPER
52131-60020

BJ6#,FJ6#,HJ6#

W/WINCH

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-60010

BJ6#,FJ6#,HJ6#

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-60010

BJ6#,FJ6#,HJ6#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-60010

BJ6#,FJ6#,HJ6#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-60010

BJ6#,FJ6#,HJ6#

 1
Common parts
90119-08503
90179-08146
90179-12010
90179-12058
91611-61025
91619-61225
91619-61235
91621-40816
91651-60825
91656-60818
91659-41222
91659-41230
94110-51000
94115-41200
94115-51200
94612-11200
