FJ60V-KCQ (1980)

Toyota Land Cruiser Van

Production Aug 1980 - Oct 1982
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

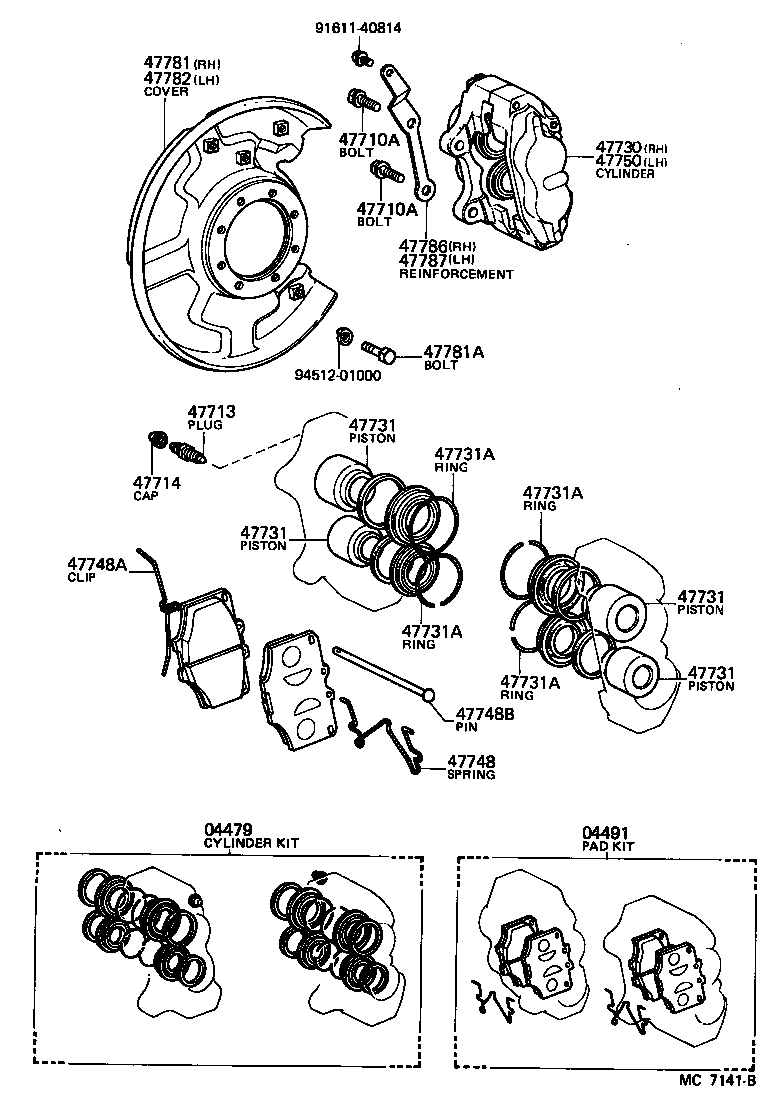

ILLUST NO. 1 OF 2(8008- )

Click highlighted areas on diagram

diagram 04479 04491 47710A 47710A 47713 47714 47730 47731 47731 47731 47731 47731A 47731A 47731A 47731A 47748 47748A 47748B 47750 47781 47781A 47782 47786 47787 9161140814 9451201000
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-30030

BJ6#,FJ6#,HJ6#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-60010

BJ6#,FJ6#,HJ6#

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12060

BJ6#,FJ6#,HJ6#

*12−1.25PX38−23

 4
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12060

BJ6#,FJ6#,HJ6#

*12−1.25PX38−23

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20030

BJ6#,FJ6#,HJ6#

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

BJ6#,FJ6#,HJ6#

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-60021

BJ6#,FJ6#,HJ6#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30020

BJ6#,FJ6#,HJ6#

OD=42.82

 4
47732-30010

BJ6#,FJ6#,HJ6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

BJ6#,FJ6#,HJ6#

OD=42.82

 4
47732-30010

BJ6#,FJ6#,HJ6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

BJ6#,FJ6#,HJ6#

OD=42.82

 4
47732-30010

BJ6#,FJ6#,HJ6#

OD=33.93

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30020

BJ6#,FJ6#,HJ6#

OD=42.82

 4
47732-30010

BJ6#,FJ6#,HJ6#

OD=33.93

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-40043

BJ6#,FJ6#,HJ6#

PISTON OD=33.93

 4
90522-48044

BJ6#,FJ6#,HJ6#

PISTON OD=42.82

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-40043

BJ6#,FJ6#,HJ6#

PISTON OD=33.93

 4
90522-48044

BJ6#,FJ6#,HJ6#

PISTON OD=42.82

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-40043

BJ6#,FJ6#,HJ6#

PISTON OD=33.93

 4
90522-48044

BJ6#,FJ6#,HJ6#

PISTON OD=42.82

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-40043

BJ6#,FJ6#,HJ6#

PISTON OD=33.93

 4
90522-48044

BJ6#,FJ6#,HJ6#

PISTON OD=42.82

 4
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-60010

BJ6#,FJ6#,HJ6#

 2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-12003

BJ6#,FJ6#,HJ6#

 2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06158

BJ6#,FJ6#,HJ6#

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-60021

BJ6#,FJ6#,HJ6#

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-60020

BJ6#,FJ6#,HJ6#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90101-10439

BJ6#,FJ6#,HJ6#

 16
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-60020

BJ6#,FJ6#,HJ6#

 1
47786 - REINFORCEMENT, DUST COVER, RH
47786-60020

BJ6#,FJ6#,HJ6#

 1
47787 - REINFORCEMENT, DUST COVER, LH
47787-60020

BJ6#,FJ6#,HJ6#

 1
Common parts
91611-40814
94512-01000

ILLUST NO. 2 OF 2(8008- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-35170

BJ6#,FJ6#,HJ6#

ﾏｰｸ ADVICS PS509

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-60050

BJ6#,FJ6#,HJ6#

 1
