FJ60V-KCQ (1980)
Toyota Land Cruiser Van
Production
Aug 1980
-
Oct 1982
Engine
2F
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8110)

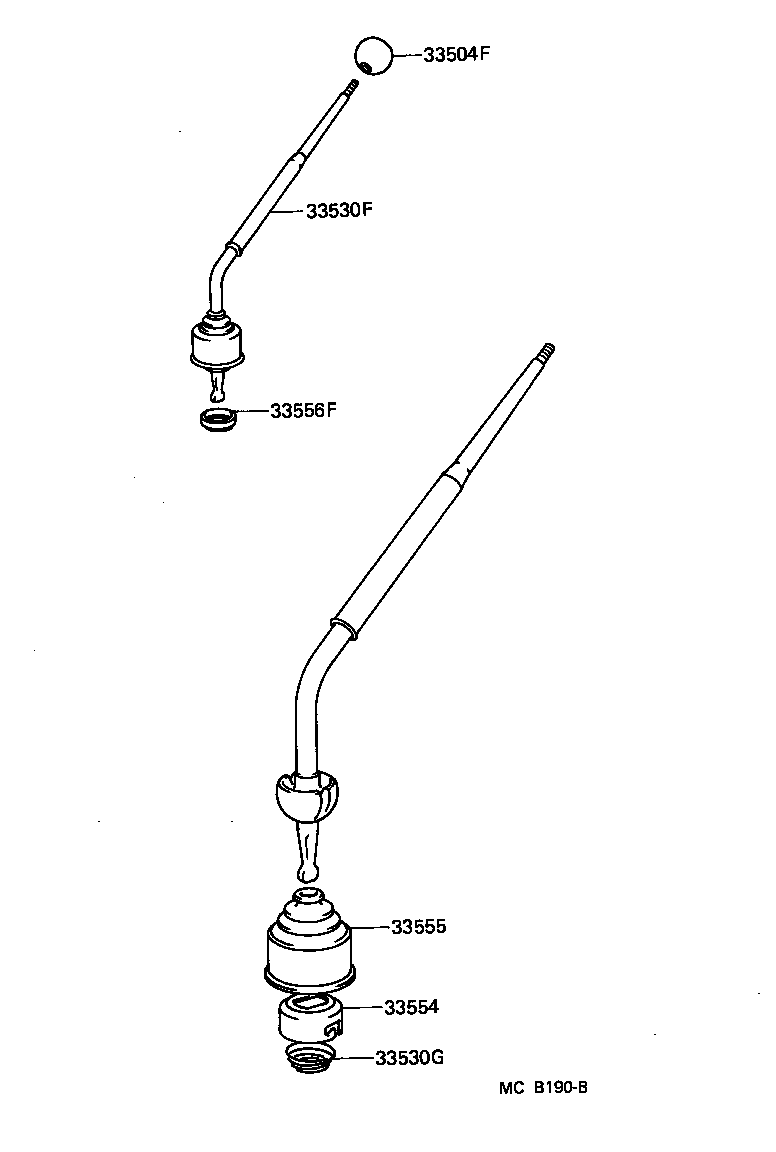

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-60030 |
BJ60,FJ60..CBU VINYL |
1 | ||
| 33504-60040 |
BJ60,FJ60..CBU VINYL |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33541-60110 |
BJ60,FJ60 |
1 | ||
| 33530-60050 |
BJ60,FJ60..CBU |
1 | ||
| 33530G - SPRING, CONICAL (FOR SHIFT LEVER) | ||||
| 90502-29001 |
BJ6#,FJ6#,HJ6#..MTM..CBU |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-60021 |
BJ6#,FJ6#,HJ6#..MTM |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-55011 |
BJ6#,FJ6#,HJ6#..MTM |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33505-60010 |
BJ6#,FJ6#,HJ60..MTM |
1 | ||
(8110- )4F

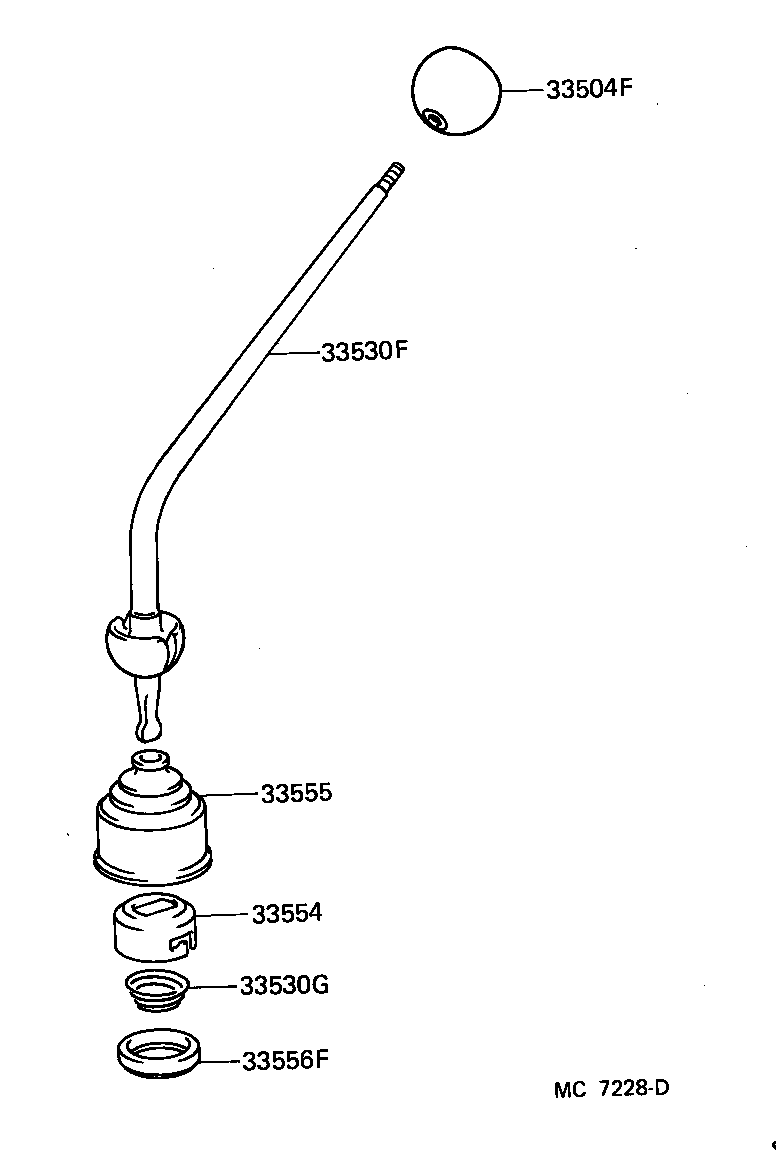

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-60030 |
BJ60,FJ60..CBU VINYL |
1 | ||
| 33504-60040 |
BJ60,FJ60..CBU VINYL |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33541-60110 |
BJ60,FJ60 |
1 | ||
| 33530-60050 |
BJ60,FJ60..CBU |
1 | ||
| 33530G - SPRING, CONICAL (FOR SHIFT LEVER) | ||||
| 90502-29001 |
BJ6#,FJ6#,HJ6#..MTM..CBU |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-60021 |
BJ6#,FJ6#,HJ6#..MTM |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-55011 |
BJ6#,FJ6#,HJ6#..MTM |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33505-60010 |
BJ6#,FJ6#,HJ60..MTM |
1 | ||
