FJ60V-KCQ (1980)

Toyota Land Cruiser Van

Production Aug 1980 - Oct 1982
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8411)2F

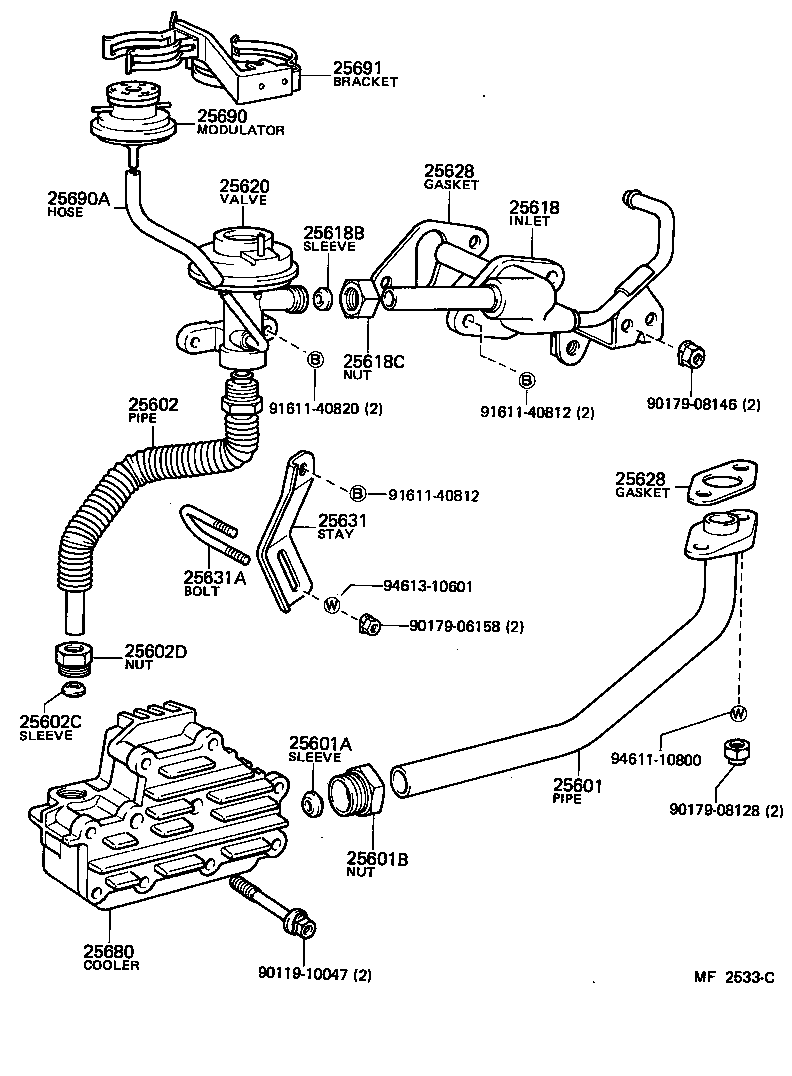

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25602 25602C 25602D 25618 25618B 25618C 25620 25628 25628 25631 25631A 25680 25690 25690A 25691 9011910047 9017906158 9017908128 9017908146 9161140812 9161140812 9161140820 9461110800 9461310601
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-61040

2F..FJ6#

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-25041

2F..FJ6#

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-33079

2F..FJ6#

 1
25602 - PIPE SUB-ASSY, EGR, NO.2
25602-61030

2F..FJ6#

 1
25602C - SLEEVE, BALL(FOR EGR PIPE, NO.2)
90410-18002

2F..FJ6#

 1
25602D - NUT, UNION(FOR EGR PIPE, NO.2)
90402-26072

2F..FJ6#

 1
25618 - INLET, EGR
25618-61011

2F..FJ6#

 1
25618B - SLEEVE, BALL(FOR EGR INLET)
90410-18002

2F,3F..FJ6#

 1
25618C - NUT, OLIVE E(FOR EGR INLET)
90402-26074

2F,3F..FJ6#

 1
25620 - VALVE ASSY, EGR
25620-61101

2F..FJ60

 1
25628 - GASKET, EGR INLET
25628-61031

2F..FJ6#

INTAKE MANIFOLD

 1
25628-61020

2F,3F..FJ6#

EXHAUST MANIFOLD

 1
25628 - GASKET, EGR INLET
25628-61031

2F..FJ6#

INTAKE MANIFOLD

 1
25628-61020

2F,3F..FJ6#

EXHAUST MANIFOLD

 1
25631 - STAY, EGR PIPE, NO.1
25631-61030

2F..FJ6#

 1
25631A - BOLT(FOR EGR PIPE CLAMP)
90117-06131

2F..FJ6#

 1
25680 - COOLER ASSY, EGR
25680-61030

2F..FJ6#

 1
25690 - MODULATOR ASSY, EGR VACUUM
25690-61011

2F,3F..FJ6#

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11014

2F,3F..FJ6#

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-61010

2F,3F..FJ6#

 1
Common parts
90119-10047
90179-06158
90179-08128
90179-08146
91611-40812
91611-40820
94611-10800
94613-10601
