FJ60V-KCQ (1980)
Toyota Land Cruiser Van
Production
Aug 1980
-
Oct 1982
Engine
2F
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8411)2F

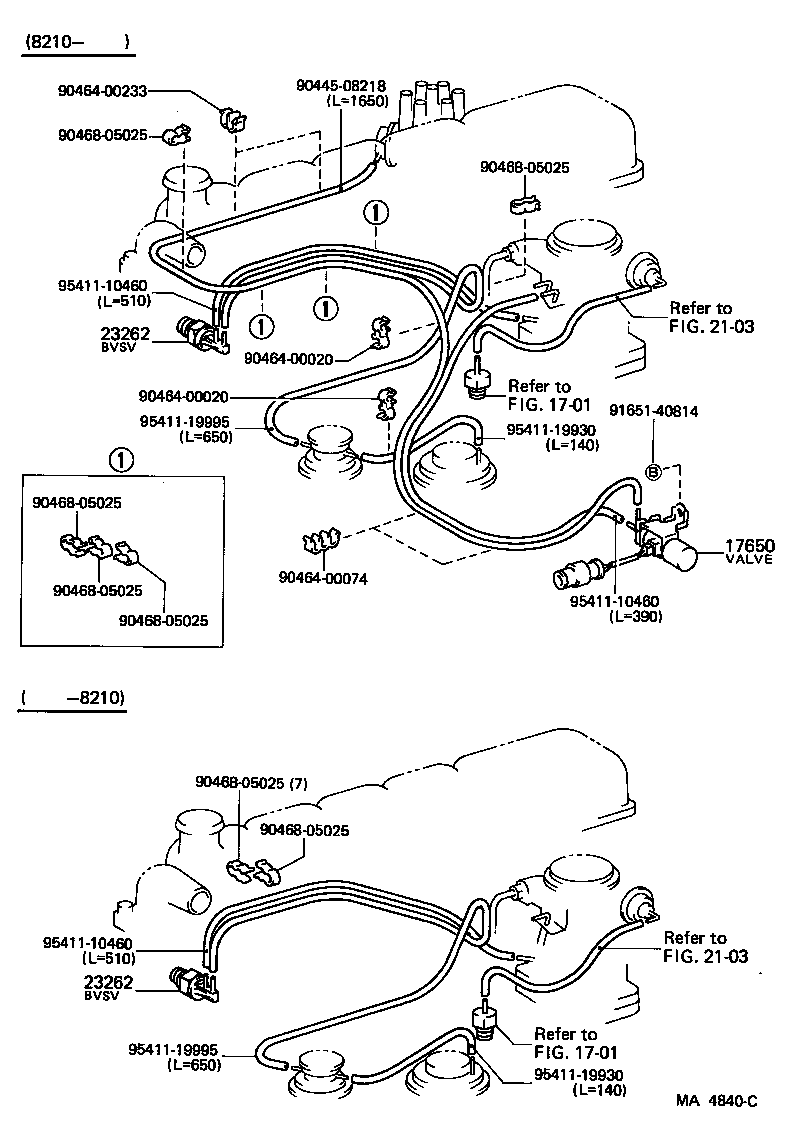

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05041 |
2F,3F..FJ6# |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05041 |
2F,3F..FJ6# |
1 | ||
| Common parts | ||||
| 90445-08218 | ||||
| 90464-00020 | ||||
| 90464-00074 | ||||
| 90464-00233 | ||||
| 90468-05025 | ||||
| 91651-40814 | ||||
| 95411-10460 | ||||
| 95411-19930 | ||||
| 95411-19995 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2103 | ||||
(8008- )2F,3F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95411-10030 | ||||
| 95411-10160 | ||||
| 95411-19995 | ||||
