FJ60V-KCQ (1980)

Toyota Land Cruiser Van

Production Aug 1980 - Oct 1982
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8209)2F

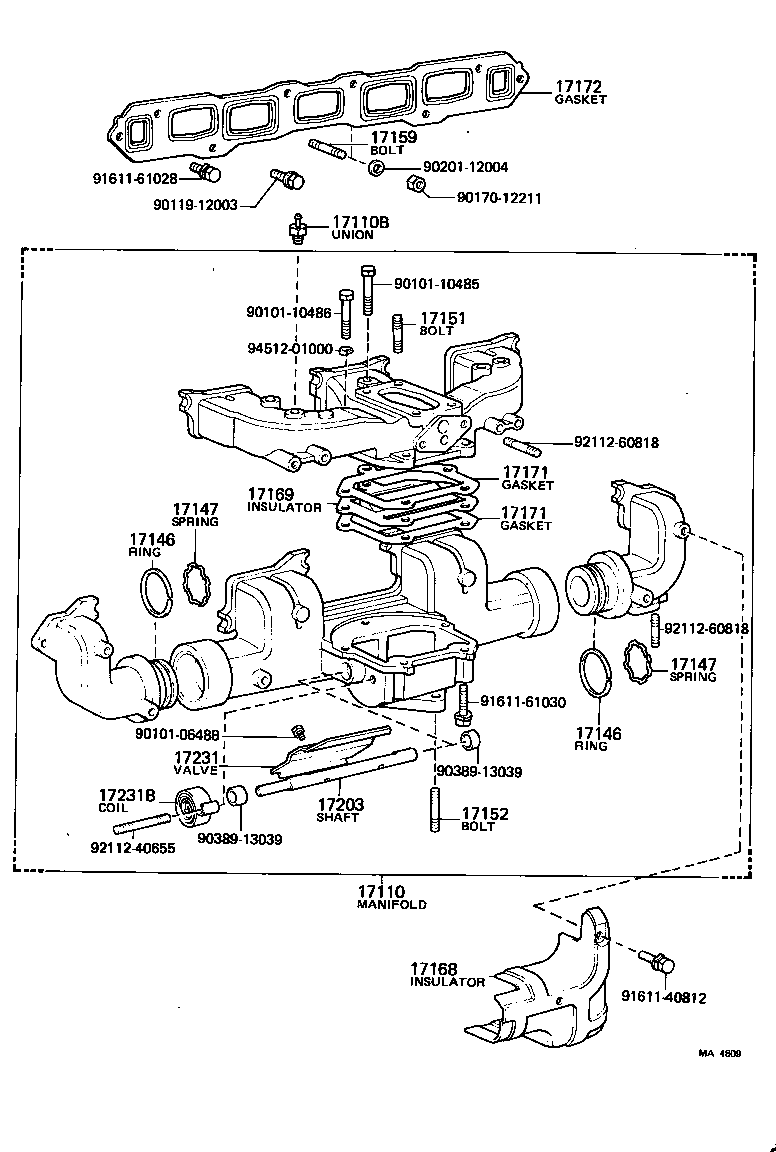

Click highlighted areas on diagram

diagram 17110 17110B 17146 17146 17147 17147 17151 17152 17159 17168 17169 17171 17171 17172 17203 17231 17231B 9010106488 9010110485 9010110486 9011912003 9017012211 9020112004 9038913039 9038913039 9161140812 9161161028 9161161030 9211240655 9211260818 9211260818 9451201000
Part # Description Qty Price
17110 - MANIFOLD ASSY
17100-61081

2F..FJ60

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-51010

2F..FJ6#

 1
17146 - RING, EXHAUST MANIFOLD
17151-61010

2F,3F..FJ6#

 4
17146 - RING, EXHAUST MANIFOLD
17151-61010

2F,3F..FJ6#

 4
17147 - SPRING, EXHAUST MANIFOLD
17152-61010

2F,3F..FJ6#

 4
17147 - SPRING, EXHAUST MANIFOLD
17152-61010

2F,3F..FJ6#

 4
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08042

2F,3F..FJ6#..CBU

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10299

2F..FJ6#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-12321

2F..FJ6#

 2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-61014

2F..FJ6#

 1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-61011

2F..FJ6#

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-61010

2F..FJ6#

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-61010

2F..FJ6#

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-61030

2F..FJ6#

 1
17203 - SHAFT SUB-ASSY, MANIFOLD HEAT CONTROL
17232-61013

2F..FJ60

 1
17231 - VALVE, MANIFOLD HEAT CONTROL
17231-61012

2F..FJ6#

 1
17231B - COIL, HEAT CONTROL VALVE
90510-08001

2F..FJ60

 1
Common parts
90101-06488
90101-10485
90101-10486
90119-12003
90170-12211
90201-12004
90389-13039
91611-40812
91611-61028
91611-61030
92112-40655
92112-60818
94512-01000
