FJ60V-KCHQ4 (1980)

Toyota Land Cruiser Van

Production Nov 1980 - Oct 1982
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8008-8608)

Click highlighted areas on diagram

diagram 04481 04482 48110A 48110A 48110B 48331 48331 48334 48411 48412 48414 48415 48475 48501 48502 48505 48505A 48506 48510 48510B 48510C 48510C 48510D 48510E 48510H 48510H 48510H 48510H 48520 9011912088 9017014011 9017914023 9020115012 9020115012 9020115012 9161140822 9161540825 9161640832 9161961225 9411041000 9411551400 9412041000 9418461000
Part # Description Qty Price
04481 - SHACKLE KIT, FRONT SPRING
04481-60020

BJ6#,FJ6#,HJ6#

 2
04482 - PIN KIT, FRONT SPRING
04482-60040

BJ6#,FJ6#,HJ6#

 2
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90389-18002

BJ6#,FJ6#,HJ6#

 8
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90389-18002

BJ6#,FJ6#,HJ6#

 8
48110B - BUSH(FOR FRONT SPRING PIN)
90389-18002

BJ6#,FJ6#,HJ6#

 4
48331 - BUMPER, FRONT SPRING, NO.1
48304-60030

BJ60,FJ60

 2
48331 - BUMPER, FRONT SPRING, NO.1
48304-60030

BJ60,FJ60

 2
48334 - PLATE, BUMPER, FRONT
48334-60010

BJ60,FJ60

 1
48411 - BRACKET, FRONT SPRING(FOR FRONT RH)
48401-60020

BJ6#,FJ6#,HJ6#

 1
48412 - BRACKET, FRONT SPRING(FOR FRONT LH)
48401-60020

BJ6#,FJ6#,HJ6#

 1
48414 - BRACKET, FRONT SPRING(FOR REAR RH)
48413-60030

BJ6#,FJ6#,HJ60

 1
48415 - BRACKET, FRONT SPRING(FOR REAR LH)
48413-60030

BJ6#,FJ6#,HJ60

 1
48475 - PLATE, DISTANCE(FOR FRONT)
48475-60020

BJ6#,FJ6#,HJ6#

 1
48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH
48512-60030

BJ6#,FJ6#,HJ6#

 1
48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH
48512-60030

BJ6#,FJ6#,HJ6#

 1
48505 - SEAT, FRONT SPRING, RH
48048-60020

BJ6#,FJ6#,HJ6#

 1
48505A - BOLT, U(FOR FRONT SPRING)
90118-14189

BJ6#,FJ6#..VKC

L=205,W/DISTANCE PLATE

 2
90118-14187

BJ6#,FJ6#..VKC

L=195

 4
48506 - SEAT, FRONT SPRING, LH
48049-60020

BJ6#,FJ6#,HJ6#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-69055

BJ6#,FJ6#..VKC

 1
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02017

BJ6#,FJ6#,HJ6#

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

BJ6#,FJ6#,HJ6#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

BJ6#,FJ6#,HJ6#

 4
48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
90948-03015

BJ6#,FJ6#,HJ60

 2
48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
90948-03011

BJ6#,FJ6#,HJ6#

 2
48510H - BUSH(FOR FRONT SHOCK ABSORBER)
90385-19057

BJ6#,FJ6#,HJ6#

LWR

 4
90948-01003

BJ6#,FJ6#,HJ6#

UPR

 4
48510H - BUSH(FOR FRONT SHOCK ABSORBER)
90385-19057

BJ6#,FJ6#,HJ6#

LWR

 4
90948-01003

BJ6#,FJ6#,HJ6#

UPR

 4
48510H - BUSH(FOR FRONT SHOCK ABSORBER)
90385-19057

BJ6#,FJ6#,HJ6#

LWR

 4
90948-01003

BJ6#,FJ6#,HJ6#

UPR

 4
48510H - BUSH(FOR FRONT SHOCK ABSORBER)
90385-19057

BJ6#,FJ6#,HJ6#

LWR

 4
90948-01003

BJ6#,FJ6#,HJ6#

UPR

 4
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-69055

BJ6#,FJ6#..VKC

 1
Common parts
90119-12088
90170-14011
90179-14023
90201-15012
91611-40822
91615-40825
91616-40832
91619-61225
94110-41000
94115-51400
94120-41000
94184-61000

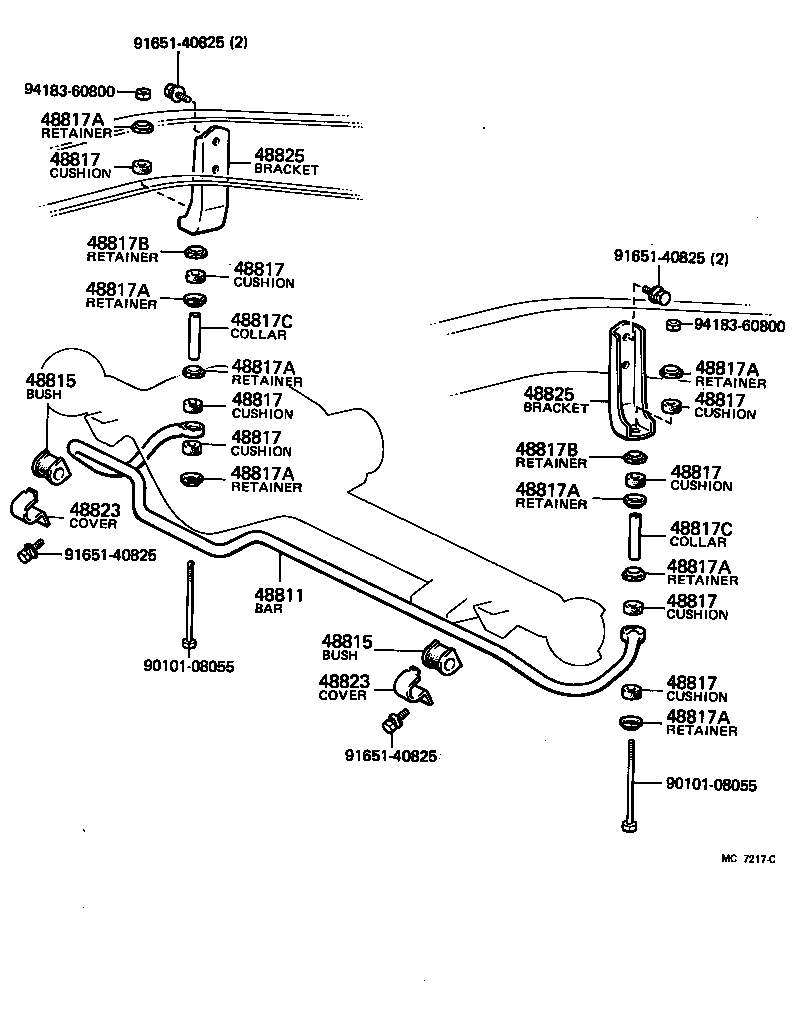

ILLUST NO. 1 OF 3(8110- )IV4 ; (8110- )HJ60 ; (8110- )BJ6#,HJ61..VLS ; (8608- )FJ62..CBU

Click highlighted areas on diagram

diagram 48811 48815 48815 48817 48817 48817 48817 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817A 48817A 48817A 48817B 48817B 48817C 48817C 48823 48823 48825 48825 9010108055 9010108055 9165140825 9165140825 9165140825 9165140825 9418360800 9418360800
Part # Description Qty Price
Common parts
90101-08055
91651-40825
94183-60800

ILLUST NO. 3 OF 3(8008-8411)

Click highlighted areas on diagram

diagram 48110 48110 48111 48111 48112 48112 48113 48113 48114 48114 48115 48115 48116 48120 48120 48141 48141 48142 48142 48143 48147 48147 9411041000 9411041000 9511100812 9511100812 9511100814 9511100816
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-60160

BJ6#,FJ6#..VKC

 1
48110 - SPRING ASSY, FRONT, RH
48110-60160

BJ6#,FJ6#..VKC

 1
48111 - LEAF, FRONT SPRING, NO.1
48111-60160

BJ6#,FJ6#..VKC

 2
48111 - LEAF, FRONT SPRING, NO.1
48111-60160

BJ6#,FJ6#..VKC

 2
48112 - LEAF, FRONT SPRING, NO.2
48112-60160

BJ6#,FJ6#..VKC

 2
48112 - LEAF, FRONT SPRING, NO.2
48112-60160

BJ6#,FJ6#..VKC

 2
48113 - LEAF, FRONT SPRING, NO.3
48102-60160

BJ6#,FJ6#..VKC

 2
48113 - LEAF, FRONT SPRING, NO.3
48102-60160

BJ6#,FJ6#..VKC

 2
48114 - LEAF, FRONT SPRING, NO.4
48114-60160

BJ6#,FJ6#..VKC

 2
48114 - LEAF, FRONT SPRING, NO.4
48114-60160

BJ6#,FJ6#..VKC

 2
48115 - LEAF, FRONT SPRING, NO.5
48103-60160

BJ6#,FJ6#..VKC

 2
48115 - LEAF, FRONT SPRING, NO.5
48103-60160

BJ6#,FJ6#..VKC

 2
48116 - LEAF, FRONT SPRING, NO.6
48116-60210

BJ60,FJ60

W/WINCH

 2
48116-60160

BJ6#,FJ6#..VKC

 2
48120 - SPRING ASSY, FRONT, LH
48110-60160

BJ6#,FJ6#..VKC

 1
48120 - SPRING ASSY, FRONT, LH
48110-60160

BJ6#,FJ6#..VKC

 1
48141 - CLIP, FRONT SPRING, NO.1
48141-35021

BJ6#,FJ6#..VKC

 4
48141 - CLIP, FRONT SPRING, NO.1
48141-35021

BJ6#,FJ6#..VKC

 4
48142 - CLIP, FRONT SPRING, NO.2
48142-60121

BJ6#,FJ6#..VKC

 2
48142 - CLIP, FRONT SPRING, NO.2
48142-60121

BJ6#,FJ6#..VKC

 2
48147 - BOLT, FRONT SPRING, CENTER
48247-25160

BJ6#,FJ6#..VKC

 2
48147 - BOLT, FRONT SPRING, CENTER
48247-25160

BJ6#,FJ6#..VKC

 2
Common parts
94110-41000
95111-00812
95111-00814
95111-00816
