FJ56V-KQ (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7902-8007)2F

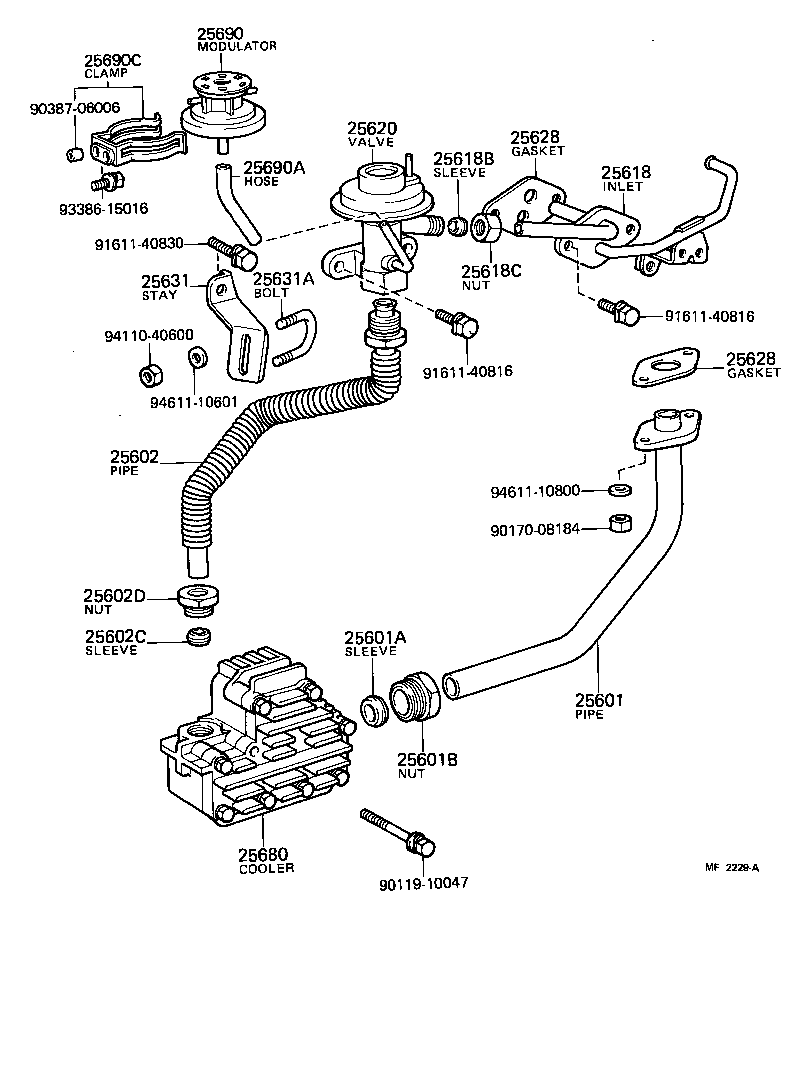

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25602 25602C 25602D 25618 25618B 25618C 25620 25628 25628 25631 25631A 25680 25690 25690A 25690C 9011910047 9017008184 9038706006 9161140816 9161140816 9161140830 9338615016 9411040600 9461110601 9461110800
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-61040

2F..FJ56

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-25041

2F..FJ56

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-33079

2F..FJ56

 1
25602 - PIPE SUB-ASSY, EGR, NO.2
25602-61030

2F..FJ56

 1
25602C - SLEEVE, BALL(FOR EGR PIPE, NO.2)
90410-18038

2F..FJ56

 1
25602D - NUT, UNION(FOR EGR PIPE, NO.2)
90402-26072

2F..FJ56

 1
25618 - INLET, EGR
25618-61010

2F..FJ56

 1
25618B - SLEEVE, BALL(FOR EGR INLET)
90410-12042

2F..FJ56

 1
25618C - NUT, OLIVE E(FOR EGR INLET)
96315-12009

2F..FJ56

 1
25620 - VALVE ASSY, EGR
25620-61100

2F..FJ56

 1
25628 - GASKET, EGR INLET
25628-61020

2F..FJ56

FOR EGR PIPE

 1
25628-61030

2F..FJ56

FOR EGR INLET

 1
25628 - GASKET, EGR INLET
25628-61020

2F..FJ56

FOR EGR PIPE

 1
25628-61030

2F..FJ56

FOR EGR INLET

 1
25631 - STAY, EGR PIPE, NO.1
25631-61030

2F..FJ56

 1
25631A - BOLT(FOR EGR PIPE CLAMP)
90117-06131

2F..FJ56

 1
25680 - COOLER ASSY, EGR
25680-61030

2F..FJ56

 1
25690 - MODULATOR ASSY, EGR VACUUM
25690-61010

2F..FJ56

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11049

2F..FJ56

 1
25690C - CLAMP(FOR EGR VACUUM MODULATOR)
90461-10448

2F..FJ56

 1
Common parts
90119-10047
90170-08184
90387-06006
91611-40816
91611-40830
93386-15016
94110-40600
94611-10601
94611-10800
