FJ56V-KCQ (1979)
Toyota Land Cruiser Van
ILLUST NO. 2 OF 2(6903-8007)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60021 |
BJ4#,FJ4#,5# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60060 |
FJ56 R=37:10=3.700,L.S.D. |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-35010 |
BJ4#,FJ4#,5# |
4 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97619-30308 |
BJ4#,FJ4#,5# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97619-30306 |
BJ4#,FJ4#,5# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90560-30185 |
BJ4#,FJ4#,5# 厚さ=2.77−2.79,T=2.77-2.79 |
1 | ||
| 90560-30190 |
BJ4#,FJ4#,5# 厚さ=2.89−2.91,T=2.89-2.91 |
1 | ||
| 90560-30187 |
BJ4#,FJ4#,5# 厚さ=2.83−2.85,T=2.83-2.85 |
1 | ||
| 90560-30199 |
BJ4#,FJ4#,5# 厚さ=2.98−3.00,T=2.98-3.00 |
1 | ||
| 90560-30192 |
BJ4#,FJ4#,5# 厚さ=2.95−2.97,T=2.95-2.97 |
1 | ||
| 90560-30188 |
BJ4#,FJ4#,5# 厚さ=2.86−2.88,T=2.86-2.88 |
1 | ||
| 90560-30186 |
BJ4#,FJ4#,5# 厚さ=2.80−2.82,T=2.80-2.82 |
1 | ||
| 90560-30184 |
BJ4#,FJ4#,5# 厚さ=2.74−2.76,T=2.74-2.76 |
1 | ||
| 90560-30191 |
BJ4#,FJ4#,5# 厚さ=2.92−2.94,T=2.92-2.94 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-30035 |
BJ4#,FJ4#,5# 厚さ=0.25 |
4 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-70101 |
BJ4#,FJ4#,5# T=0.25 |
2 | ||
| 90564-70103 |
BJ4#,FJ4#,5# T=0.35 |
2 | ||
| 90564-70102 |
BJ4#,FJ4#,5# T=0.30 |
2 | ||
| 90564-70121 |
BJ4#,FJ4#,5# T=0.40 |
2 | ||
| 90564-70104 |
BJ4#,FJ4#,5# T=0.45 |
2 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30010 |
BJ4#,FJ4#,5# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-30010 |
BJ4#,FJ4#,5# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45001 |
BJ4#,FJ4#,5# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45001 |
BJ4#,FJ4#,5# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60010 |
BJ4#,FJ56 FOR L.S.D. |
1 | ||
| 41311-36010 |
BJ4#,FJ4#,5# R=37:9,37:10 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ4#,FJ4#,5# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ4#,FJ4#,5# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
BJ4#,FJ4#,5# |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60010 |
BJ4#,FJ56 N=16,FOR L.S.D. |
2 | ||
| 41331-35020 |
BJ4#,FJ4#,5# N=16 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60010 |
BJ4#,FJ56 N=16,FOR L.S.D. |
2 | ||
| 41331-35020 |
BJ4#,FJ4#,5# N=16 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-60010 |
BJ4#,FJ56 N=10,FOR L.S.D. |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-60010 |
BJ4#,FJ56 N=10,FOR L.S.D. |
4 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-55010 |
BJ4#,FJ4#,5# |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-55010 |
BJ4#,FJ4#,5# |
1 | ||
| 41344 - SPACER, DIFFERENTIAL PINION SHAFT | ||||
| 41344-35010 |
BJ4#,FJ4#,5# T=29.775-29.800 |
1 | ||
| 41345-35010 |
BJ4#,FJ4#,5# T=30.175-30.200 |
1 | ||
| 41346-35010 |
BJ4#,FJ4#,5# T=30.575-30.600 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35010 |
BJ4#,FJ4#,5# |
2 | ||
| 41351-60010 |
BJ4#,FJ56 FOR L.S.D. |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35010 |
BJ4#,FJ4#,5# |
2 | ||
| 41351-60010 |
BJ4#,FJ56 FOR L.S.D. |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35010 |
BJ4#,FJ4#,5# T=1.55-1.65 |
2 | ||
| 41361-60070 |
BJ4#,FJ56 MARK B,FOR L.S.D. |
2 | ||
| 41361-60090 |
BJ4#,FJ56 MARK D,FOR L.S.D. |
2 | ||
| 41361-60120 |
BJ4#,FJ56 MARK G,FOR L.S.D. |
2 | ||
| 41361-60130 |
BJ4#,FJ56 MARK H,FOR L.S.D. |
2 | ||
| 41361-60060 |
BJ4#,FJ56 MARK A,FOR L.S.D. |
2 | ||
| 41361-60100 |
BJ4#,FJ56 MARK E,FOR L.S.D. |
2 | ||
| 41361-60170 |
BJ4#,FJ56 MARK M,FOR L.S.D. |
2 | ||
| 41361-60140 |
BJ4#,FJ56 MARK J,FOR L.S.D. |
2 | ||
| 41361-60110 |
BJ4#,FJ56 MARK F,FOR L.S.D. |
2 | ||
| 41361-60160 |
BJ4#,FJ56 MARK L,FOR L.S.D. |
2 | ||
| 41361-60080 |
BJ4#,FJ56 MARK C,FOR L.S.D. |
2 | ||
| 41361-60150 |
BJ4#,FJ56 MARK K,FOR L.S.D. |
2 | ||
| 41361-60180 |
BJ4#,FJ56 MARK N,FOR L.S.D. |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35010 |
BJ4#,FJ4#,5# T=1.55-1.65 |
2 | ||
| 41361-60070 |
BJ4#,FJ56 MARK B,FOR L.S.D. |
2 | ||
| 41361-60090 |
BJ4#,FJ56 MARK D,FOR L.S.D. |
2 | ||
| 41361-60120 |
BJ4#,FJ56 MARK G,FOR L.S.D. |
2 | ||
| 41361-60130 |
BJ4#,FJ56 MARK H,FOR L.S.D. |
2 | ||
| 41361-60060 |
BJ4#,FJ56 MARK A,FOR L.S.D. |
2 | ||
| 41361-60100 |
BJ4#,FJ56 MARK E,FOR L.S.D. |
2 | ||
| 41361-60170 |
BJ4#,FJ56 MARK M,FOR L.S.D. |
2 | ||
| 41361-60140 |
BJ4#,FJ56 MARK J,FOR L.S.D. |
2 | ||
| 41361-60110 |
BJ4#,FJ56 MARK F,FOR L.S.D. |
2 | ||
| 41361-60160 |
BJ4#,FJ56 MARK L,FOR L.S.D. |
2 | ||
| 41361-60080 |
BJ4#,FJ56 MARK C,FOR L.S.D. |
2 | ||
| 41361-60150 |
BJ4#,FJ56 MARK K,FOR L.S.D. |
2 | ||
| 41361-60180 |
BJ4#,FJ56 MARK N,FOR L.S.D. |
2 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91111-40816 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| 95381-04030 | ||||

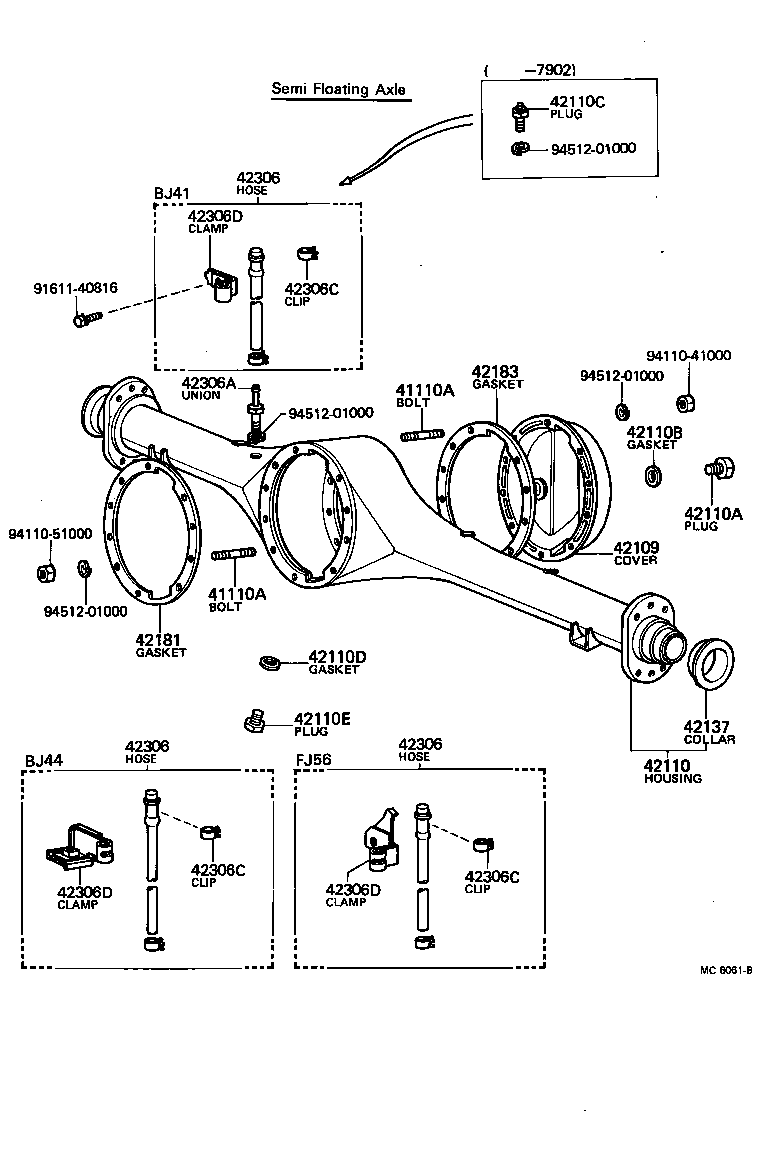

ILLUST NO. 1 OF 2(6903-8007)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10107 |
BJ4#,FJ4#,5# 長さ=32,ﾈｼﾞ部長さ12&20,ｶﾊﾞｰ,L=32,S=12&20,FOR COVER |
10 | ||
| 90116-10104 |
BJ4#,FJ4#,5# 長さ=50,ﾈｼﾞ部長さ=12 & 18,L=50,S=12&18,FOR CARRIER |
2 | ||
| 90116-10103 |
BJ4#,FJ4#,5# 長さ=37,ﾈｼﾞ部長さ=12 & 25,L=37,S=12&25,FOR CARRIER |
8 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10107 |
BJ4#,FJ4#,5# 長さ=32,ﾈｼﾞ部長さ12&20,ｶﾊﾞｰ,L=32,S=12&20,FOR COVER |
10 | ||
| 90116-10104 |
BJ4#,FJ4#,5# 長さ=50,ﾈｼﾞ部長さ=12 & 18,L=50,S=12&18,FOR CARRIER |
2 | ||
| 90116-10103 |
BJ4#,FJ4#,5# 長さ=37,ﾈｼﾞ部長さ=12 & 25,L=37,S=12&25,FOR CARRIER |
8 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60112 |
FJ56 FOR FULL FLOATING AXLE |
1 | ||
| 42110-60043 |
FJ56 FOR SEMI FLOATING AXLE |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
BJ4#,FJ4#,5# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03023 |
BJ4#,FJ4#,5# 10-1.25PX30-14 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
BJ4#,FJ4#,5# |
1 | ||
| 42137 - COLLAR, REAR AXLE HOUSING SIDE | ||||
| 42137-55010 |
BJ4#,FJ4#,5# |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-36010 |
BJ4#,FJ4#,5# |
1 | ||
| 42183 - GASKET, REAR AXLE HOUSING COVER | ||||
| 42183-35010 |
BJ4#,FJ4#,5# |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60070 |
FJ56 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60070 |
FJ56 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60070 |
FJ56 |
1 | ||
| 42306A - UNION (FOR REAR AXLE BREATHER HOUSE) | ||||
| 90404-10013 |
BJ4#,FJ56 |
1 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ56 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ56 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ56 |
2 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10389 |
FJ56 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10389 |
FJ56 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10389 |
FJ56 |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||

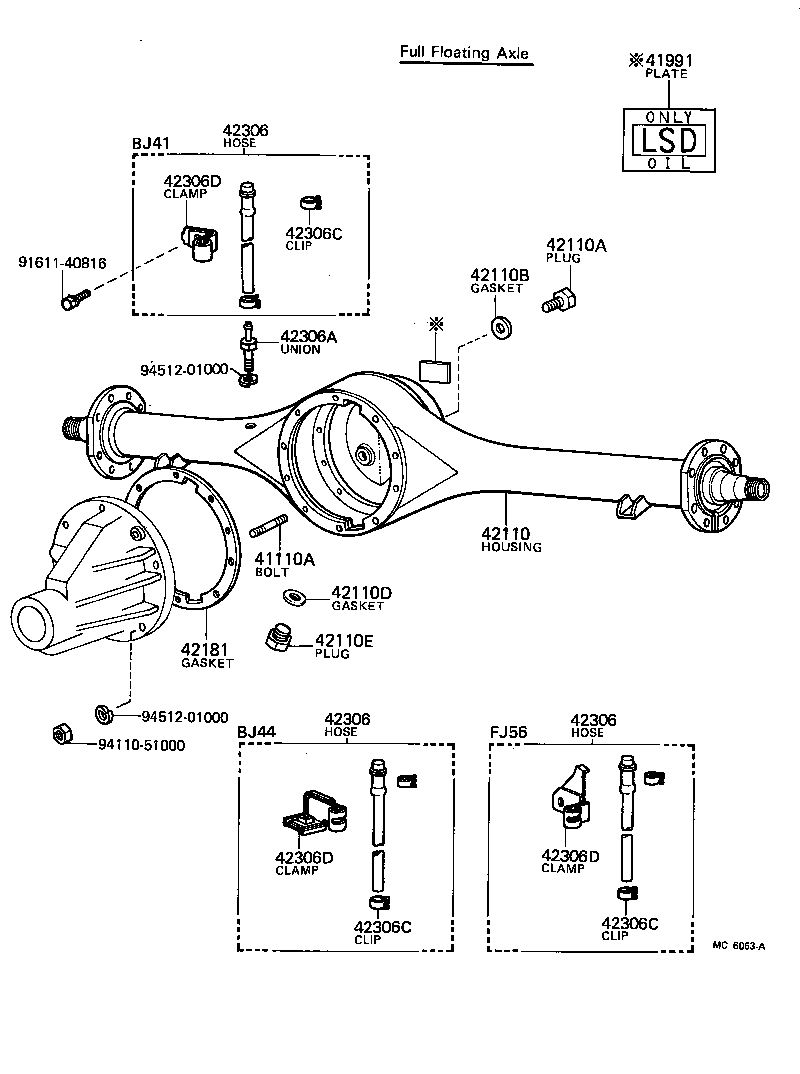

ILLUST NO. 1 OF 2(7909-8007)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10107 |
BJ4#,FJ4#,5# 長さ=32,ﾈｼﾞ部長さ12&20,ｶﾊﾞｰ,L=32,S=12&20,FOR COVER |
10 | ||
| 90116-10104 |
BJ4#,FJ4#,5# 長さ=50,ﾈｼﾞ部長さ=12 & 18,L=50,S=12&18,FOR CARRIER |
2 | ||
| 90116-10103 |
BJ4#,FJ4#,5# 長さ=37,ﾈｼﾞ部長さ=12 & 25,L=37,S=12&25,FOR CARRIER |
8 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-60010 |
BJ4#,FJ56 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60112 |
FJ56 FOR FULL FLOATING AXLE |
1 | ||
| 42110-60043 |
FJ56 FOR SEMI FLOATING AXLE |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
BJ4#,FJ4#,5# |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
BJ4#,FJ4#,5# |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-36010 |
BJ4#,FJ4#,5# |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60070 |
FJ56 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60070 |
FJ56 |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60070 |
FJ56 |
1 | ||
| 42306A - UNION (FOR REAR AXLE BREATHER HOUSE) | ||||
| 90404-10013 |
BJ4#,FJ56 |
1 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ56 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ56 |
2 | ||
| 42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE) | ||||
| 96132-30600 |
BJ4#,FJ56 |
2 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10389 |
FJ56 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10389 |
FJ56 |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90461-10389 |
FJ56 |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
ILLUST NO. 2 OF 2(7909-8007)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60021 |
BJ4#,FJ4#,5# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60060 |
FJ56 R=37:10=3.700,L.S.D. |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-35010 |
BJ4#,FJ4#,5# |
4 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97619-30308 |
BJ4#,FJ4#,5# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97619-30306 |
BJ4#,FJ4#,5# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90560-30185 |
BJ4#,FJ4#,5# 厚さ=2.77−2.79,T=2.77-2.79 |
1 | ||
| 90560-30190 |
BJ4#,FJ4#,5# 厚さ=2.89−2.91,T=2.89-2.91 |
1 | ||
| 90560-30187 |
BJ4#,FJ4#,5# 厚さ=2.83−2.85,T=2.83-2.85 |
1 | ||
| 90560-30199 |
BJ4#,FJ4#,5# 厚さ=2.98−3.00,T=2.98-3.00 |
1 | ||
| 90560-30192 |
BJ4#,FJ4#,5# 厚さ=2.95−2.97,T=2.95-2.97 |
1 | ||
| 90560-30188 |
BJ4#,FJ4#,5# 厚さ=2.86−2.88,T=2.86-2.88 |
1 | ||
| 90560-30186 |
BJ4#,FJ4#,5# 厚さ=2.80−2.82,T=2.80-2.82 |
1 | ||
| 90560-30184 |
BJ4#,FJ4#,5# 厚さ=2.74−2.76,T=2.74-2.76 |
1 | ||
| 90560-30191 |
BJ4#,FJ4#,5# 厚さ=2.92−2.94,T=2.92-2.94 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-30035 |
BJ4#,FJ4#,5# 厚さ=0.25 |
4 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-70101 |
BJ4#,FJ4#,5# T=0.25 |
2 | ||
| 90564-70103 |
BJ4#,FJ4#,5# T=0.35 |
2 | ||
| 90564-70102 |
BJ4#,FJ4#,5# T=0.30 |
2 | ||
| 90564-70121 |
BJ4#,FJ4#,5# T=0.40 |
2 | ||
| 90564-70104 |
BJ4#,FJ4#,5# T=0.45 |
2 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30010 |
BJ4#,FJ4#,5# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-30010 |
BJ4#,FJ4#,5# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45001 |
BJ4#,FJ4#,5# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45001 |
BJ4#,FJ4#,5# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60010 |
BJ4#,FJ56 FOR L.S.D. |
1 | ||
| 41311-36010 |
BJ4#,FJ4#,5# R=37:9,37:10 |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10021 |
BJ4#,FJ56 FOR L.S.D. |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ4#,FJ4#,5# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
BJ4#,FJ4#,5# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
BJ4#,FJ4#,5# |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60010 |
BJ4#,FJ56 N=16,FOR L.S.D. |
2 | ||
| 41331-35020 |
BJ4#,FJ4#,5# N=16 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-60010 |
BJ4#,FJ56 N=16,FOR L.S.D. |
2 | ||
| 41331-35020 |
BJ4#,FJ4#,5# N=16 |
2 | ||
| 41331A - SPRING, COMPRESSION | ||||
| 90501-85001 |
BJ4#,FJ56 CW=3.5,WD=8.5,FOR L.S.D. |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-60010 |
BJ4#,FJ56 N=10,FOR L.S.D. |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-60010 |
BJ4#,FJ56 N=10,FOR L.S.D. |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35010 |
BJ4#,FJ4#,5# |
2 | ||
| 41351-60010 |
BJ4#,FJ56 FOR L.S.D. |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35010 |
BJ4#,FJ4#,5# |
2 | ||
| 41351-60010 |
BJ4#,FJ56 FOR L.S.D. |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35010 |
BJ4#,FJ4#,5# T=1.55-1.65 |
2 | ||
| 41361-60070 |
BJ4#,FJ56 MARK B,FOR L.S.D. |
2 | ||
| 41361-60090 |
BJ4#,FJ56 MARK D,FOR L.S.D. |
2 | ||
| 41361-60120 |
BJ4#,FJ56 MARK G,FOR L.S.D. |
2 | ||
| 41361-60130 |
BJ4#,FJ56 MARK H,FOR L.S.D. |
2 | ||
| 41361-60060 |
BJ4#,FJ56 MARK A,FOR L.S.D. |
2 | ||
| 41361-60100 |
BJ4#,FJ56 MARK E,FOR L.S.D. |
2 | ||
| 41361-60170 |
BJ4#,FJ56 MARK M,FOR L.S.D. |
2 | ||
| 41361-60140 |
BJ4#,FJ56 MARK J,FOR L.S.D. |
2 | ||
| 41361-60110 |
BJ4#,FJ56 MARK F,FOR L.S.D. |
2 | ||
| 41361-60160 |
BJ4#,FJ56 MARK L,FOR L.S.D. |
2 | ||
| 41361-60080 |
BJ4#,FJ56 MARK C,FOR L.S.D. |
2 | ||
| 41361-60150 |
BJ4#,FJ56 MARK K,FOR L.S.D. |
2 | ||
| 41361-60180 |
BJ4#,FJ56 MARK N,FOR L.S.D. |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35010 |
BJ4#,FJ4#,5# T=1.55-1.65 |
2 | ||
| 41361-60070 |
BJ4#,FJ56 MARK B,FOR L.S.D. |
2 | ||
| 41361-60090 |
BJ4#,FJ56 MARK D,FOR L.S.D. |
2 | ||
| 41361-60120 |
BJ4#,FJ56 MARK G,FOR L.S.D. |
2 | ||
| 41361-60130 |
BJ4#,FJ56 MARK H,FOR L.S.D. |
2 | ||
| 41361-60060 |
BJ4#,FJ56 MARK A,FOR L.S.D. |
2 | ||
| 41361-60100 |
BJ4#,FJ56 MARK E,FOR L.S.D. |
2 | ||
| 41361-60170 |
BJ4#,FJ56 MARK M,FOR L.S.D. |
2 | ||
| 41361-60140 |
BJ4#,FJ56 MARK J,FOR L.S.D. |
2 | ||
| 41361-60110 |
BJ4#,FJ56 MARK F,FOR L.S.D. |
2 | ||
| 41361-60160 |
BJ4#,FJ56 MARK L,FOR L.S.D. |
2 | ||
| 41361-60080 |
BJ4#,FJ56 MARK C,FOR L.S.D. |
2 | ||
| 41361-60150 |
BJ4#,FJ56 MARK K,FOR L.S.D. |
2 | ||
| 41361-60180 |
BJ4#,FJ56 MARK N,FOR L.S.D. |
2 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-60050 |
BJ4#,FJ56 FOR L.S.D. |
6 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-60050 |
BJ4#,FJ56 FOR L.S.D. |
6 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-60050 |
BJ4#,FJ56 FOR L.S.D. |
6 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-60010 |
BJ4#,FJ56 FOR L.S.D. |
1 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-60010 |
BJ4#,FJ56 FOR L.S.D. |
6 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-60010 |
BJ4#,FJ56 FOR L.S.D. |
6 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-60010 |
BJ4#,FJ56 FOR L.S.D. |
6 | ||
| 41387 - RETAINER, SPRING, RH | ||||
| 41387-60010 |
BJ4#,FJ56 FOR L.S.D. |
1 | ||
| 41388 - RETAINER, SPRING, LH | ||||
| 41388-60010 |
BJ4#,FJ56 FOR L.S.D. |
1 | ||
| 41388A - PIN, STRAIGHT (FOR SPRING RETAINER, LH) | ||||
| 90250-04007 |
BJ4#,FJ56 FOR L.S.D. |
1 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
