FJ56V-KCQ (1979)

Toyota Land Cruiser Van

Production Feb 1979 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7902-8007)2F

Click highlighted areas on diagram

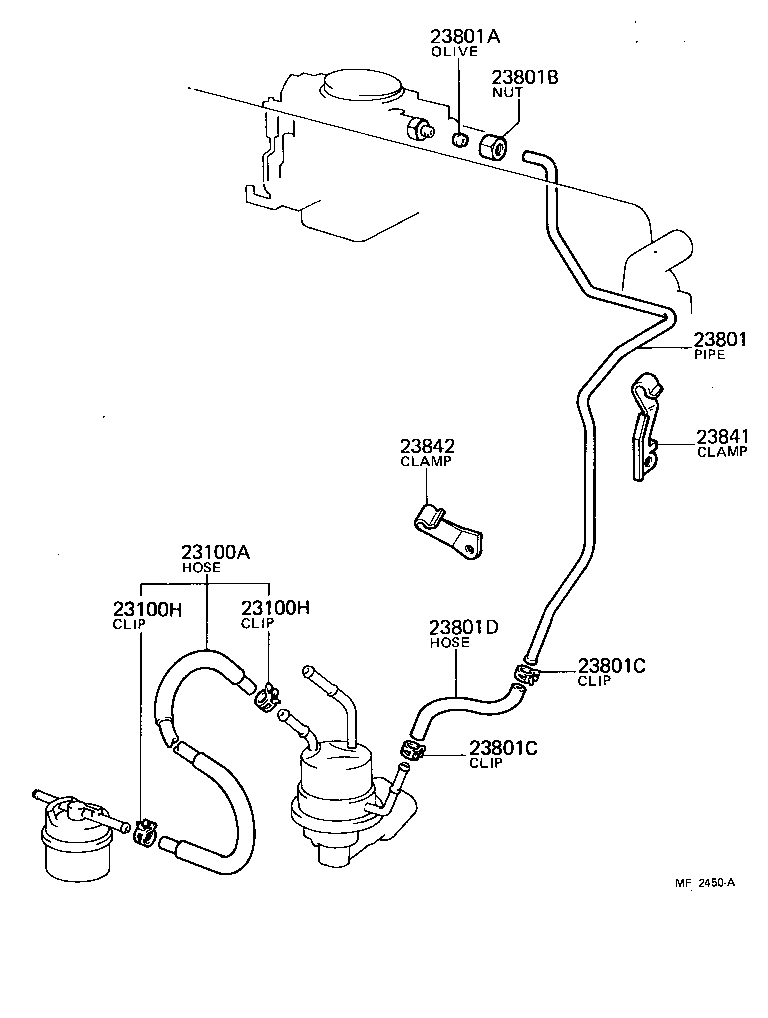

diagram 23100A 23100H 23100H 23801 23801A 23801B 23801C 23801C 23801D 23841 23842
Part # Description Qty Price
23100A - HOSE, FUEL
23820-61040

2F..FJ56

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-61030

2F..FJ56

 1
23811-61031

2F..FJ56

 1
23801A - OLIVE(FOR FUEL PIPE)
96395-71400

F,2F..FJ4#,5#

 4
23801B - NUT, UNION(FOR FUEL PIPE)
90402-13041

F,2F..FJ4#,5#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

2F..FJ56

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

2F..FJ56

 2
23801D - HOSE, FUEL PIPE, NO.1
95332-08020

2F..FJ56

*H,L=140,内径=7.6

 1
95332-08014

2F..FJ56

*H,L=140,内径=7.6

 1
95332-08020

2F..FJ56

*H,L=130,内径=7.6

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-61020

2F..FJ56

 1
23841-61021

2F..FJ56

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23842-61031

2F..FJ56

 1
23842-61030

2F..FJ56

 1
