FJ56V-KC (1975)

Toyota Land Cruiser Van

Production Jan 1975 - Feb 1979
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7501-7509)V ; (7501-7509)V ; (7509-8007)BJ4# ;(7509-8007)BJ4#

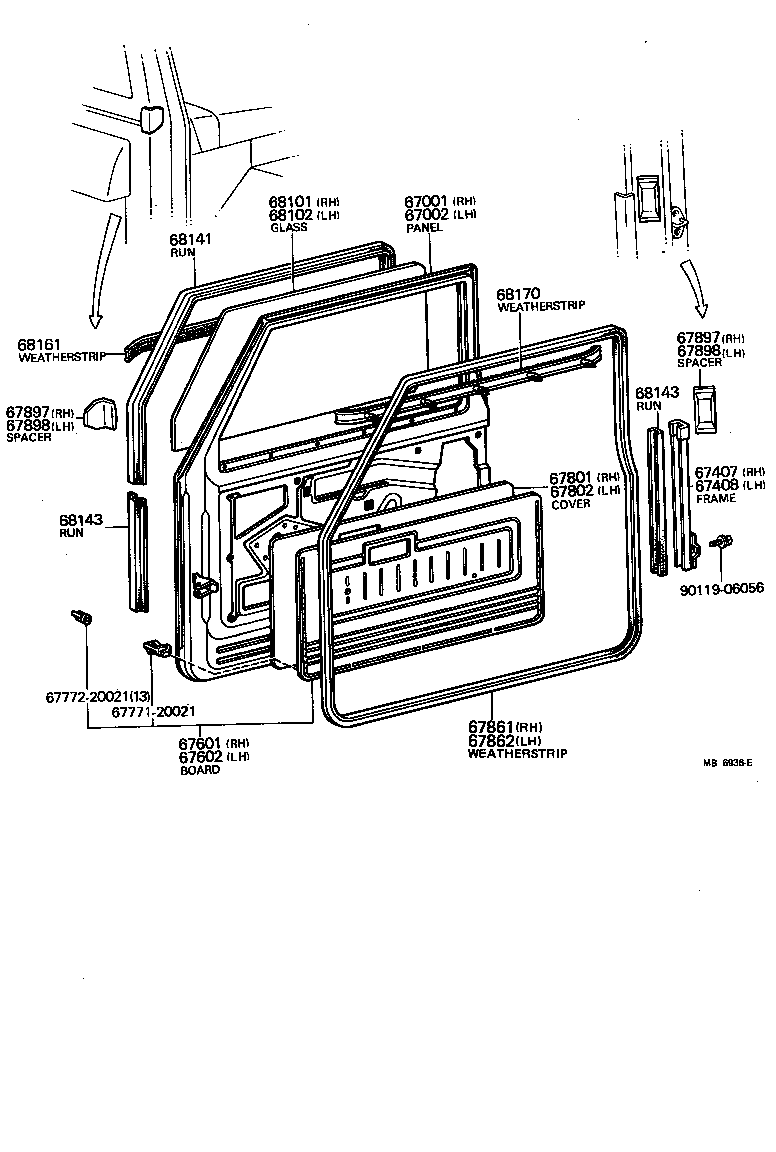

Click highlighted areas on diagram

diagram 67001 67002 67407 67408 67601 67602 6777120021 6777220021 67801 67802 67861 67862 67897 67897 67898 67898 68101 68102 68141 68143 68143 68161 68170 9011906056
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-90356

FJ56

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-90356

FJ56

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-90351

FJ5#

 1
67861-90357

FJ56

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-90351

FJ5#

 1
67862-90357

FJ56

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-90354

FJ56

TP.T=5.0

 1
68111-90355

FJ56

TN.TP.T=5.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68111-90354

FJ56

TP.T=5.0

 1
68111-90355

FJ56

TN.TP.T=5.0

 1
68141 - RUN, FRONT DOOR GLASS
68141-90353

FJ56

 2
Common parts
67771-20021
67772-20021
90119-06056
