FJ56V-KC (1975)

Toyota Land Cruiser Van

Production Jan 1975 - Feb 1979
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7509)F

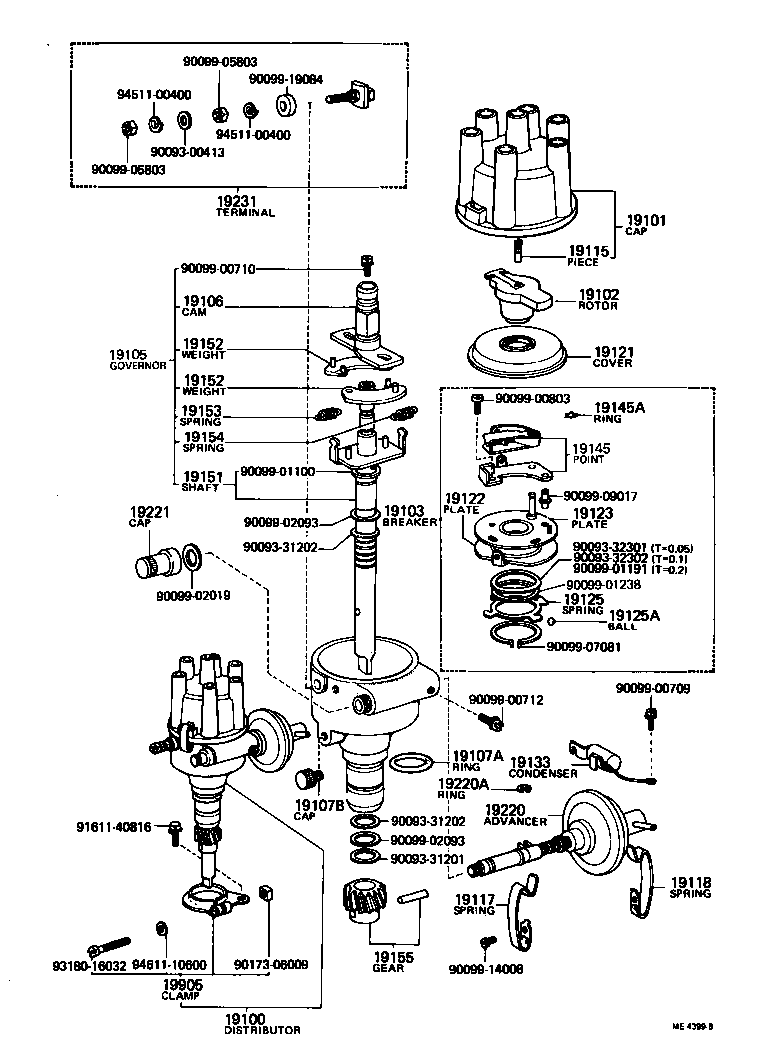

Click highlighted areas on diagram

diagram 19100 19101 19102 19103 19105 19106 19107A 19107B 19115 19117 19118 19121 19122 19123 19125 19125A 19133 19145 19145A 19151 19152 19152 19153 19154 19155 19220 19220A 19221 19231 19905 9009300413 9009331201 9009331202 9009331202 9009332301 9009332302 9009900709 9009900710 9009900712 9009900803 9009901100 9009901191 9009901238 9009902019 9009902093 9009902093 9009905803 9009905803 9009907081 9009909017 9009914008 9009919084 9017306009 9161140816 9318016032 9451100400 9451100400 9461110600
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-60090

2F..FJ56

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-41010

F,2F..FJ4#,5#

 1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-60070

2F..FJ56

 1
19103-41011

2F..FJ56

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14007

2F..FJ56

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

F,2F..FJ4#,5#

 1
19121 - COVER, DUST PROOF
19121-30030

F,2F..FJ4#,5#

 1
19125 - SPRING(FOR DISTRIBUTOR STATIONARY PLATE)
19125-30010

F,2F..FJ4#,5#

 1
19125A - BALL, DISTRIBUTOR STATIONARY PLATE
90099-12003

F,2F..FJ4#,5#

 4
19151 - SHAFT, GOVERNOR
19151-60061

F,2F..FJ4#,5#

 1
19152 - WEIGHT, GOVERNOR
19152-32010

F,2F..FJ4#,5#

 2
19152 - WEIGHT, GOVERNOR
19152-32010

F,2F..FJ4#,5#

 2
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-60040

F,2F..FJ4#,5#

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-60090

2F..FJ56

 1
Common parts
90093-00413
90093-31201
90093-31202
90093-32301
90093-32302
90099-00709
90099-00710
90099-00712
90099-00803
90099-01100
90099-01191
90099-01238
90099-02019
90099-02093
90099-05803
90099-07081
90099-09017
90099-14008
90099-19084
90173-06009
91611-40816
93180-16032
94511-00400
94611-10600
