Toyota Land cruiser van FJ56 WINDSHIELD WASHER

Home Blog About Contact Search

FJ56V-K (1975)

Toyota Land Cruiser Van

Production Jan 1975 - Feb 1979

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

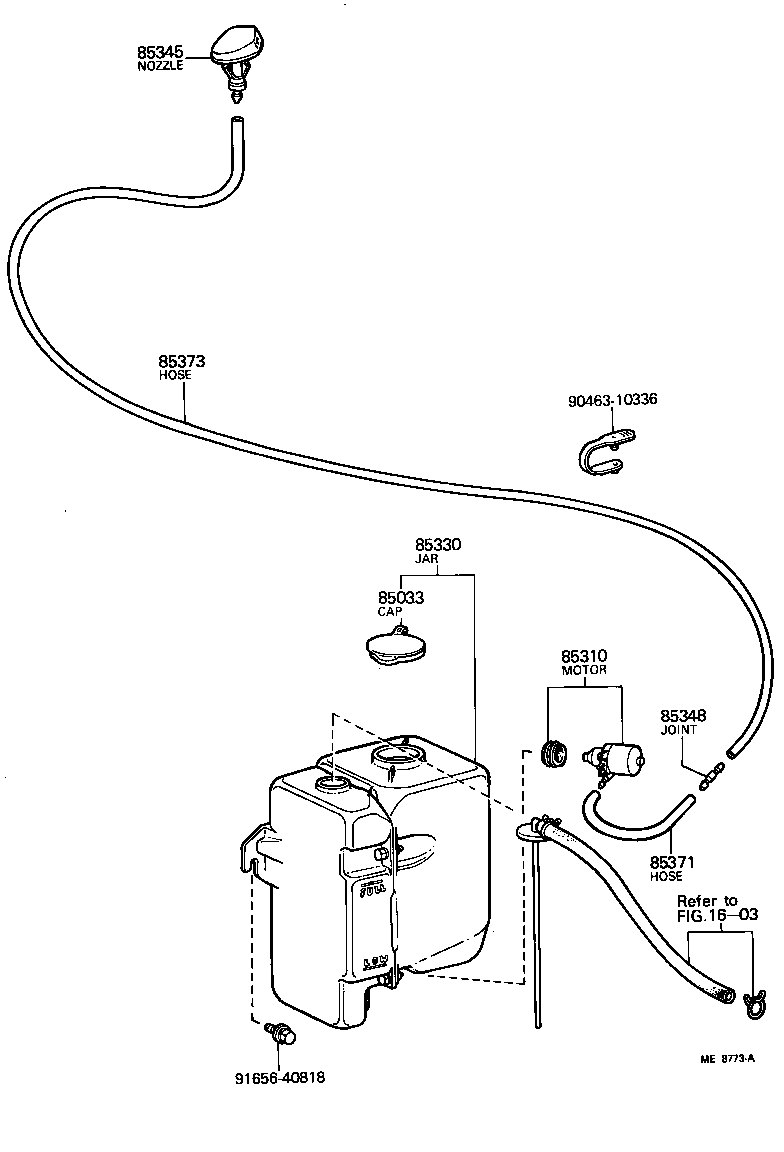

Click highlighted areas on diagram

Part #	Description	Period	Qty
85033 - CAP ASSY, WINDSHIELD WASHER
85332-60010	FJ56	09/1977 - 02/1979	1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-60030	FJ56	09/1977 - 02/1979	1
85345 - NOZZLE, WINDSHIELD WASHER
85035-10061	FJ56	02/1976 - 02/1979	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06006	FJ56 L=2000	09/1977 - 02/1979	1
Common parts
90463-10336
91656-40818
Linked diagrams
1603
