FJ56V-K (1975)
Toyota Land Cruiser Van
Production
Jan 1975
-
Feb 1979
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7608-7709)FJ56

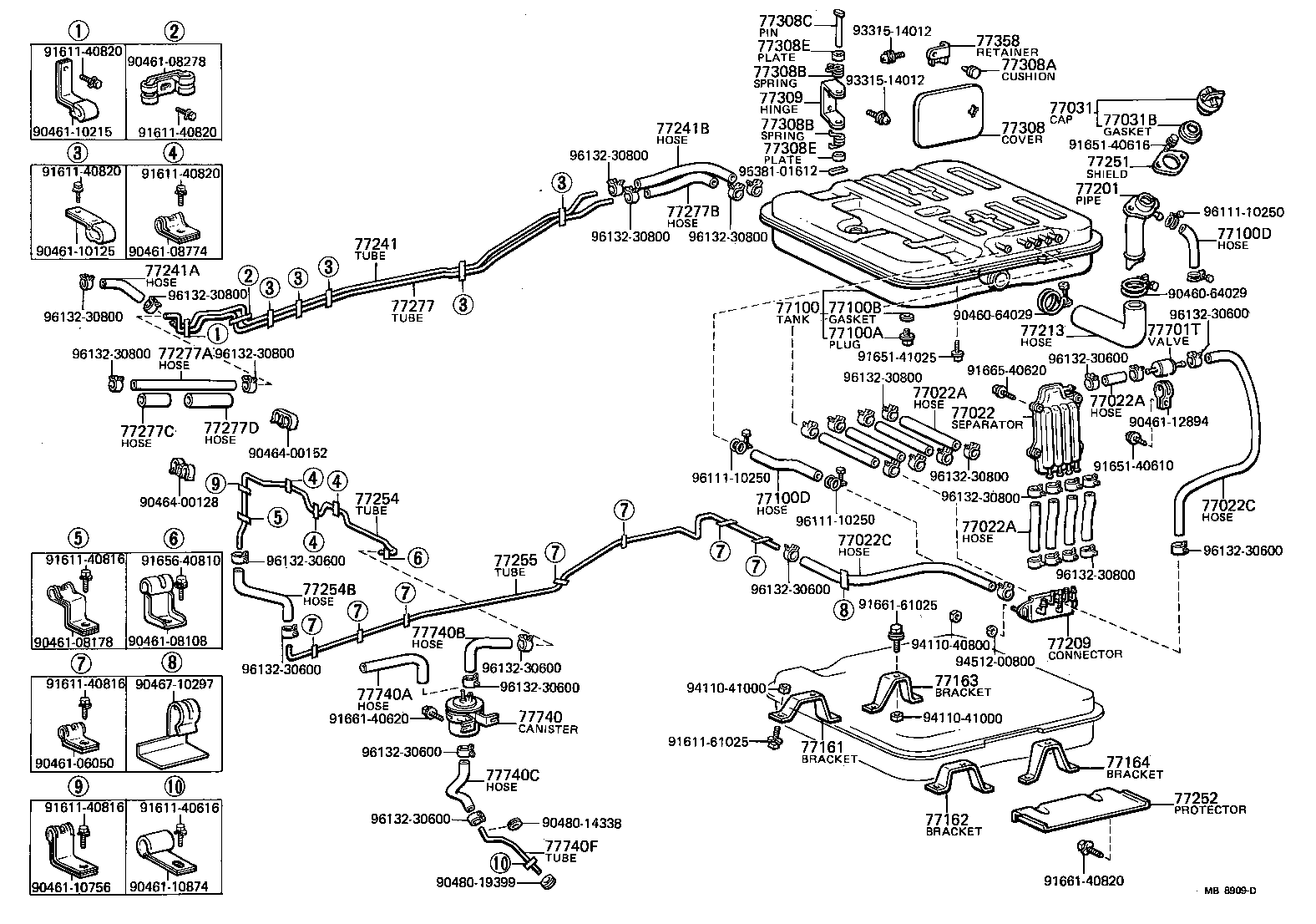

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06120 |
FJ56 L=1200 |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06120 |
FJ56 L=1200 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-60080 |
FJ56 |
1 | ||
| 77100-60081 |
FJ56 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12038 |
BJ4#,FJ4#,5# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60101 |
FJ56 |
1 | ||
| 77201-60100 |
FJ56 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60022 |
FJ56 |
1 | ||
| 77213-60020 |
FJ56 |
1 | ||
| 77212-90353 |
FJ5# |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-60091 |
FJ56 |
1 | ||
| 77251-60090 |
FJ56 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
FJ56 *H,L=180,内径=7.6 |
1 | ||
| 95332-08005 |
FJ56 *H,L=50,内径=7.6 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77293-60030 |
FJ56 |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77276-60010 |
FJ56 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77181-90358 |
FJ56 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06011 |
FJ56 *H,L=110 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77182-90357 |
FJ56 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-60030 |
FJ56 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-08040 |
FJ56 長さ=400,内径=7.6 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-08038 |
FJ56 *H,L=380,内径=7.6 |
1 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 61827-90351 |
FJ5# UPPER |
1 | ||
| 61828-90351 |
FJ5# LOWER |
1 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 61827-90351 |
FJ5# UPPER |
1 | ||
| 61828-90351 |
FJ5# LOWER |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
FJ56 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95332-06040 |
FJ56 *H,L=340 |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 95332-06026 |
FJ56 *H,L=260 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 95332-08020 |
FJ56 *H,L=200,内径=7.6 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-60010 |
FJ56 |
1 | ||
| Common parts | ||||
| 90460-64029 | ||||
| 90461-06050 | ||||
| 90461-08108 | ||||
| 90461-08178 | ||||
| 90461-08278 | ||||
| 90461-08774 | ||||
| 90461-10125 | ||||
| 90461-10215 | ||||
| 90461-10756 | ||||
| 90461-10874 | ||||
| 90461-12894 | ||||
| 90464-00128 | ||||
| 90464-00152 | ||||
| 90467-10297 | ||||
| 90480-14338 | ||||
| 90480-19399 | ||||
| 91611-40616 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-61025 | ||||
| 91651-40610 | ||||
| 91651-40616 | ||||
| 91651-41025 | ||||
| 91656-40810 | ||||
| 91661-40620 | ||||
| 91661-40820 | ||||
| 91661-61025 | ||||
| 91665-40620 | ||||
| 93315-14012 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 95381-01612 | ||||
| 96111-10250 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
