FJ55V-B (1969)

Toyota Land Cruiser Van

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)FJ5#

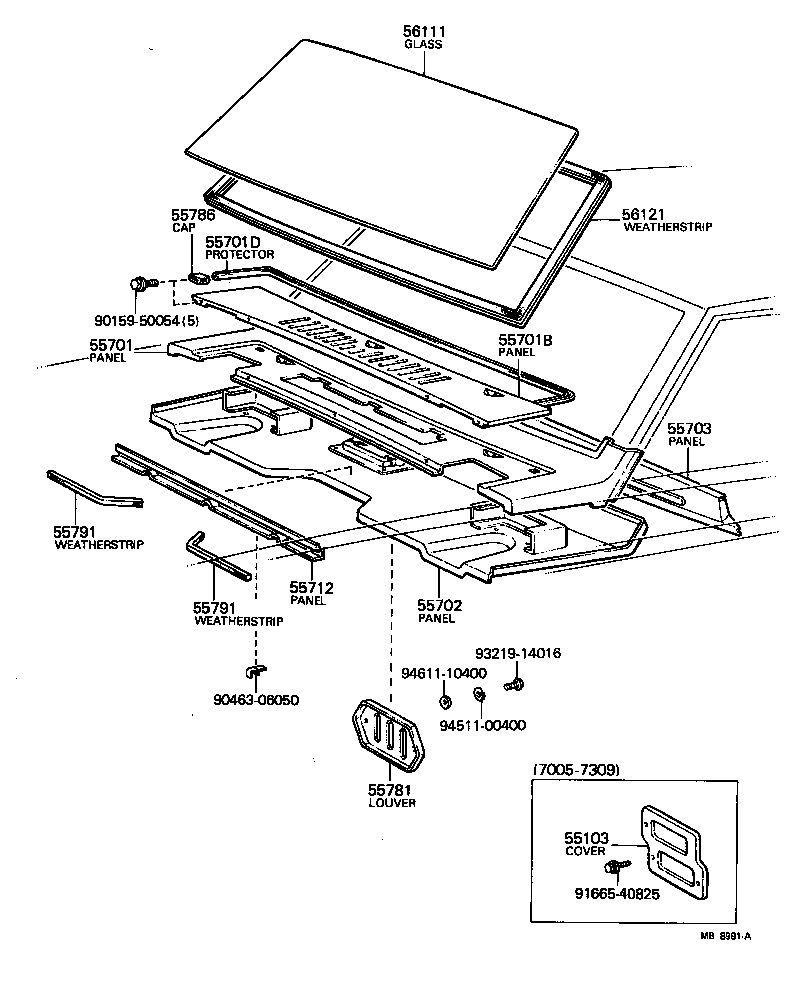

Click highlighted areas on diagram

diagram 55103 55701 55701B 55701D 55702 55703 55712 55781 55786 55791 55791 56111 56121 9015950054 9046306050 9166540825 9321914016 9451100400 9461110400
Part # Description Qty Price
55103 - COVER SUB-ASSY, HOLE
55104-90351

FJ55

 1
55701 - PANEL SUB-ASSY, COWL
55711-90352

FJ5#

 1
55701B - PANEL SUB-ASSY, COWL UPPER LOUVER
55703-90351

FJ55

 1
55702 - PANEL SUB-ASSY,COWL TOP, INSIDE
55702-90351

FJ55

 1
55702-90355

FJ55

 1
55702-90353

FJ55

 1
55703 - PANEL SUB-ASSY, COWL TOP, REAR
55713-90351

FJ5#

 1
55712 - PANEL, COWL TOP OUTSIDE, FRONT
55712-90351

FJ5#

 1
55781 - LOUVER, COWL VENTILATOR
55813-90351

FJ55

 1
55786 - CAP, COWL VENTILATOR LOUVER
55783-90351

FJ5#

 5
55791 - WEATHERSTRIP, HOOD TO COWL TOP
55791-90351

FJ5#

RH.

 1
55792-90351

FJ5#

LH.

 1
55791 - WEATHERSTRIP, HOOD TO COWL TOP
55791-90351

FJ5#

RH.

 1
55792-90351

FJ5#

LH.

 1
56111 - GLASS, WINDSHIELD
56111-90353

FJ5#

LM.T=6.7

 1
56111-90354

FJ5#

ZN.TP.T=5.0

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-90352

FJ5#

FOR GLASS T=6.7

 1
56121-90357

FJ5#

FOR W/MOULDING

 1
56121-90351

FJ5#

FOR GLASS T=5.0

 1
Common parts
90159-50054
90463-06050
91665-40825
93219-14016
94511-00400
94611-10400
