Toyota Land cruiser van FJ55 CONTROL SHAFT & CROSSSHAFT

Manufacturers Home
Toyota
JP
LAND CRUISER VAN
FJ55V-B (1969)
3311 - CONTROL SHAFT & CROSSSHAFT

FJ55V-B (1969)

Toyota Land Cruiser Van

Production Mar 1969 - Jan 1975

Engine F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

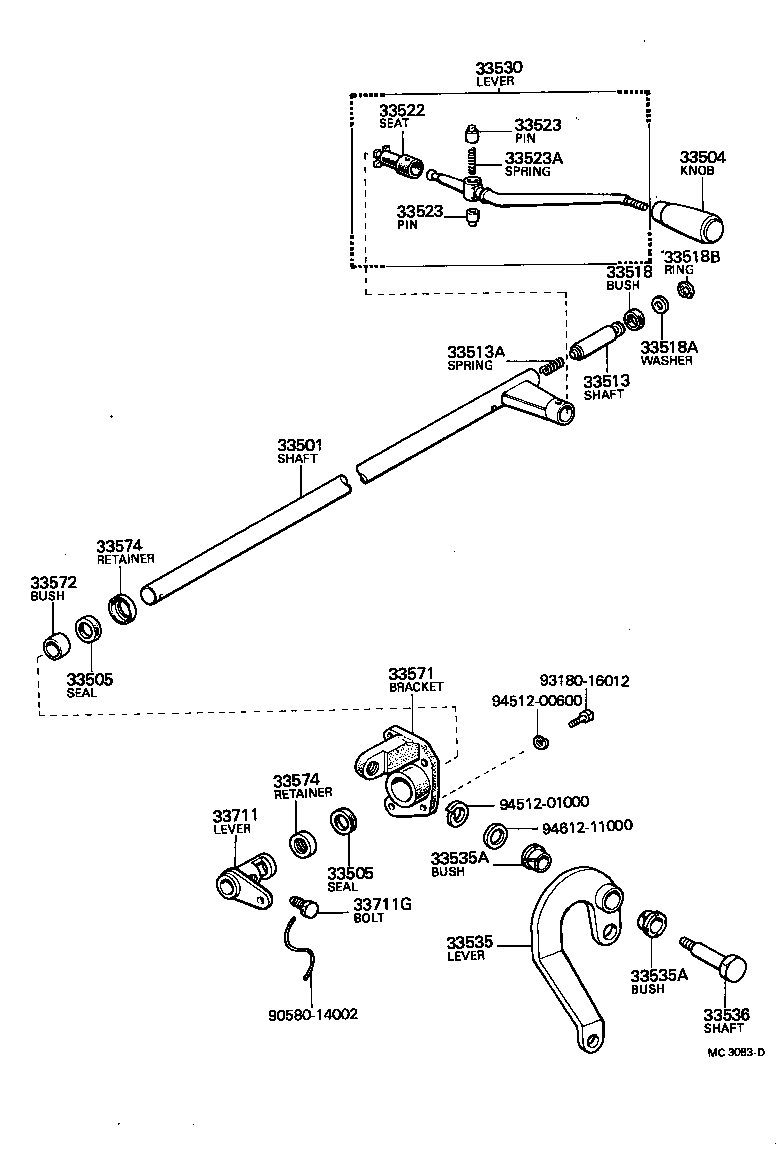

ILLUST NO. 1 OF 2(6903-7209)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33501-60030	FJ55	03/1969 - 09/1972	1
33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33542-61010	FJ4#,55	03/1969 - 09/1972	1
33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
90303-17004	FJ4#,55	03/1969 - 09/1972	2
33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
90303-17004	FJ4#,55	03/1969 - 09/1972	2
33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER
33513-30010	FJ55	03/1969 - 02/1971	1
33513-26011	FJ55	02/1971 - 09/1972	1
33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
90501-14244	FJ55	03/1969 - 09/1972	1
33518 - BUSH, UPPER CONTROL SHAFT PIECE
33518-30010	FJ55	03/1969 - 09/1972	1
33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
90201-08056	FJ55	03/1969 - 09/1972	1
33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
90523-06001	FJ55	03/1969 - 08/1969	1
90523-06019	FJ55	02/1971 - 09/1972	1
96160-00600	FJ55	08/1969 - 02/1971	1
33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33522-20010	FJ55	03/1969 - 09/1972	1
33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523-30010	FJ4#,55	03/1969 - 09/1972	2
33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523-30010	FJ4#,55	03/1969 - 09/1972	2
33523A - SPRING, COMPRESSION
90501-04062	FJ4#,55	03/1969 - 09/1972	1
33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33541-69025	FJ55	03/1969 - 09/1972	1
33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT)
33535-60030	FJ55	03/1969 - 09/1972	1
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007	FJ4#,55	03/1969 - 09/1972	2
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007	FJ4#,55	03/1969 - 09/1972	2
33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)
33536-60010	FJ4#,55	03/1969 - 09/1972	1
33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33571-60030	FJ55	03/1969 - 09/1972	1
33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33572-35010	FJ4#,55	03/1969 - 09/1972	1
33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33574-35010	FJ4#,55	03/1969 - 09/1972	2
33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33574-35010	FJ4#,55	03/1969 - 09/1972	2
33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33527-60030	FJ55	03/1969 - 09/1972	1
33711G - BOLT, CONTROL SHAFT LEVER LOCK
33218-35010	FJ4#,55	03/1969 - 09/1972	1
Common parts
90580-14002
93180-16012
94512-00600
94512-01000
94612-11000

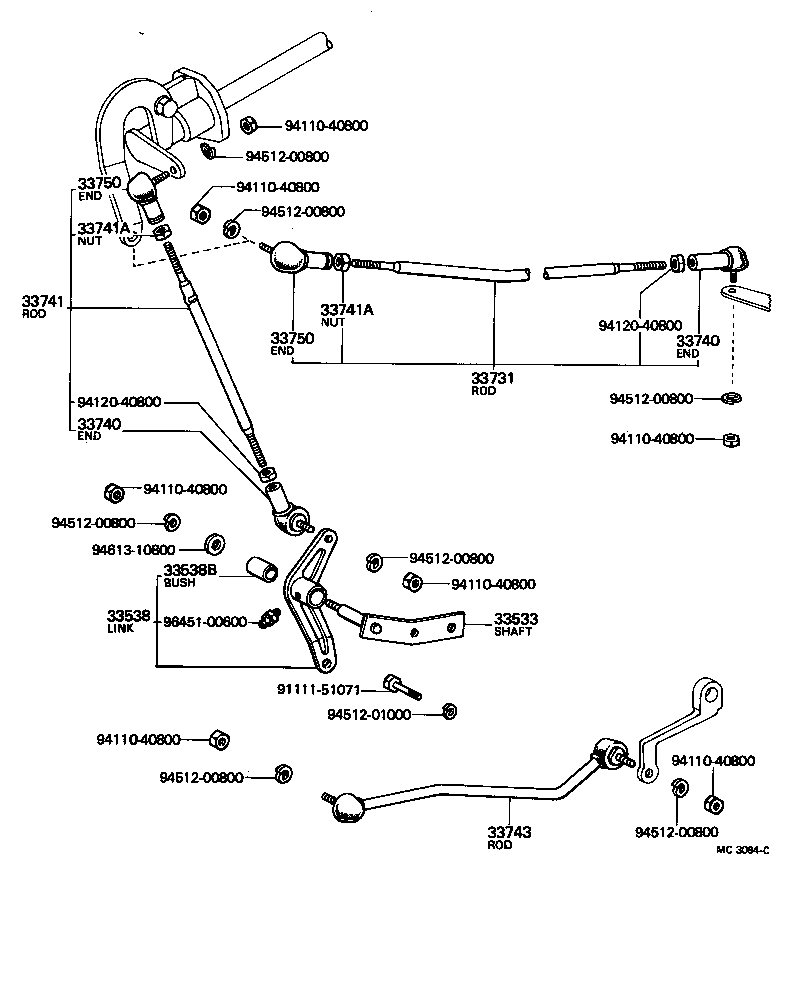

ILLUST NO. 2 OF 2(6903-7209)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
33533 - SHAFT, BELLCRANK (FOR COLUMN SHIFT)
33705-60010	FJ55	03/1969 - 09/1972	1
33538 - LINK, SHIFTING LEVER
33051-60040	FJ55	03/1969 - 09/1972	1
33538B - BUSH (FOR SHIFTING LEVER LINK)
90380-13007	FJ4#,55	03/1969 - 09/1972	1
33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)
33720-60030	FJ55	03/1969 - 09/1972	1
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011	FJ4#,55	03/1969 - 09/1972	2
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011	FJ4#,55	03/1969 - 09/1972	2
33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)
33710-60030	FJ55	03/1969 - 09/1972	1
33741A - NUT, HEXAGON (FOR COLUMN SHIFT SELECTING OR SHIFTING RO
90170-08052	FJ4#,55	03/1969 - 09/1972	2
33741A - NUT, HEXAGON (FOR COLUMN SHIFT SELECTING OR SHIFTING RO
90170-08052	FJ4#,55	03/1969 - 09/1972	2
33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT)
33730-60040	FJ55	03/1969 - 09/1972	1
33750 - END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT)
33750-35011	FJ4#,55	03/1969 - 09/1972	2
33750 - END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT)
33750-35011	FJ4#,55	03/1969 - 09/1972	2
Common parts
91111-51071
94110-40800
94120-40800
94512-00800
94512-01000
94613-10800
96451-00600

FJ55V-B (1969)

ILLUST NO. 1 OF 2(6903-7209)FJ55

ILLUST NO. 2 OF 2(6903-7209)FJ55
