FJ55V-B (1969)
Toyota Land Cruiser Van
Production
Mar 1969
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-7212)

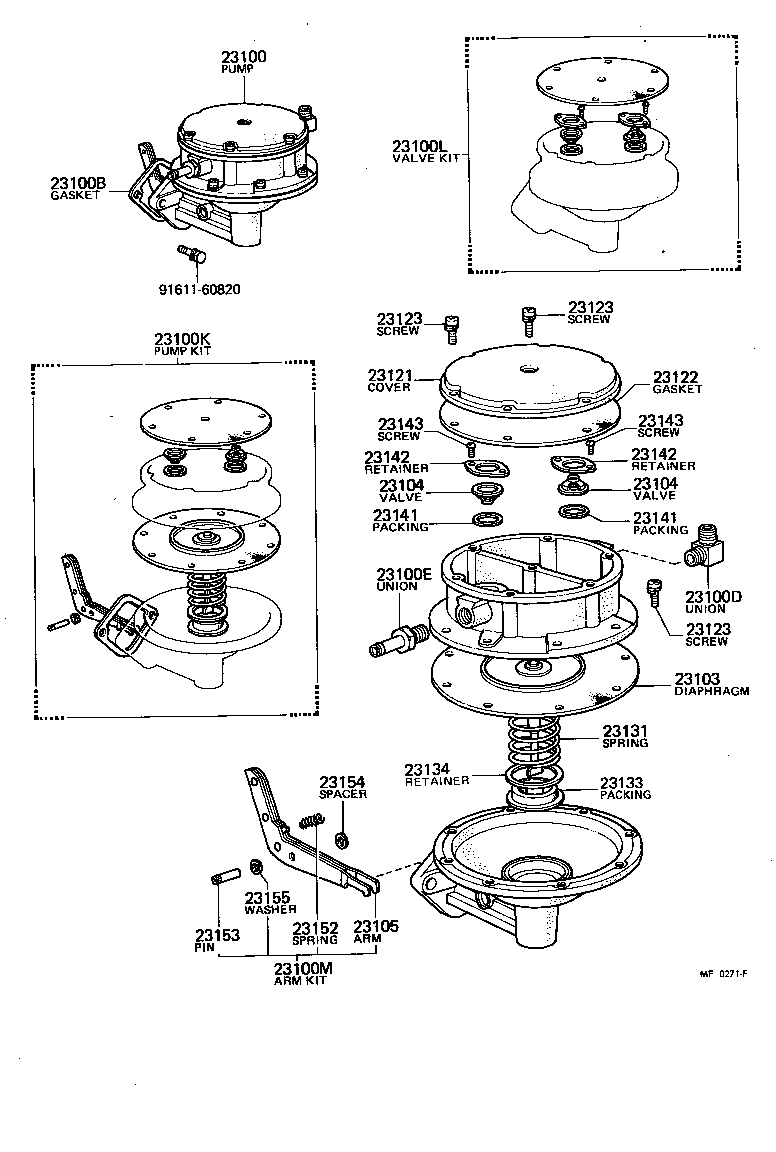

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-60071 |
F..FJ55 W/COOLER |
1 | ||
| 23100-60051 |
F..FJ4#,55 |
1 | ||
| 23100-60072 |
F..FJ55 W/COOLER |
1 | ||
| 23100-60060 |
F..FJ4#,55 |
1 | ||
| 23100-60074 |
F..FJ55 W/COOLER |
1 | ||
| 23100-60061 |
F..FJ4#,55 |
1 | ||
| 23100-60051 |
F..FJ4#,55 |
1 | ||
| 23100-60050 |
F..FJ4#,55 |
1 | ||
| 23100-60073 |
F..FJ55 W/COOLER |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
F..FJ55 |
1 | ||
| 23100D - UNION, NIPPLE(FOR FUEL OUTLET) | ||||
| 23116-60030 |
F,2F..FJ4#,5# |
1 | ||
| 26913-60071 |
F..FJ55 W/COOLER |
1 | ||
| 23100E - UNION, NIPPLE(FOR FUEL INLET) | ||||
| 90404-13105 |
F..FJ4#,55 |
1 | ||
| 90404-51266 |
F..FJ4#,55 |
1 | ||
| 23100K - PUMP KIT, FUEL | ||||
| 04231-60070 |
F..FJ4#,55 |
1 | ||
| 23100L - VALVE KIT, FUEL PUMP | ||||
| 04232-60061 |
F..FJ4#,55 |
1 | ||
| 23100M - ARM KIT, FUEL PUMP ROCKER | ||||
| 04233-60062 |
F..FJ4#,55 |
1 | ||
| 23103 - DIAPHRAGM SUB-ASSY | ||||
| 23103-60021 |
F..FJ4#,55 |
1 | ||
| 23104 - VALVE SUB-ASSY | ||||
| 23104-60010 |
F..FJ4#,55 |
2 | ||
| 23104 - VALVE SUB-ASSY | ||||
| 23104-60010 |
F..FJ4#,55 |
2 | ||
| 23105 - ARM SUB-ASSY, ROCKER | ||||
| 23105-60020 |
F..FJ4#,55 |
1 | ||
| 23121 - COVER, FUEL PUMP | ||||
| 23121-60020 |
F..FJ4#,55 |
1 | ||
| 23122 - GASKET, FUEL PUMP COVER | ||||
| 23122-60010 |
F..FJ4#,55 |
1 | ||
| 23123 - SCREW, COVER SET, NO.1 | ||||
| 23123-60022 |
F..FJ4#,55 |
15 | ||
| 23123-60021 |
F..FJ4#,55 |
15 | ||
| 23123 - SCREW, COVER SET, NO.1 | ||||
| 23123-60022 |
F..FJ4#,55 |
15 | ||
| 23123-60021 |
F..FJ4#,55 |
15 | ||
| 23123 - SCREW, COVER SET, NO.1 | ||||
| 23123-60021 |
F..FJ4#,55 |
15 | ||
| 23123-60022 |
F..FJ4#,55 |
15 | ||
| 23131 - SPRING, DIAPHRAGM(FOR FUEL PUMP) | ||||
| 23131-60010 |
F,2F..FJ4#,5# |
1 | ||
| 23133 - PACKING, OIL SEAL(FOR FUEL PUMP) | ||||
| 23133-60050 |
F,2F..FJ4#,5# |
1 | ||
| 23134 - RETAINER, OIL SEAL PACKING(FOR FUEL PUMP) | ||||
| 23134-40011 |
F,2F..FJ4#,5# |
1 | ||
| 23141 - PACKING, VALVE | ||||
| 23141-60010 |
F..FJ4#,55 |
2 | ||
| 23141 - PACKING, VALVE | ||||
| 23141-60010 |
F..FJ4#,55 |
2 | ||
| 23142 - RETAINER, VALVE | ||||
| 23142-60010 |
F..FJ4#,55 |
2 | ||
| 23142 - RETAINER, VALVE | ||||
| 23142-60010 |
F..FJ4#,55 |
2 | ||
| 23143 - SCREW, VALVE RETAINER SET | ||||
| 23143-60021 |
F..FJ4#,55 |
4 | ||
| 23143 - SCREW, VALVE RETAINER SET | ||||
| 23143-60021 |
F..FJ4#,55 |
4 | ||
| 23152 - SPRING, ROCKER ARM | ||||
| 23152-60020 |
F,2F..FJ4#,5# |
1 | ||
| 23153 - PIN, ROCKER ARM | ||||
| 23153-60020 |
F..FJ4#,55 |
1 | ||
| 23154 - SPACER, ROCKER ARM | ||||
| 23154-60010 |
F..FJ4#,55 |
2 | ||
| 23155 - WASHER, ROCKER ARM PIN | ||||
| 23155-60020 |
F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
