FJ55V-B (1969)

Toyota Land Cruiser Van

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7509)F

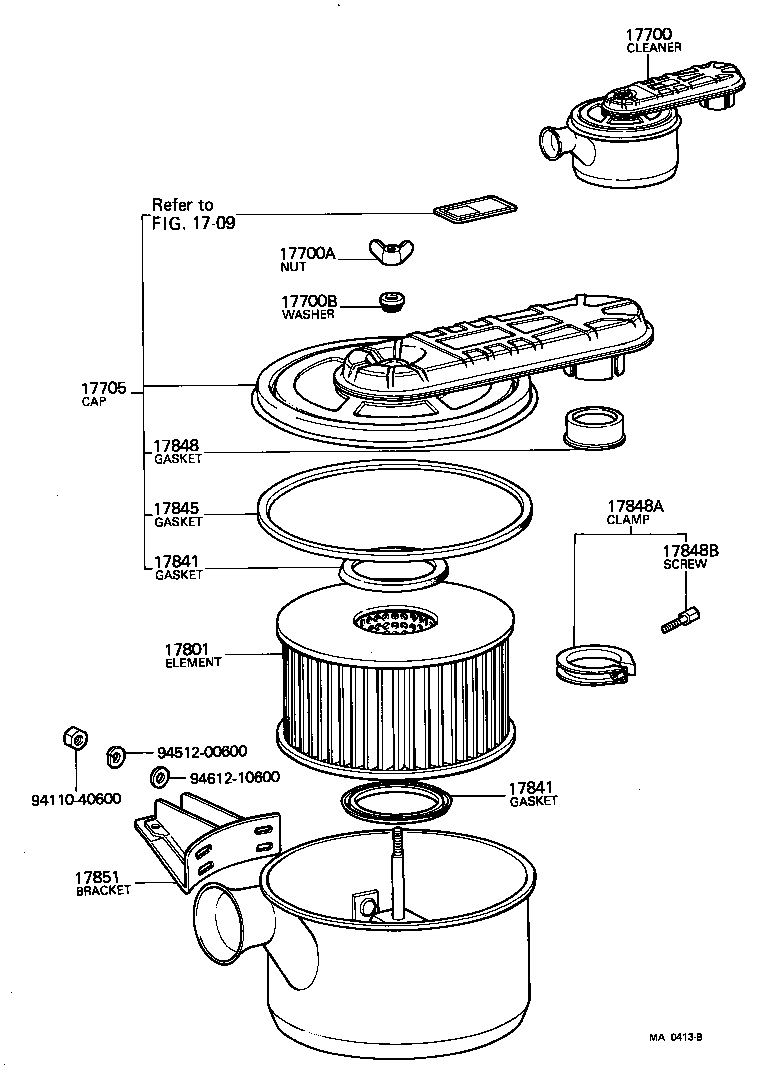

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700B 17705 17801 17841 17841 17845 17848 17848A 17848B 17851 9411040600 9451200600 9461210600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-60290

F..FJ4#,55

 1
17700-60270

F..FJ4#,55

W/PCV

 1
17700-60291

F..FJ4#,55

 1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00800

F..FJ4#,55

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003

F,2F..FJ4#,5#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-60141

F..FJ4#,55

 1
17705-60140

F..FJ4#,55

 1
17705-60200

F..FJ4#,55

W/PCV

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-60040

F,2F..FJ4#,5#

 1
17841 - GASKET, FILTER ELEMENT
17841-60011

F,2F..FJ4#,5#

 2
17841 - GASKET, FILTER ELEMENT
17841-60011

F,2F..FJ4#,5#

 2
17845 - GASKET, AIR CLEANER CAP
17845-60040

F,2F..FJ4#,5#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-60030

F..FJ4#,55

 1
17848A - CLAMP(FOR AIR CLEANER TO CARBURETOR GASKET)
90460-63049

F..FJ4#,55

 1
17848B - BOLT, CLAMP(FOR AIR CLEANER TO CARBURETOR GASKET)
90143-60012

F..FJ4#,55

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-60100

F,2F..FJ4#,5#

 1
Common parts
94110-40600
94512-00600
94612-10600
Linked diagrams
1709
