FJ55V-B (1969)

Toyota Land Cruiser Van

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7309)

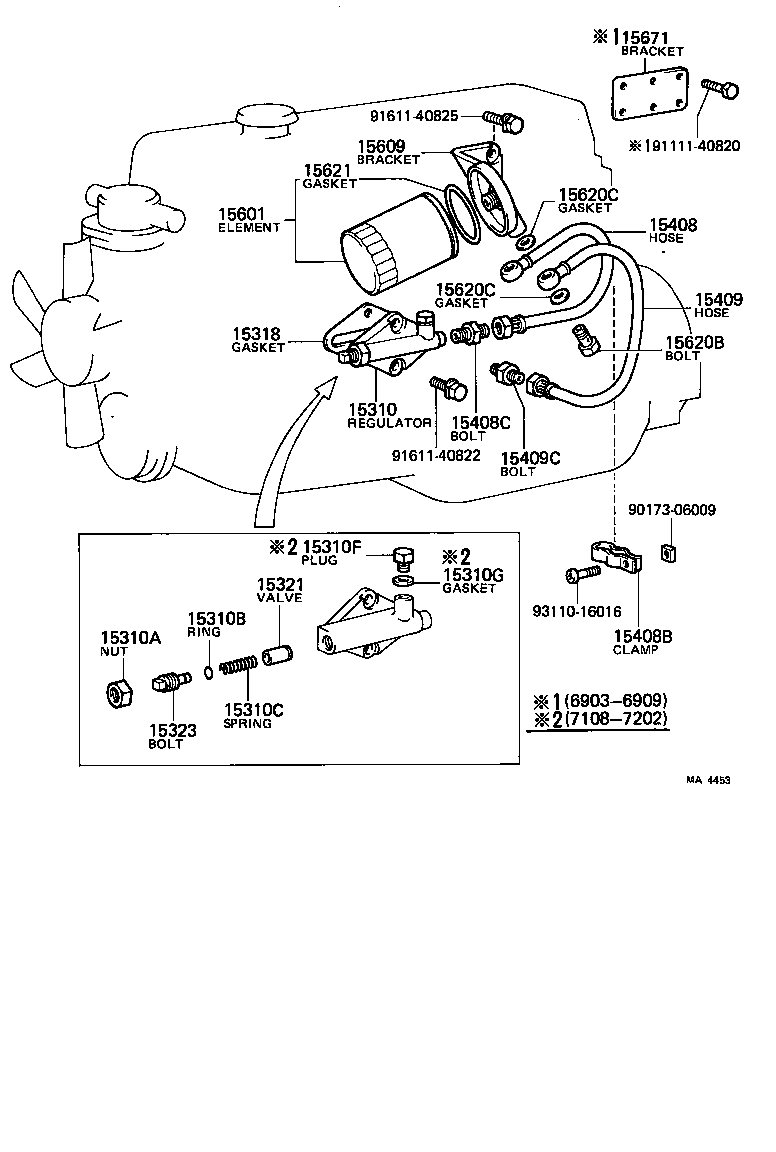

Click highlighted areas on diagram

diagram 15310 15310A 15310B 15310C 15310F 15310G 15318 15321 15323 15408 15408B 15408C 15409 15409C 15601 15609 15620B 15620C 15620C 15621 15671 9017306009 9111140820 9161140822 9161140825 9311016016
Part # Description Qty Price
15310 - REGULATOR ASSY, OIL PRESSURE
15310-60011

F..FJ4#,55

 1
15310-60010

F..FJ4#,55

 1
15310-60031

F..FJ4#,55

 1
15310A - NUT, OIL PRESSURE REGULATOR CAP LOCK
90170-18032

F..FJ4#,55

 1
90170-18142

F..FJ4#,55

 1
15310B - RING, OIL PRESSURE REGULATOR OIL
90301-10042

F..FJ4#,55

 1
15310C - SPRING, OIL PRESSURE REGULATOR
90501-16096

F..FJ4#,55

 1
15310F - PLUG, W/HEAD STRAIGHT SCREW(FOR REGULATOR)
90341-10056

F..FJ4#,55

 1
15310G - GASKET(FOR OIL PRESSURE REGULATOR)
90430-10074

F..FJ4#,55

 1
15318 - GASKET, OIL PRESSURE REGULATOR BODY
15318-60010

F..FJ4#,55

 1
15321 - VALVE, OIL ADJUSTING
15321-60010

F..FJ4#,55

 1
15323 - BOLT, OIL PRESSURE ADJUSTING
15323-60010

F..FJ4#,55

 1
15408 - PIPE OR HOSE, OIL FILTER INLET
90923-03010

F..FJ4#,55

 2
15408B - CLAMP(FOR OIL FILTER INLET PIPE)
90461-06059

F..FJ4#,55

 1
15408C - BOLT, UNION(FOR OIL FILTER INLET PIPE)
90404-13105

F..FJ4#,55

 1
15409 - PIPE OR HOSE, OIL FILTER OUTLET
90923-03010

F..FJ4#,55

 1
15409C - BOLT, UNION(FOR OIL FILTER OUTLET PIPE)
90404-13105

F..FJ4#,55

 1
15601 - FILTER SUB-ASSY, OIL
15600-41010

F,2F..FJ4#,5#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-60010

F..FJ4#,55

 1
15620B - BOLT, UNION(FOR OIL FILTER CAP)
90401-10051

F..FJ4#,55

 2
15620C - GASKET(FOR OIL FILTER CAP)
90430-10074

F..FJ4#,55

 4
15620C - GASKET(FOR OIL FILTER CAP)
90430-10074

F..FJ4#,55

 4
15621 - GASKET, OIL FILTER BODY
15621-41010

F,2F..FJ4#,5#

 1
15671 - BRACKET, OIL FILTER
15144-60030

F..FJ4#,55

 1
Common parts
90173-06009
91111-40820
91611-40822
91611-40825
93110-16016
