FJ55V-B (1969)

Toyota Land Cruiser Van

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7509)F

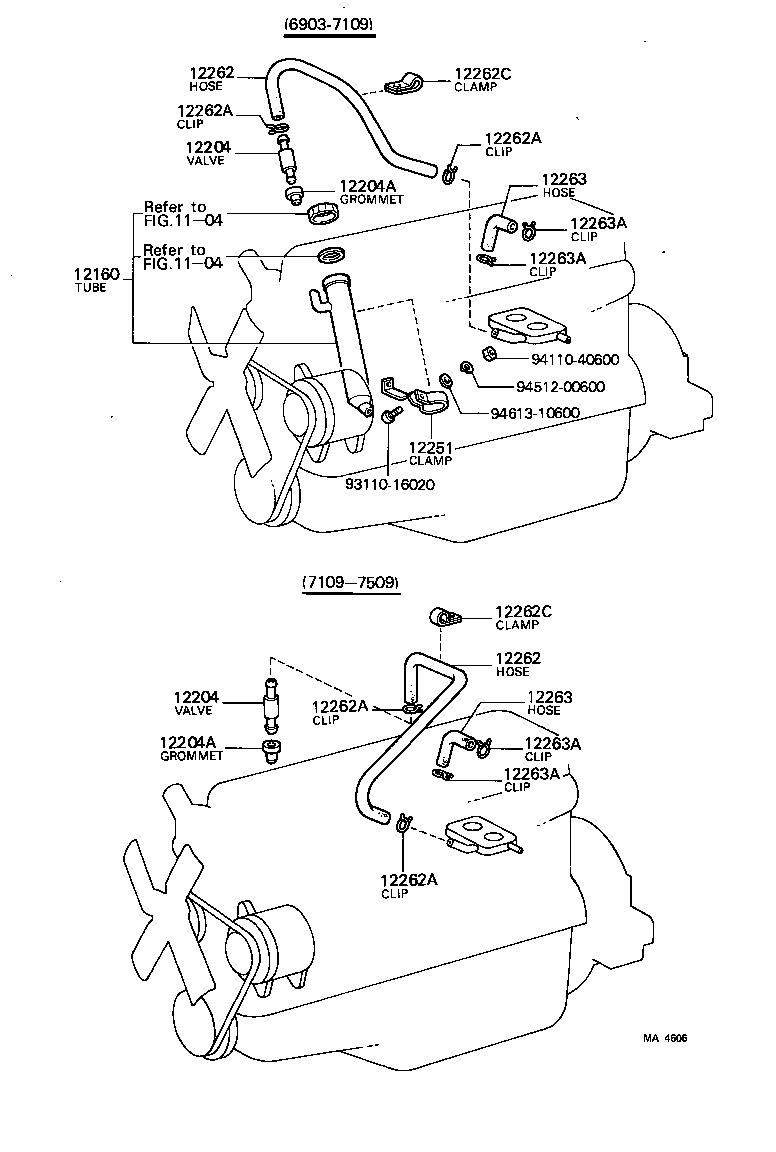

Click highlighted areas on diagram

diagram 1104 1104 12160 12204 12204 12204A 12204A 12251 12262 12262 12262A 12262A 12262A 12262A 12262C 12262C 12263 12263 12263A 12263A 12263A 12263A 9311016020 9411040600 9451200600 9461310600
Part # Description Qty Price
12160 - TUBE ASSY, OIL FILLER
12160-60061

F..FJ4#,55

 1
12160-60071

F..FJ4#,55

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-51011

F..FJ4#,55

 1
12204-51010

F..FJ4#,55

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-51011

F..FJ4#,55

 1
12204-51010

F..FJ4#,55

 1
12251 - CLAMP, VENTILATION TUBE
12251-60010

F..FJ4#,55

 1
12262 - HOSE, VENTILATION, NO.2
90445-18580

F..FJ4#,55

 1
12262 - HOSE, VENTILATION, NO.2
90445-18580

F..FJ4#,55

 1
12262C - CLAMP, VENTILATION HOSE, NO.2
90461-10676

F..FJ4#,55

 1
90461-10238

F..FJ4#,55

 1
12262C - CLAMP, VENTILATION HOSE, NO.2
90461-10676

F..FJ4#,55

 1
90461-10238

F..FJ4#,55

 1
Common parts
93110-16020
94110-40600
94512-00600
94613-10600
Linked diagrams
1104
