FJ55V- (1969)

Toyota Land Cruiser Van

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)FJ4#,5#

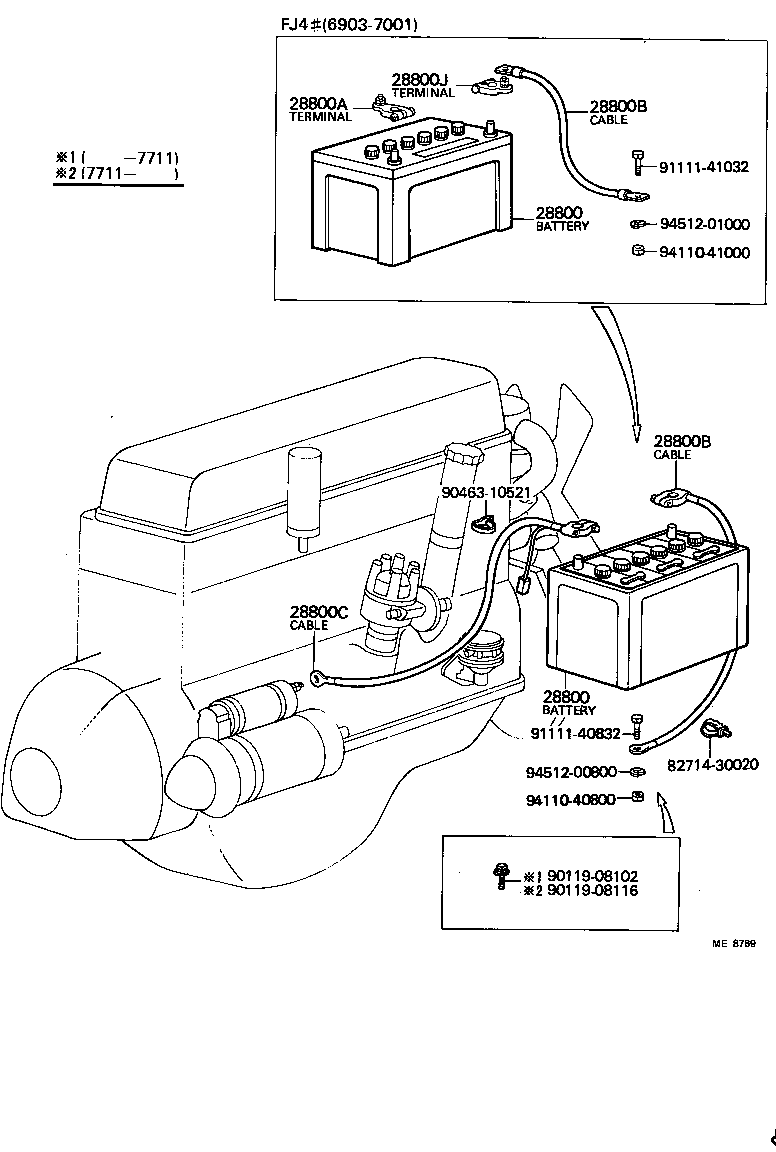

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800B 28800B 28800C 28800J 8271430020 9011908102 9011908116 9046310521 9111140832 9111141032 9411040800 9411041000 9451200800 9451201000
Part # Description Qty Price
28800 - BATTERY
28800-30051

F..FJ4#,55

N50,KOBE

 1
28800-46011

F,2F..FJ4#,5#

75D31R,N70Z,GS

 1
28800-30081

F..FJ4#,55

N50,GS

 1
28800 - BATTERY
28800-30051

F..FJ4#,55

N50,KOBE

 1
28800-46011

F,2F..FJ4#,5#

75D31R,N70Z,GS

 1
28800-30081

F..FJ4#,55

N50,GS

 1
28800B - CABLE, BATTERY TO GROUND
90982-02006

F,2F..FJ5#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02006

F,2F..FJ5#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01097

F..FJ4#,55

 1
90982-01038

F..FJ55

 1
90982-01129

F..FJ4#,55

 1
Common parts
82714-30020
90119-08102
90119-08116
90463-10521
91111-40832
91111-41032
94110-40800
94110-41000
94512-00800
94512-01000
