FJ55V- (1969)

Toyota Land Cruiser Van

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(6903-8007)FJ5#

Click highlighted areas on diagram

diagram 48110A 48110A 48110B 48110B 48110K 48110L 48331 48411 48412 48414 48415 48475 48501 48502 48505 48505A 48506 48510 48510A 48510A 48510A 48510A 48510B 48510C 48510C 48510D 48510E 48520 9017013028 9017014187 9161140820 9161640820 9411041000 9411041400 9411041400 9411541200 9412041000 9414141200 9414641200 9451201300 9451201400 9451201400 9451201400 9453101200 9461111400 9461111400 9538103025
Part # Description Qty Price
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-18025

FJ5#

 8
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-18025

FJ5#

 8
48110B - BUSH(FOR FRONT SPRING PIN)
90385-18025

FJ5#

 4
48110B - BUSH(FOR FRONT SPRING PIN)
90385-18025

FJ5#

 4
48110K - SHACKLE KIT, FRONT SPRING
04481-36020

FJ5#

 2
48110L - PIN KIT, FRONT SPRING
04484-35020

FJ5#

 2
48331 - BUMPER, FRONT SPRING, NO.1
48304-60010

FJ5#

 2
48411 - BRACKET, FRONT SPRING(FOR FRONT RH)
48411-60020

FJ5#

 1
48412 - BRACKET, FRONT SPRING(FOR FRONT LH)
48411-60020

FJ5#

 1
48414 - BRACKET, FRONT SPRING(FOR REAR RH)
48433-60010

FJ5#

 1
48415 - BRACKET, FRONT SPRING(FOR REAR LH)
48434-60010

FJ5#

 1
48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH
48512-60020

FJ5#

 1
48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH
48512-60020

FJ5#

 1
48505 - SEAT, FRONT SPRING, RH
48473-60010

FJ4#,55

 1
48505A - BOLT, U(FOR FRONT SPRING)
90118-13113

FJ4#,55

L=200,D=13,RH INSIDE

 1
90118-13114

FJ4#,55

L=175,D=13,RH OUTSIDE & LH.

 3
48506 - SEAT, FRONT SPRING, LH
48473-60010

FJ4#,55

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-69045

FJ55

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90385-16007

BJ4#,FJ4#,5#

LOWER

 4
90948-01002

FJ5#

UPPER

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90385-16007

BJ4#,FJ4#,5#

LOWER

 4
90948-01002

FJ5#

UPPER

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90385-16007

BJ4#,FJ4#,5#

LOWER

 4
90948-01002

FJ5#

UPPER

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90385-16007

BJ4#,FJ4#,5#

LOWER

 4
90948-01002

FJ5#

UPPER

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02005

FJ5#

 2
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02004

FJ5#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02004

FJ5#

 4
48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
90948-03003

BJ4#,FJ4#,5#

 2
48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
90948-03004

BJ4#,FJ4#,5#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-69045

FJ55

 1
Common parts
90170-13028
90170-14187
91611-40820
91616-40820
94110-41000
94110-41400
94115-41200
94120-41000
94141-41200
94146-41200
94512-01300
94512-01400
94531-01200
94611-11400
95381-03025

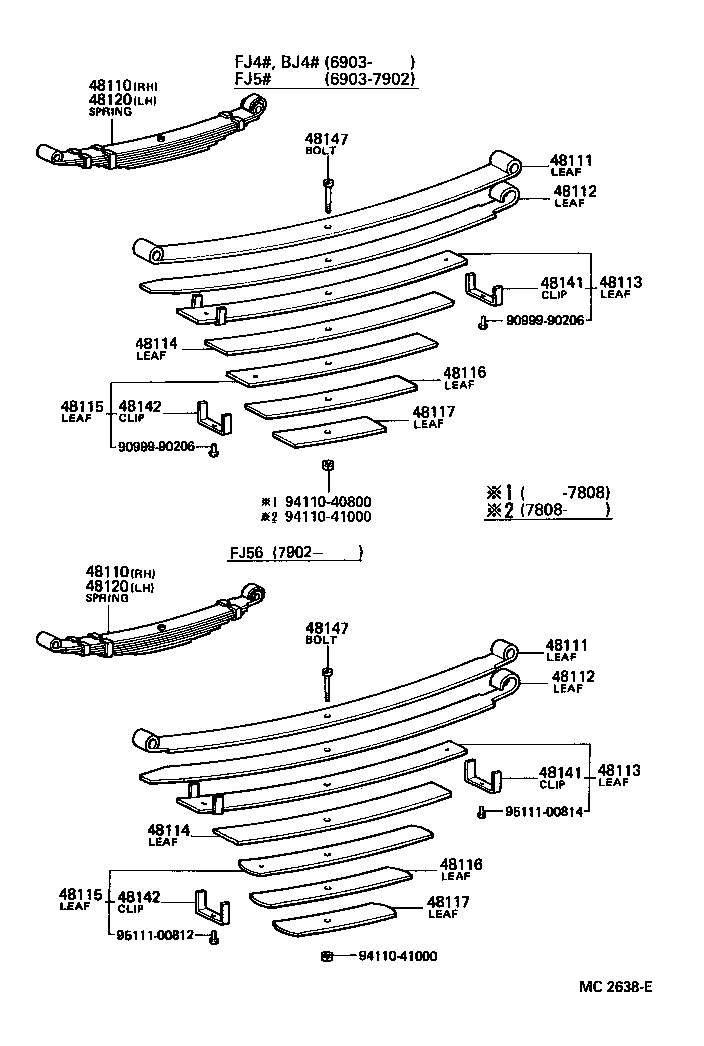

ILLUST NO. 2 OF 2(6903-8007)

Click highlighted areas on diagram

diagram 48110 48110 48111 48111 48112 48112 48113 48113 48114 48114 48115 48115 48116 48116 48117 48117 48120 48120 48141 48141 48142 48142 48147 48147 9099990206 9099990206 9411040800 9411041000 9411041000 9511100812 9511100814
Part # Description Qty Price
48110 - SPRING ASSY, FRONT, RH
48110-60080

FJ5#

 1
48110 - SPRING ASSY, FRONT, RH
48110-60080

FJ5#

 1
48111 - LEAF, FRONT SPRING, NO.1
48111-60080

FJ5#

 2
48111 - LEAF, FRONT SPRING, NO.1
48111-60080

FJ5#

 2
48112 - LEAF, FRONT SPRING, NO.2
48112-60080

FJ5#

 2
48112 - LEAF, FRONT SPRING, NO.2
48112-60080

FJ5#

 2
48113 - LEAF, FRONT SPRING, NO.3
48102-60080

FJ5#

 2
48113 - LEAF, FRONT SPRING, NO.3
48102-60080

FJ5#

 2
48114 - LEAF, FRONT SPRING, NO.4
48114-60080

FJ5#

 2
48114 - LEAF, FRONT SPRING, NO.4
48114-60080

FJ5#

 2
48115 - LEAF, FRONT SPRING, NO.5
48103-60080

FJ5#

 2
48115 - LEAF, FRONT SPRING, NO.5
48103-60080

FJ5#

 2
48116 - LEAF, FRONT SPRING, NO.6
48116-60080

FJ5#

 2
48116 - LEAF, FRONT SPRING, NO.6
48116-60080

FJ5#

 2
48117 - LEAF, FRONT SPRING, NO.7
48117-60080

FJ5#

 2
48117 - LEAF, FRONT SPRING, NO.7
48117-60080

FJ5#

 2
48120 - SPRING ASSY, FRONT, LH
48110-60080

FJ5#

 1
48120 - SPRING ASSY, FRONT, LH
48110-60080

FJ5#

 1
48141 - CLIP, FRONT SPRING, NO.1
48141-60060

BJ4#,FJ4#,5#

 4
48141 - CLIP, FRONT SPRING, NO.1
48141-60060

BJ4#,FJ4#,5#

 4
48142 - CLIP, FRONT SPRING, NO.2
48142-60060

BJ4#,FJ4#,5#

 2
48142 - CLIP, FRONT SPRING, NO.2
48142-60060

BJ4#,FJ4#,5#

 2
48147 - BOLT, FRONT SPRING, CENTER
48147-60080

BJ4#,FJ4#,5#

 2
48147 - BOLT, FRONT SPRING, CENTER
48147-60080

BJ4#,FJ4#,5#

 2
Common parts
90999-90206
94110-40800
94110-41000
95111-00812
95111-00814
