FJ43-C (1969)
Toyota Land Cruiser Van
Production
Mar 1969
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-7309)FJ4#

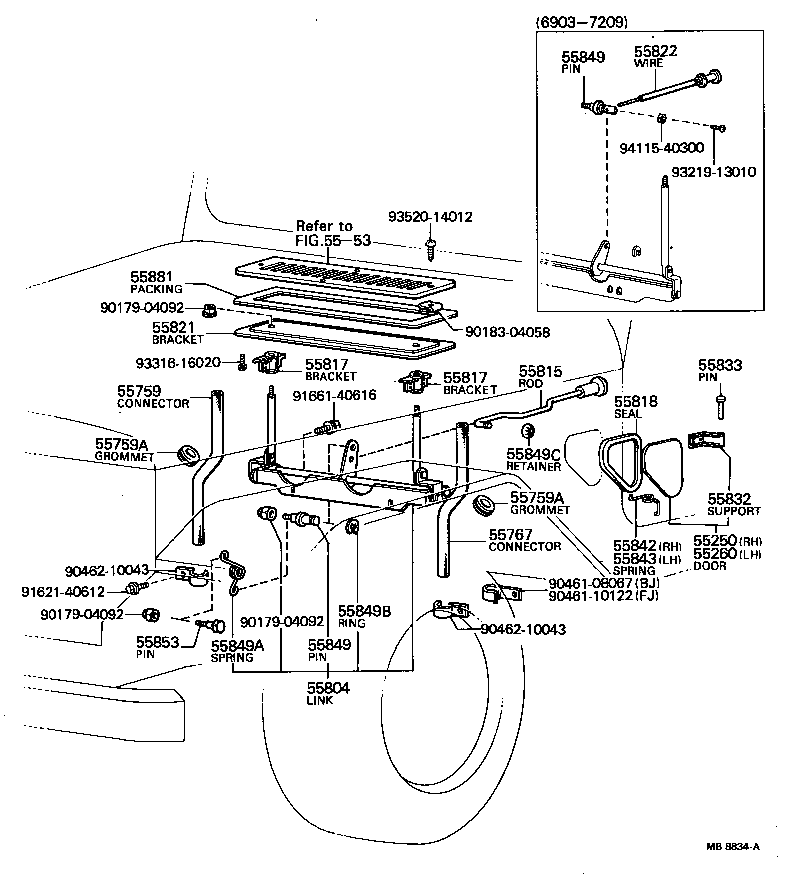

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55250 - DOOR ASSY, COWL SIDE VENTILATOR, RH | ||||
| 55708-60011 |
BJ4#,FJ4# |
1 | ||
| 55260 - DOOR ASSY, COWL SIDE VENTILATOR, LH | ||||
| 55709-60011 |
BJ4#,FJ4# |
1 | ||
| 55759 - CONNECTOR, COWL VENTILATOR DRAIN HOSE | ||||
| 55759-60011 |
FJ4# |
1 | ||
| 55759A - GROMMET, COWL VENTILATOR DRAIN HOSE CONNECTOR | ||||
| 90480-25125 |
FJ4# |
2 | ||
| 55759A - GROMMET, COWL VENTILATOR DRAIN HOSE CONNECTOR | ||||
| 90480-25125 |
FJ4# |
2 | ||
| 55767 - CONNECTOR, COWL VENTILATOR DRAIN HOSE | ||||
| 55767-60010 |
FJ4# |
1 | ||
| 55804 - LINK SUB-ASSY, COWL VENTILATOR DAMPER | ||||
| 55802-90300 |
FJ4# |
1 | ||
| 55802-60011 |
FJ4# |
1 | ||
| 55815 - ROD, COWL VENTILATOR CONTROL | ||||
| 55804-90300 |
FJ4# |
1 | ||
| 55817 - BRACKET, COWL VENTILATOR ROD | ||||
| 55851-90300 |
FJ4# |
2 | ||
| 55817 - BRACKET, COWL VENTILATOR ROD | ||||
| 55851-90300 |
FJ4# |
2 | ||
| 55818 - SEAL, SIDE VENTILATOR DUCT | ||||
| 55786-60011 |
FJ4# |
2 | ||
| 55821 - BRACKET, COWL VENTILATOR | ||||
| 55848-60010 |
FJ4# |
1 | ||
| 55822 - WIRE ASSY, COWL VENTILATOR | ||||
| 55820-60010 |
FJ4# |
1 | ||
| 55832 - SUPPORT, FRONT VENTILATOR | ||||
| 55784-60010 |
BJ4#,FJ4# |
2 | ||
| 55833 - PIN, FRONT VENTILATOR SUPPORT | ||||
| 90241-05002 |
BJ4#,FJ4# |
2 | ||
| 55842 - SPRING, FRONT VENTILATOR, RH | ||||
| 55787-25010 |
BJ4#,FJ4# |
1 | ||
| 55843 - SPRING, FRONT VENTILATOR, LH | ||||
| 55788-25010 |
BJ4#,FJ4# |
1 | ||
| 55849 - PIN, COWL VENTILATOR CONTROL WIRE | ||||
| 55849-60021 |
FJ4# |
1 | ||
| 55849-60011 |
FJ4# |
1 | ||
| 55849 - PIN, COWL VENTILATOR CONTROL WIRE | ||||
| 55849-60021 |
FJ4# |
1 | ||
| 55849-60011 |
FJ4# |
1 | ||
| 55849A - SPRING, TORSION(FOR COWL VENTILATOR CONTROL WIRE PIN) | ||||
| 90508-18084 |
FJ4# |
1 | ||
| 55849B - RING, E(FOR COWL VENTILATOR CONTROL WIRE PIN) | ||||
| 90523-05006 |
FJ4# |
1 | ||
| 96160-00500 |
FJ4# |
1 | ||
| 55849C - RETAINER, COWL VENTILATOR CONTROL WIRE PIN | ||||
| 90183-04072 |
FJ4# |
1 | ||
| 55853 - PIN,COWL VENTILATOR DAMPER SPRING | ||||
| 55853-60011 |
FJ4# |
1 | ||
| 55881 - PACKING, FRONT VENTILATOR | ||||
| 55881-60010 |
FJ4# |
1 | ||
| Common parts | ||||
| 90179-04092 | ||||
| 90183-04058 | ||||
| 90461-08067 | ||||
| 90461-10122 | ||||
| 90462-10043 | ||||
| 91621-40612 | ||||
| 91661-40616 | ||||
| 93219-13010 | ||||
| 93316-16020 | ||||
| 93520-14012 | ||||
| 94115-40300 | ||||
| Linked diagrams | ||||
| 5553 | ||||
