FJ40V-BC (1972)

Toyota Land Cruiser Van

Production Apr 1972 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7501)BJ4#,FJ4# ; (7501-7509)TPC

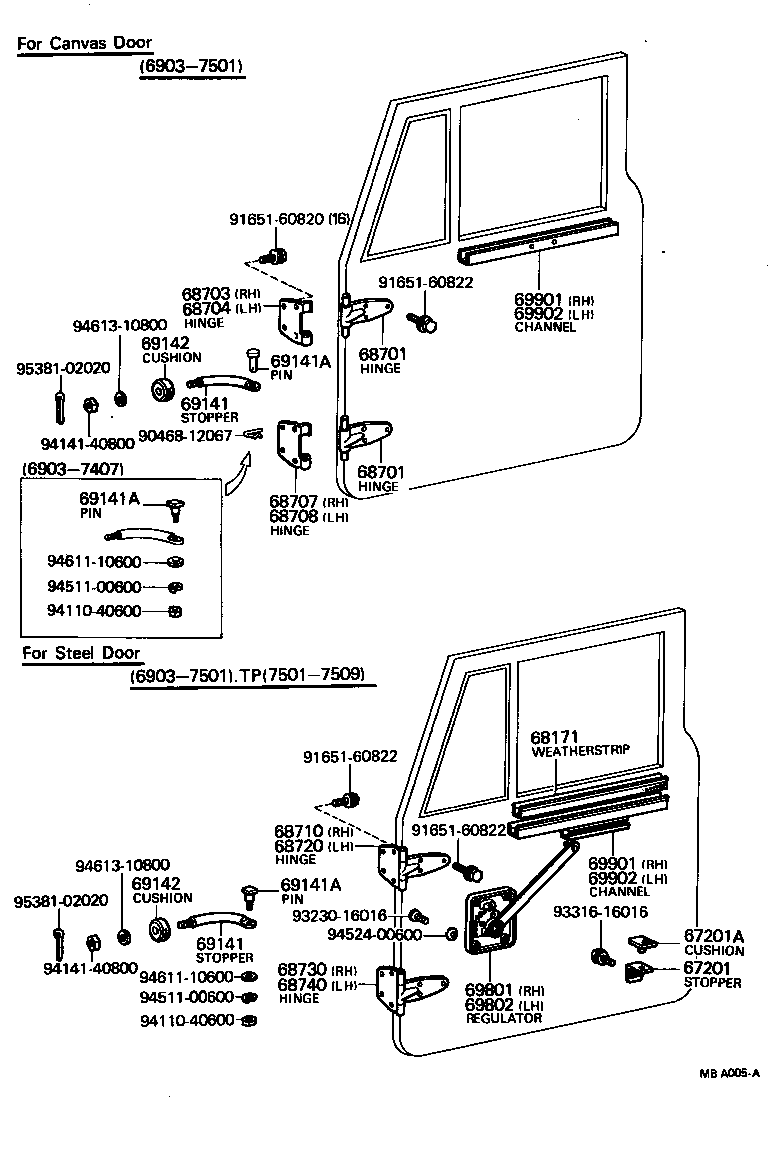

Click highlighted areas on diagram

diagram 67201 67201A 68171 68701 68701 68703 68704 68707 68708 68710 68720 68730 68740 69141 69141 69141A 69141A 69141A 69142 69142 69801 69802 69901 69901 69902 69902 9046812067 9165160820 9165160822 9165160822 9165160822 9323016016 9331616016 9411040600 9411040600 9414140800 9414140800 9451100600 9451100600 9452400600 9461110600 9461110600 9461310800 9461310800 9538102020 9538102020
Part # Description Qty Price
67201 - STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
67404-90332

BJ4#,FJ4#

 2
67201A - CUSHION, DOOR GLASS DOWN STOPPER(FOR FRONT DOOR)
68191-30010

BJ4#,FJ4#

 2
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68211-60011

BJ4#,FJ4#

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-60012

BJ4#,FJ4#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-60012

BJ4#,FJ4#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68710-60012

BJ4#,FJ4#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68720-60012

BJ4#,FJ4#

 1
69141 - STOPPER, FRONT DOOR OPEN
68957-60010

BJ4#,FJ4#

FOR STEEL DOOR

 2
69141 - STOPPER, FRONT DOOR OPEN
68957-60010

BJ4#,FJ4#

FOR STEEL DOOR

 2
69141A - PIN, FRONT DOOR OPEN STOPPER
68898-60010

BJ4#,FJ4#

 2
68898-60010

BJ4#,FJ4#

FOR STEEL DOOR

 2
69141A - PIN, FRONT DOOR OPEN STOPPER
68898-60010

BJ4#,FJ4#

 2
68898-60010

BJ4#,FJ4#

FOR STEEL DOOR

 2
69141A - PIN, FRONT DOOR OPEN STOPPER
68898-60010

BJ4#,FJ4#

 2
68898-60010

BJ4#,FJ4#

FOR STEEL DOOR

 2
69142 - CUSHION, DOOR OPEN STOPPER
69101-90300

BJ4#,FJ4#

 2
69142 - CUSHION, DOOR OPEN STOPPER
69101-90300

BJ4#,FJ4#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-90300

FJ4#

 1
69801-90300

BJ4#,FJ4#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-90300

FJ4#

 1
69802-90300

BJ4#,FJ4#

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-90300

BJ4#,FJ4#

FOR STEEL DOOR

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-90300

BJ4#,FJ4#

FOR STEEL DOOR

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69902-90300

BJ4#,FJ4#

FOR STEEL DOOR

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69902-90300

BJ4#,FJ4#

FOR STEEL DOOR

 1
Common parts
90468-12067
91651-60820
91651-60822
93230-16016
93316-16016
94110-40600
94141-40800
94511-00600
94524-00600
94611-10600
94613-10800
95381-02020
