FJ40V-BC (1972)

Toyota Land Cruiser Van

Production Apr 1972 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7501)BJ4#,FJ4# ; (7501-7509)TPC

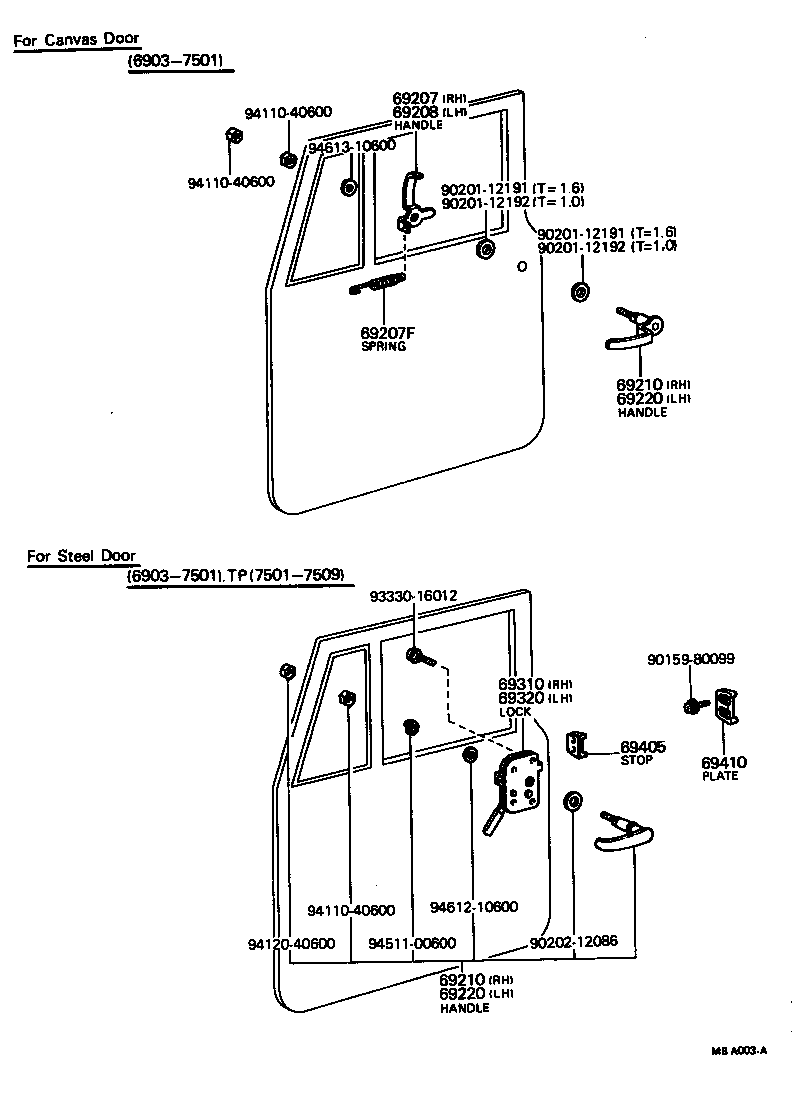

Click highlighted areas on diagram

diagram 69207 69207F 69208 69210 69210 69220 69220 69310 69320 69405 69410 9015980099 9020112191 9020112191 9020112192 9020112192 9020212086 9333016012 9411040600 9411040600 9411040600 9412040600 9451100600 9461210600 9461310600
Part # Description Qty Price
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69201-90901

BJ4#,FJ4#

FOR STEEL DOOR

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69201-90901

BJ4#,FJ4#

FOR STEEL DOOR

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69201-90901

BJ4#,FJ4#

FOR STEEL DOOR

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69201-90901

BJ4#,FJ4#

FOR STEEL DOOR

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-60031

BJ4#,FJ4#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-60031

BJ4#,FJ4#

 1
69405 - STOP SUB-ASSY, DOOR DOWN
69405-95010

FJ4#

 3
69405-90300

BJ4#,FJ4#

 3
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
67451-60020

FJ4#

 2
67451-90301

BJ4#,FJ4#

 2
Common parts
90159-80099
90201-12191
90201-12192
90202-12086
93330-16012
94110-40600
94120-40600
94511-00600
94612-10600
94613-10600
