FJ40V-BC (1972)

Toyota Land Cruiser Van

Production Apr 1972 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7902)BJ4#,FJ4#

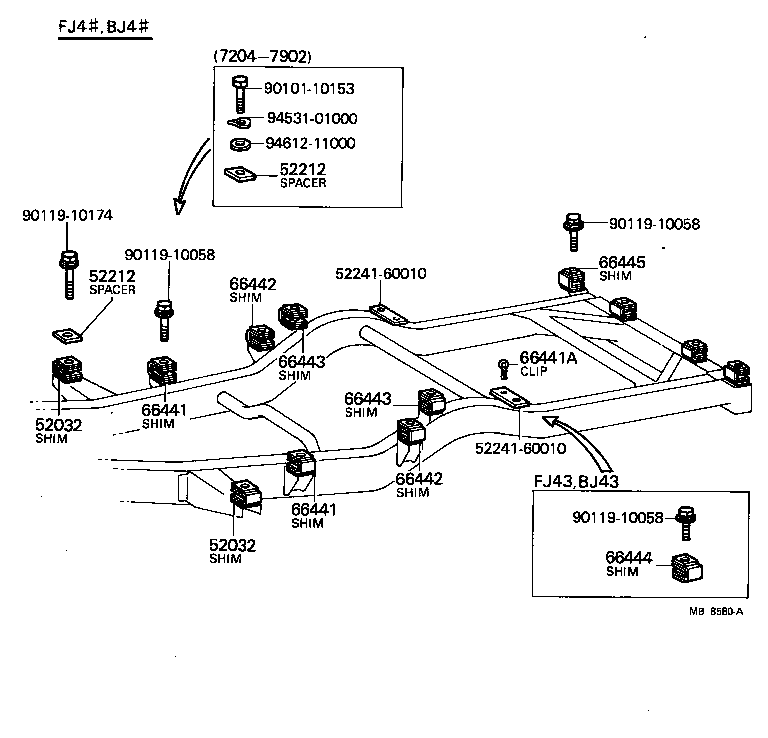

Click highlighted areas on diagram

diagram 52032 52032 52212 52212 5224160010 5224160010 66441 66441 66441A 66442 66442 66443 66443 66444 66445 9010110153 9011910058 9011910058 9011910058 9011910174 9453101000 9461211000
Part # Description Qty Price
52032 - SHIM SUB-ASSY, COWL BODY MOUNTING
52032-90300

BJ4#,FJ4#

 2
52032 - SHIM SUB-ASSY, COWL BODY MOUNTING
52032-90300

BJ4#,FJ4#

 2
66441 - SHIM, MOUNTING, NO.1
52033-90302

BJ4#,FJ4#

 2
66441 - SHIM, MOUNTING, NO.1
52033-90302

BJ4#,FJ4#

 2
66441A - CLIP, MOUNTING SHIM SET
90467-11003

BJ40,FJ4#

 4
66442 - SHIM, MOUNTING, NO.2
52033-90302

BJ4#,FJ4#

T=22.8

 2
66442 - SHIM, MOUNTING, NO.2
52033-90302

BJ4#,FJ4#

T=22.8

 2
66443 - SHIM, MOUNTING, NO.3
52033-90302

FJ4#

 2
66443 - SHIM, MOUNTING, NO.3
52033-90302

FJ4#

 2
66445 - SHIM, MOUNTING, REAR
52033-90302

FJ4#

 4
Common parts
52241-60010
90101-10153
90119-10058
90119-10174
94531-01000
94612-11000
