FJ40V-BC (1972)

Toyota Land Cruiser Van

Production Apr 1972 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7209)

Click highlighted areas on diagram

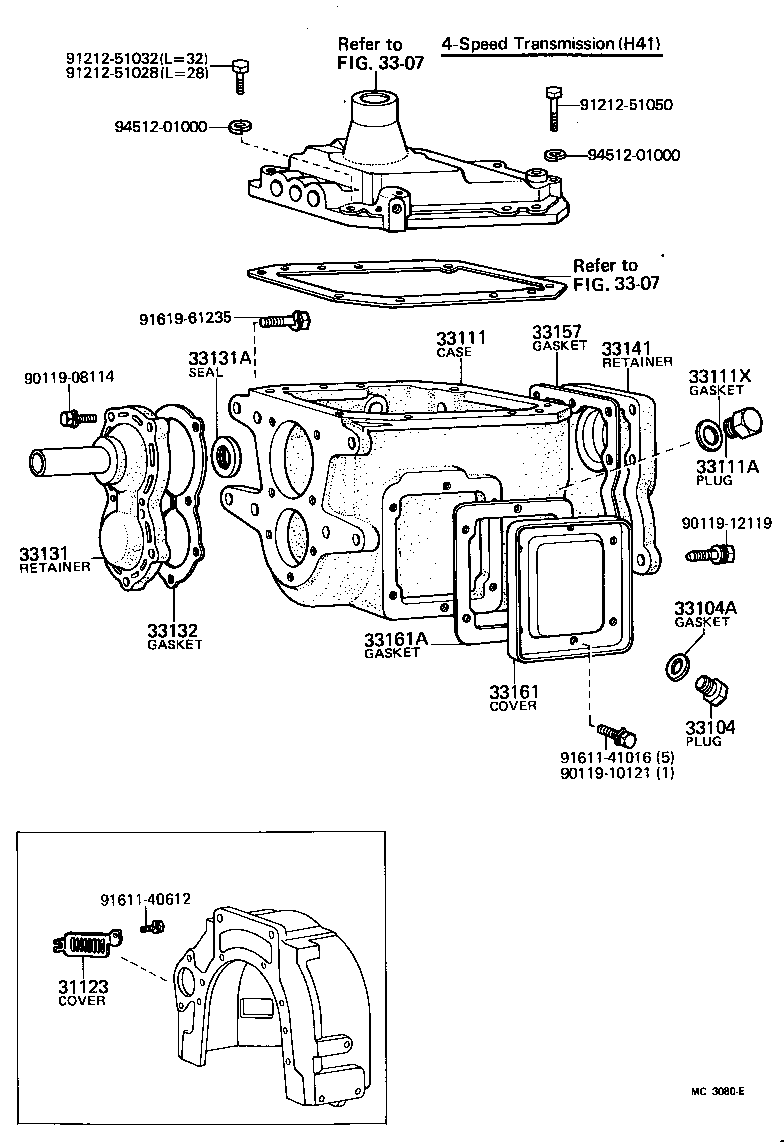

diagram 31123 3307 3307 3307 33104 33104A 33111 33111A 33111X 33115 33131 33131A 33132 33291 9111240812 9111251340 9161140612 9161140825 9451200800 9451201300 9454101000
Part # Description Qty Price
31123 - COVER, CLUTCH HOUSING, NO.2
31123-55020

FJ4#

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
33104-30010

FJ4#,55

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

BJ4#,FJ4#,5#

 1
33111 - CASE, MANUAL TRANSMISSION
33111-60020

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33111-60031

FJ4#,55

FOR 4-SPEED TRANSMISSION

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

BJ4#,FJ4#,5#

 1
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

BJ4#,FJ4#,5#

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-61010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-28003

BJ4#,FJ4#,5#

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-61010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33291 - STOPPER, SHIFT FORK
33291-61010

FJ4#,55

 1
Common parts
91112-40812
91112-51340
91611-40612
91611-40825
94512-00800
94512-01300
94541-01000
Linked diagrams
3307

(6903-7309)

Click highlighted areas on diagram

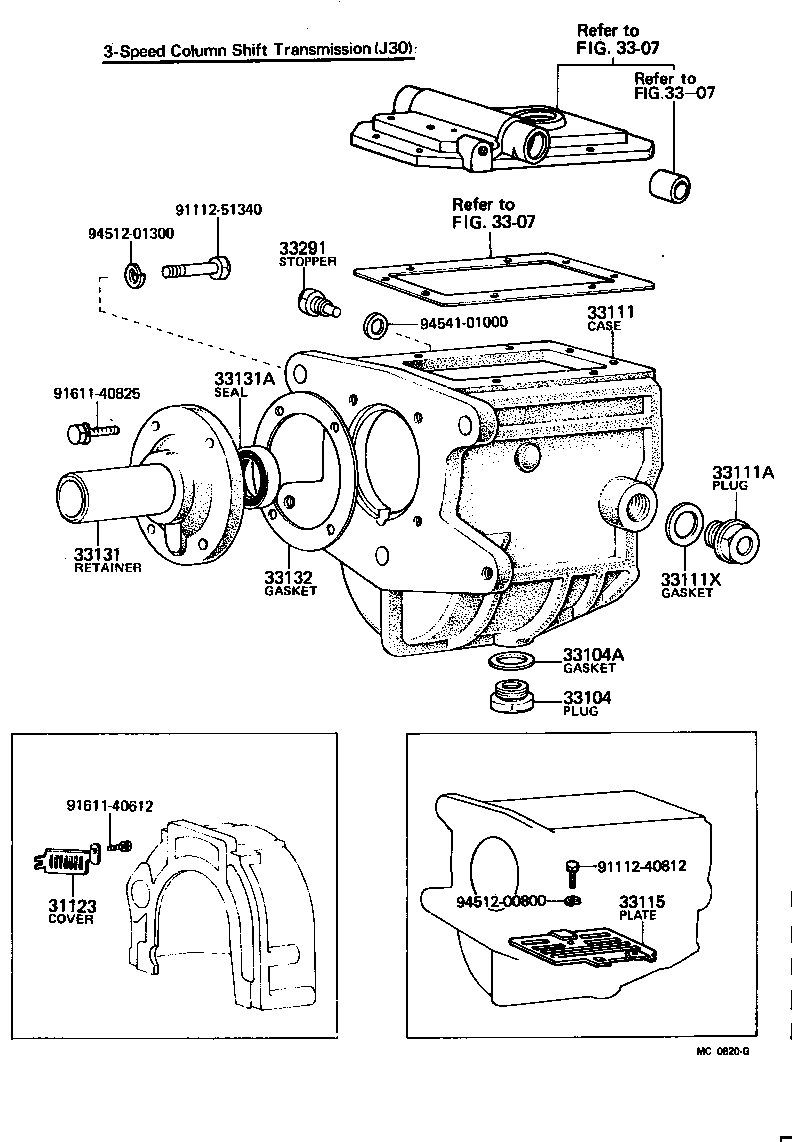

diagram 31123 3307 3307 33104 33104A 33111 33111A 33111X 33131 33131A 33132 33141 33157 33161 33161A 9011908114 9011910121 9011912119 9121251028 9121251032 9121251050 9161140612 9161141016 9161961235 9451201000 9451201000
Part # Description Qty Price
31123 - COVER, CLUTCH HOUSING, NO.2
31123-55020

FJ4#

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
33104-30010

FJ4#,55

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

BJ4#,FJ4#,5#

 1
33111 - CASE, MANUAL TRANSMISSION
33111-60020

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33111-60031

FJ4#,55

FOR 4-SPEED TRANSMISSION

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

BJ4#,FJ4#,5#

 1
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

BJ4#,FJ4#,5#

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-61010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-28003

BJ4#,FJ4#,5#

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-61010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33141 - RETAINER, TRANSMISSION BEARING, REAR
33141-60010

FJ4#,55

 1
33157 - GASKET, TRANSMISSION CASE, NO.2
33142-36011

BJ4#,FJ4#,55

 1
33142-36010

FJ4#,55

 1
Common parts
90119-08114
90119-10121
90119-12119
91212-51028
91212-51032
91212-51050
91611-40612
91611-41016
91619-61235
94512-01000
Linked diagrams
3307

(6903-7501)FJ4#,55

Click highlighted areas on diagram

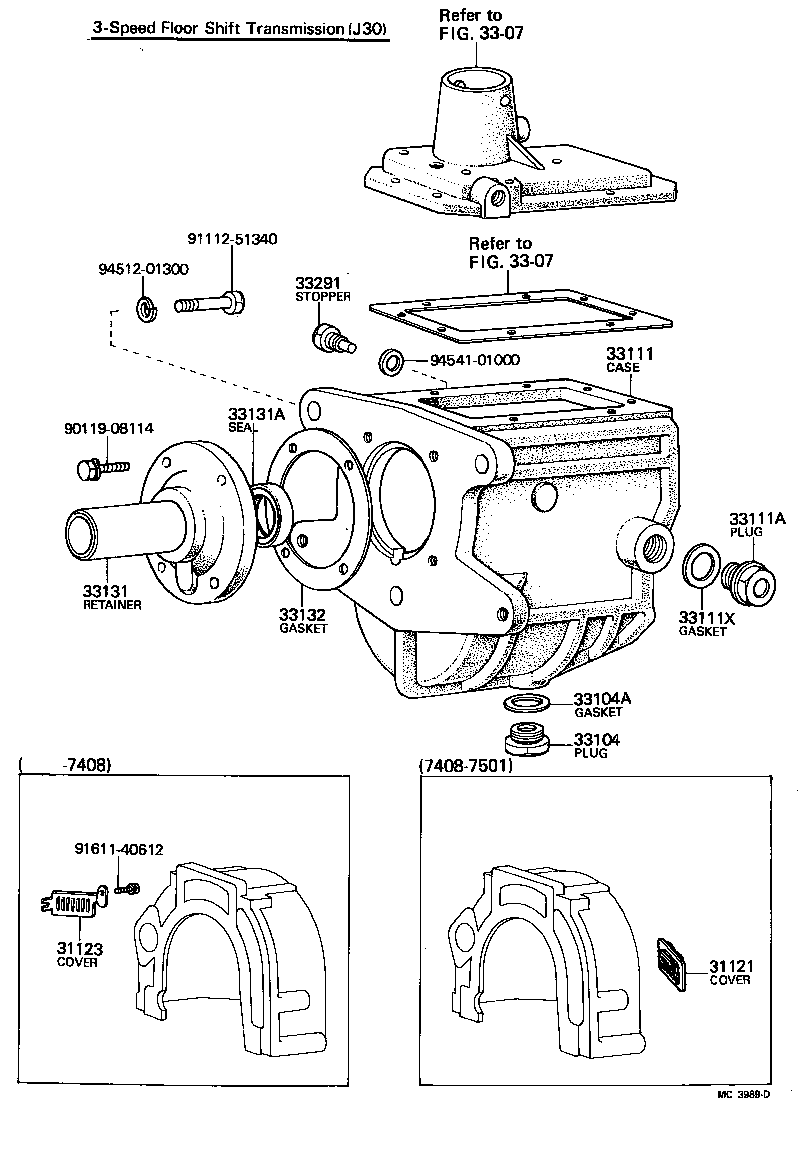

diagram 31121 31123 3307 3307 33104 33104A 33111 33111A 33111X 33131 33131A 33132 33291 9011908114 9111251340 9161140612 9451201300 9454101000
Part # Description Qty Price
31123 - COVER, CLUTCH HOUSING, NO.2
31123-55020

FJ4#

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
33104-30010

FJ4#,55

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

BJ4#,FJ4#,5#

 1
33111 - CASE, MANUAL TRANSMISSION
33111-60020

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33111-60031

FJ4#,55

FOR 4-SPEED TRANSMISSION

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

BJ4#,FJ4#,5#

 1
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

BJ4#,FJ4#,5#

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-61010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-28003

BJ4#,FJ4#,5#

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-61010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33291 - STOPPER, SHIFT FORK
33291-61010

FJ4#,55

 1
Common parts
90119-08114
91112-51340
91611-40612
94512-01300
94541-01000
Linked diagrams
3307
