FJ40V-BC (1972)

Toyota Land Cruiser Van

Production Apr 1972 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)F,2F

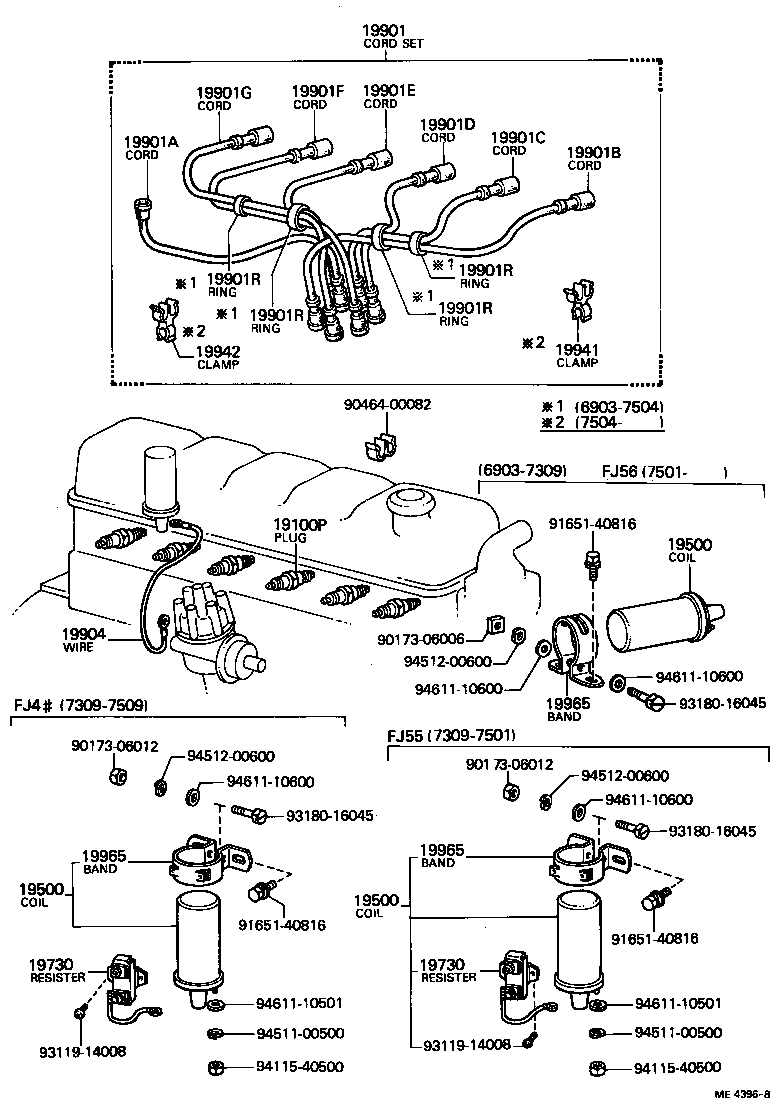

Click highlighted areas on diagram

diagram 19100P 19500 19500 19500 19730 19730 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19901R 19901R 19901R 19901R 19904 19941 19942 19965 19965 19965 9017306006 9017306012 9017306012 9046400082 9165140816 9165140816 9165140816 9311914008 9311914008 9318016045 9318016045 9318016045 9411540500 9411540500 9451100500 9451100500 9451200600 9451200600 9451200600 9461110501 9461110501 9461110600 9461110600 9461110600 9461110600
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01004

F..FJ4#,55

W17ES

 6
19500 - COIL ASSY, IGNITION
90919-02004

F..FJ4#,55

 1
19500 - COIL ASSY, IGNITION
90919-02004

F..FJ4#,55

 1
19500 - COIL ASSY, IGNITION
90919-02004

F..FJ4#,55

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
19901-60060

F..FJ4#,55

 1
19901A - CORD, COIL RESISTIVE
90919-13007

F..FJ4#,55

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12026

F..FJ4#,55

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12029

F..FJ4#,55

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12006

F..FJ4#,55

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12006

F..FJ4#,55

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12029

F..FJ4#,55

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12026

F..FJ4#,55

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

F,2F..FJ4#,5#

T=4.0

 2
90562-15001

F,2F..FJ4#,5#

T=10.0

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

F,2F..FJ4#,5#

T=4.0

 2
90562-15001

F,2F..FJ4#,5#

T=10.0

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

F,2F..FJ4#,5#

T=4.0

 2
90562-15001

F,2F..FJ4#,5#

T=10.0

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

F,2F..FJ4#,5#

T=4.0

 2
90562-15001

F,2F..FJ4#,5#

T=10.0

 2
19904 - WIRE SUB-ASSY, DISTRIBUTOR PRIMARY
19904-60010

F..FJ4#,55

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03003

F,2F..FJ4#,5#

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03003

F,2F..FJ4#,5#

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03003

F,2F..FJ4#,5#

 1
Common parts
90173-06006
90173-06012
90464-00082
91651-40816
93119-14008
93180-16045
94115-40500
94511-00500
94512-00600
94611-10501
94611-10600
