FJ40V-B (1969)

Toyota Land Cruiser Van

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7309)FJ4#

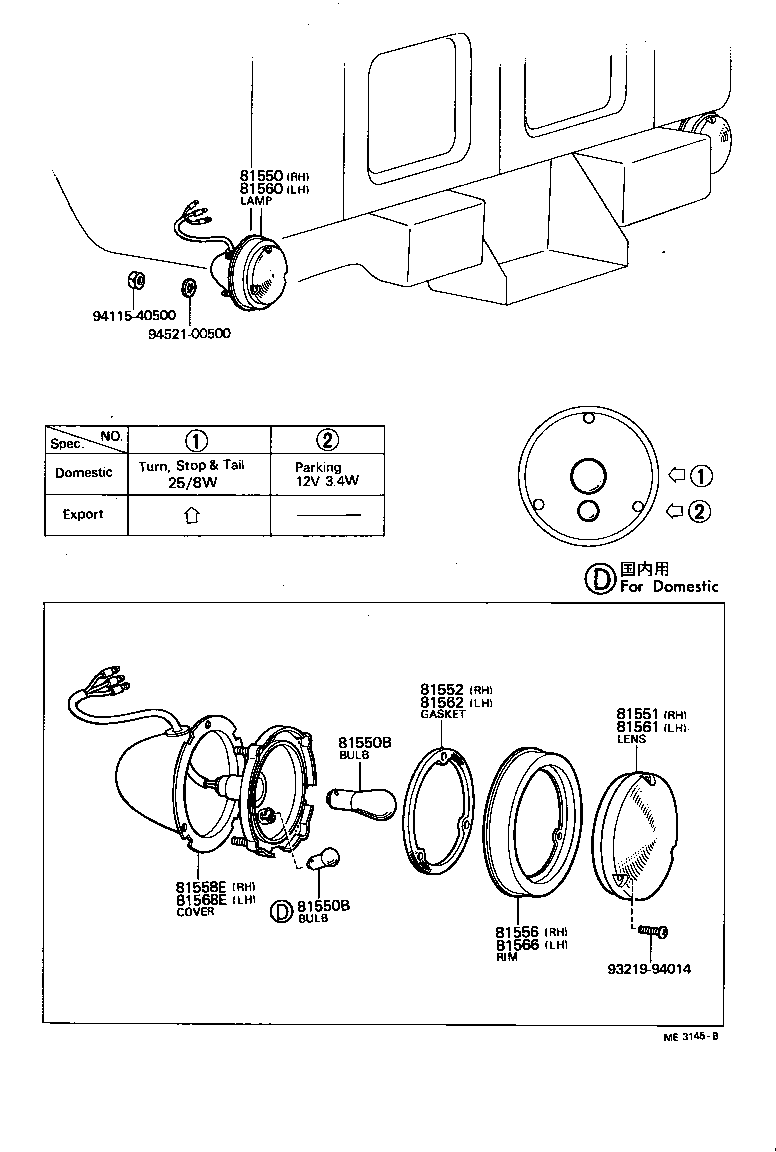

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81551 81552 81556 81558E 81560 81561 81562 81566 81568E 9321994014 9411540500 9452100500
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-60160

FJ4#

RED

 1
81550-60130

FJ4#

RED

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-22250

FJ4#,55

12V 25/8W

 2
99132-11034

FJ4#

12V 3.4W,12V 3.4W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-22250

FJ4#,55

12V 25/8W

 2
99132-11034

FJ4#

12V 3.4W,12V 3.4W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-60130

FJ4#

RED

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-60130

FJ4#

 1
81556 - RIM, REAR COMBINATION LAMP, RH
81556-60130

FJ4#

 1
81558E - COVER, REAR COMBINATION LAMP, RH
81558-60130

FJ4#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81550-60130

FJ4#

RED

 1
81550-60160

FJ4#

RED

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81551-60130

FJ4#

RED

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-60130

FJ4#

 1
81566 - RIM, REAR COMBINATION LAMP, LH
81556-60130

FJ4#

 1
81568E - COVER, REAR COMBINATION LAMP, LH
81558-60130

FJ4#

 1
Common parts
93219-94014
94115-40500
94521-00500
