FJ40V-B (1969)

Toyota Land Cruiser Van

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

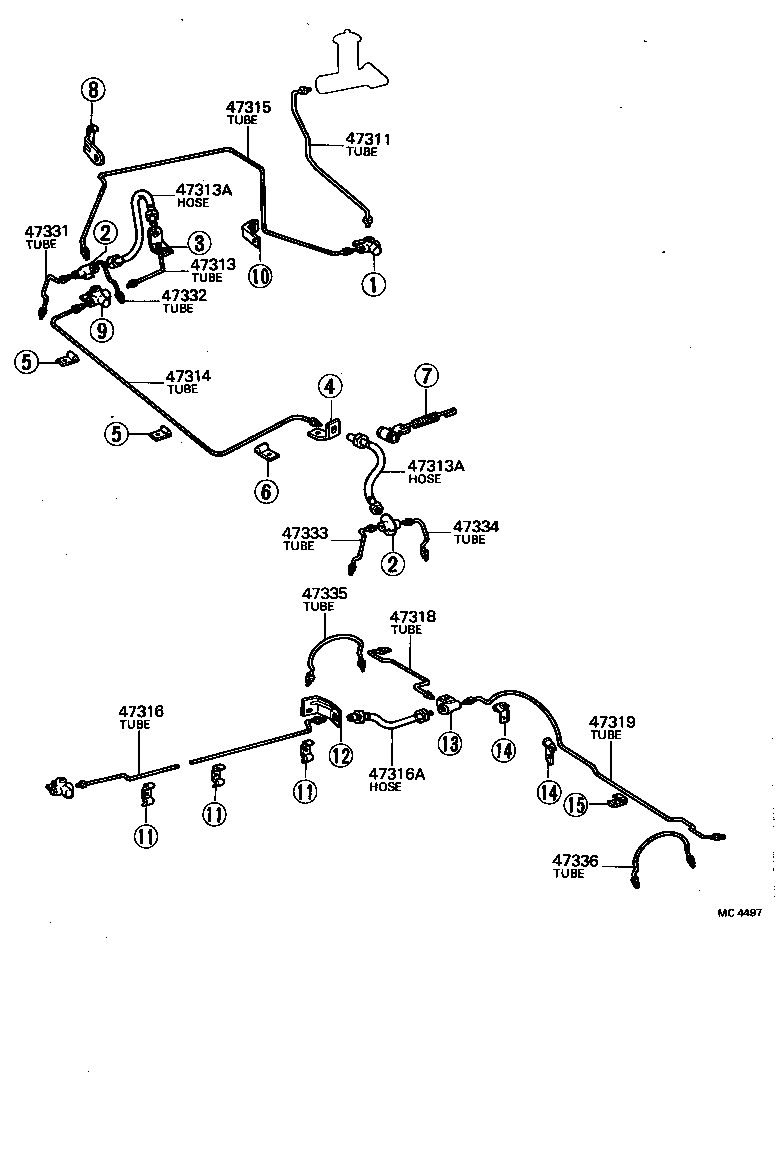

(6903-7109)FJ4#

Click highlighted areas on diagram

diagram 47311 47313 47313A 47313A 47314 47315 47316 47316A 47318 47319 47331 47332 47333 47334 47335 47336
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-60021

FJ4#

FOR SINGLE MASTER CYLINDER

 1
47311-60020

FJ4#

FOR SINGLE MASTER CYLINDER

 1
47311-60090

FJ4#

FOR TANDEM MASTER CYLINDER

 1
47311-60090

FJ40

FOR TANDEM MASTER CYLINDER

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60021

FJ4#

 1
47313-60020

FJ4#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02138

FJ4#

 2
96920-31221

BJ4#,FJ4#,55

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02138

FJ4#

 2
96920-31221

BJ4#,FJ4#,55

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-60020

FJ4#

 1
47314-60021

FJ4#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-60010

FJ40

FOR TANDEM MASTER CYLINDER

 1
47315-60070

FJ4#

FOR SINGLE MASTER CYLINDER

 1
47312-60010

FJ4#

FOR SINGLE MASTER CYLINDER

 1
47315-60010

FJ4#

FOR TANDEM MASTER CYLINDER

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-60021

FJ40

 1
47316-60020

FJ40

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02027

FJ4#

 1
90947-02135

FJ4#

 1
90947-02133

BJ4#,FJ4#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60020

FJ40

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-60020

FJ40

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-60011

FJ4#

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-60011

FJ4#

 1
47333 - TUBE, REAR BRAKE, NO.12
47331-60011

FJ4#

 1
47334 - TUBE, REAR BRAKE, NO.13
47332-60011

FJ4#

 1
47335 - TUBE, REAR BRAKE, NO.14
47333-35010

FJ4#

 1
47336 - TUBE, REAR BRAKE, NO.15
47333-35010

FJ4#

 1

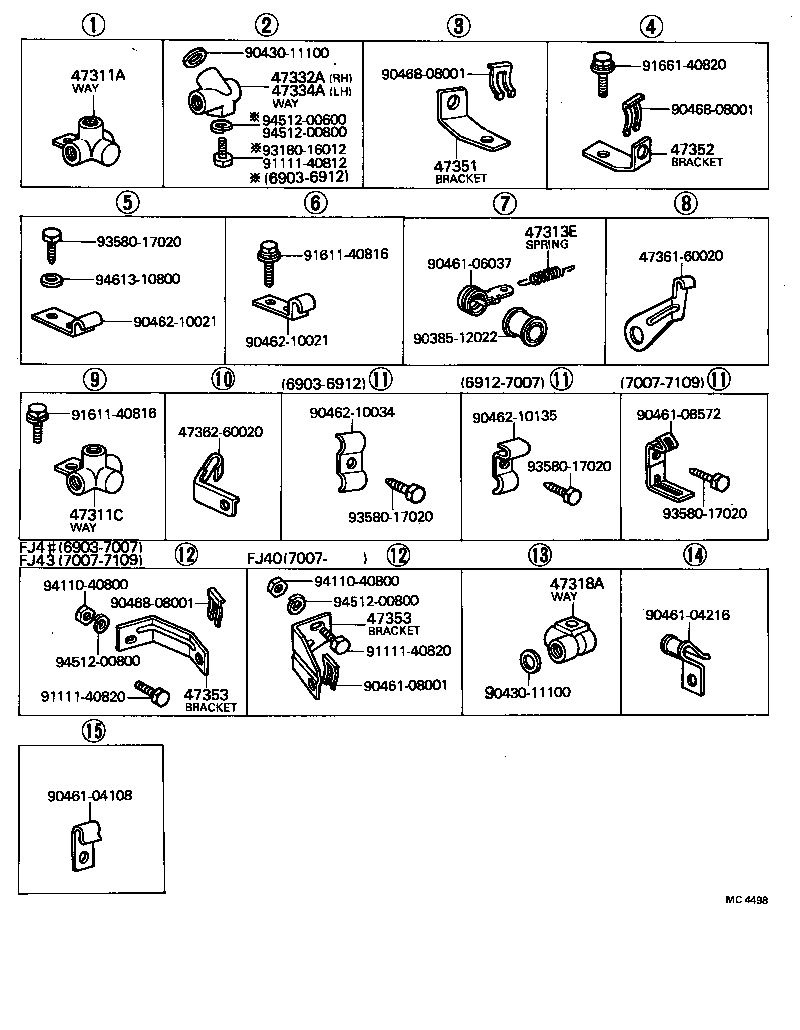

(6903-7109)FJ4#

Click highlighted areas on diagram

diagram 47311A 47311C 47313E 47318A 47332A 47334A 47351 47352 47353 47353 4736160020 4736260020 9038512022 9043011100 9043011100 9046104108 9046104216 9046106037 9046108001 9046108572 9046210021 9046210021 9046210034 9046210135 9046808001 9046808001 9046808001 9111140812 9111140820 9111140820 9161140816 9161140816 9166140820 9318016012 9358017020 9358017020 9358017020 9358017020 9411040800 9411040800 9451200600 9451200800 9451200800 9451200800 9461310800
Part # Description Qty Price
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-09015

FJ4#

FOR SINGLE MASTER CYLINDER

 2
90413-10115

FJ4#

FOR SINGLE MASTER CYLINDER

 1
90412-10039

FJ40

FOR TANDEM MASTER CYLINDER

 1
47311C - UNION(FOR FRONT BRAKE TUBE)
90413-09015

FJ4#

 1
47313E - SPRING, TENSION(FOR FRONT FLEXIBLE HOSE)
90506-09043

FJ4#

 2
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-09007

FJ4#

 1
47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
90413-09003

FJ4#

 1
90413-09085

FJ4#

 1
47334A - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE)
90413-09003

FJ4#

 1
90413-09085

FJ4#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-60020

FJ4#

 1
47351-60021

FJ4#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-60020

FJ4#

 1
47352-60021

FJ4#

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-60010

FJ4#

 1
47355-60010

FJ40

 1
47353-60020

FJ40

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-60010

FJ4#

 1
47355-60010

FJ40

 1
47353-60020

FJ40

 1
Common parts
47361-60020
47362-60020
90385-12022
90430-11100
90461-04108
90461-04216
90461-06037
90461-08001
90461-08572
90462-10021
90462-10034
90462-10135
90468-08001
91111-40812
91111-40820
91611-40816
91661-40820
93180-16012
93580-17020
94110-40800
94512-00600
94512-00800
94613-10800

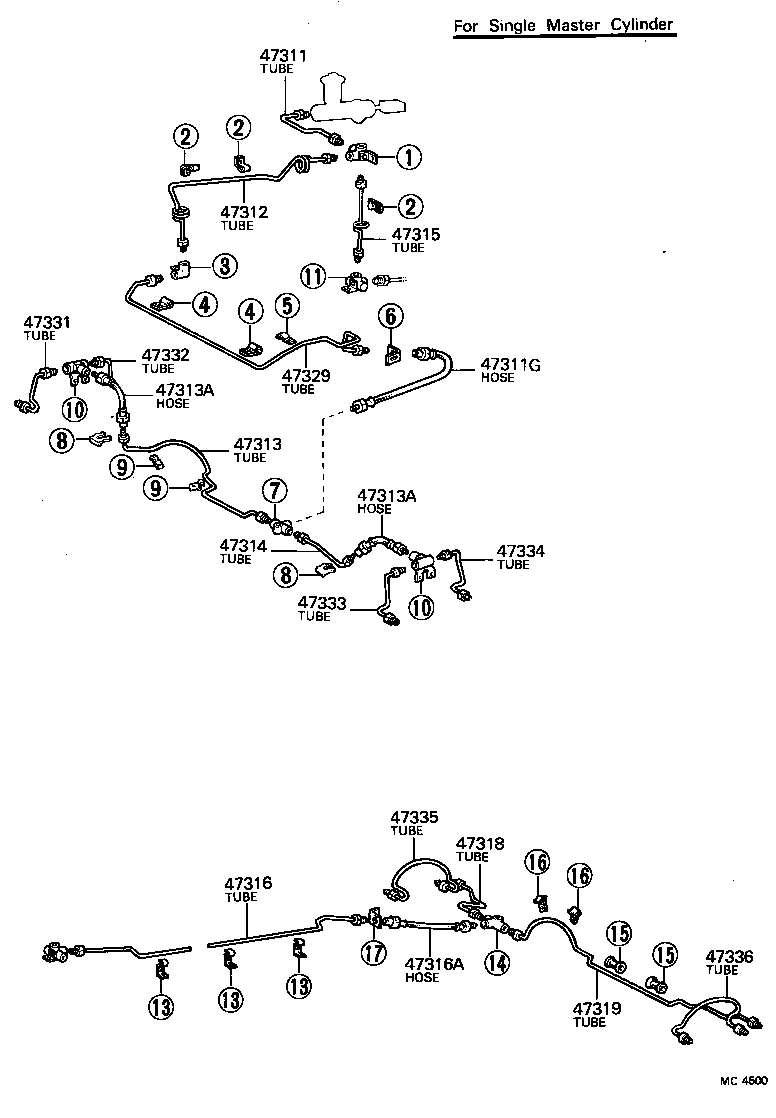

(7109-7309)FJ4#

Click highlighted areas on diagram

diagram 47311 47311G 47312 47313 47313A 47313A 47314 47315 47316 47316A 47318 47319 47329 47331 47332 47333 47334 47335 47336
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-60021

FJ4#

FOR SINGLE MASTER CYLINDER

 1
47311-60020

FJ4#

FOR SINGLE MASTER CYLINDER

 1
47311-60090

FJ4#

FOR TANDEM MASTER CYLINDER

 1
47311-60090

FJ40

FOR TANDEM MASTER CYLINDER

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02078

FJ4#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-60060

FJ4#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60021

FJ4#

 1
47313-60020

FJ4#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02138

FJ4#

 2
96920-31221

BJ4#,FJ4#,55

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02138

FJ4#

 2
96920-31221

BJ4#,FJ4#,55

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-60020

FJ4#

 1
47314-60021

FJ4#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-60010

FJ40

FOR TANDEM MASTER CYLINDER

 1
47315-60070

FJ4#

FOR SINGLE MASTER CYLINDER

 1
47312-60010

FJ4#

FOR SINGLE MASTER CYLINDER

 1
47315-60010

FJ4#

FOR TANDEM MASTER CYLINDER

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-60021

FJ40

 1
47316-60020

FJ40

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02027

FJ4#

 1
90947-02135

FJ4#

 1
90947-02133

BJ4#,FJ4#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60020

FJ40

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-60020

FJ40

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-60011

FJ4#

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-60011

FJ4#

 1
47333 - TUBE, REAR BRAKE, NO.12
47331-60011

FJ4#

 1
47334 - TUBE, REAR BRAKE, NO.13
47332-60011

FJ4#

 1
47335 - TUBE, REAR BRAKE, NO.14
47333-35010

FJ4#

 1
47336 - TUBE, REAR BRAKE, NO.15
47333-35010

FJ4#

 1
