FJ40-C (1969)

Toyota Land Cruiser Van

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)

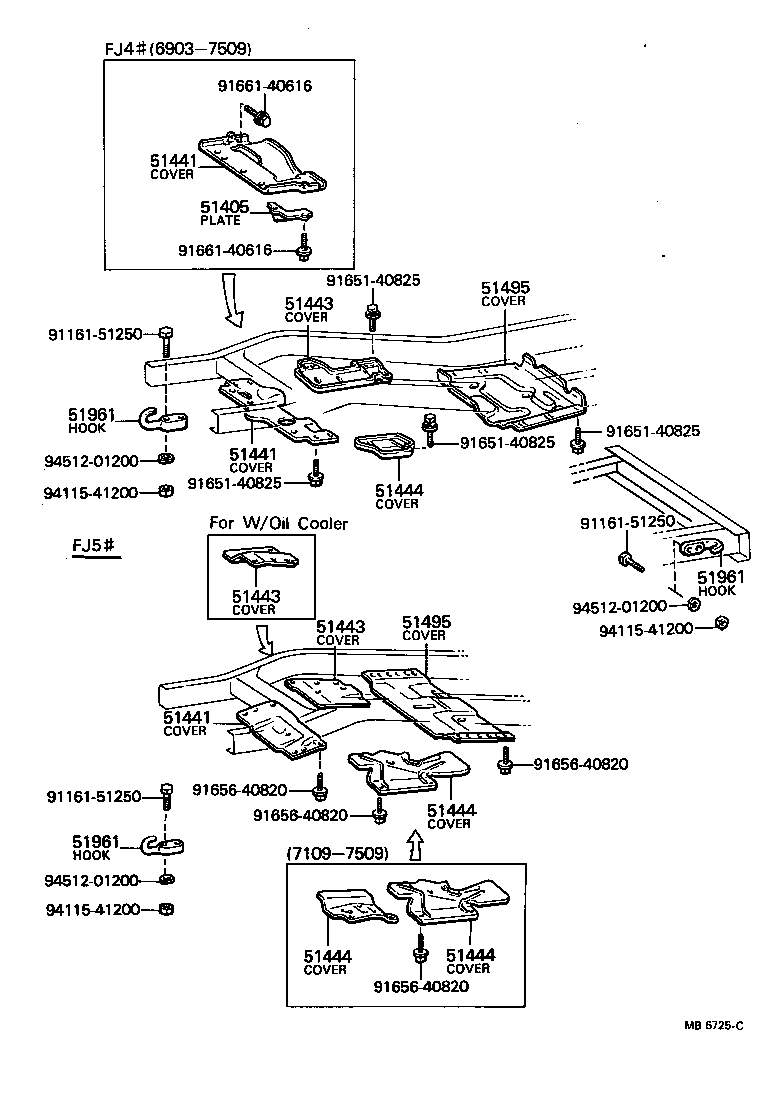

Click highlighted areas on diagram

diagram 51405 51441 51441 51441 51443 51443 51443 51444 51444 51444 51444 51495 51495 51961 51961 51961 9116151250 9116151250 9116151250 9165140825 9165140825 9165140825 9165140825 9165640820 9165640820 9165640820 9165640820 9166140616 9166140616 9411541200 9411541200 9411541200 9451201200 9451201200 9451201200
Part # Description Qty Price
51405 - PLATE SUB-ASSY, ENGINE FRONT UNDER COVER HOLE
51405-60011

FJ4#

 1
51441 - COVER, ENGINE UNDER, NO.1
51408-60011

FJ4#

 1
51441 - COVER, ENGINE UNDER, NO.1
51408-60011

FJ4#

 1
51441 - COVER, ENGINE UNDER, NO.1
51408-60011

FJ4#

 1
51443 - COVER, ENGINE UNDER, REAR RH
51453-60010

FJ4#

 1
51443 - COVER, ENGINE UNDER, REAR RH
51453-60010

FJ4#

 1
51443 - COVER, ENGINE UNDER, REAR RH
51453-60010

FJ4#

 1
51444 - COVER, ENGINE UNDER, REAR LH
51454-60010

FJ4#

 1
51444 - COVER, ENGINE UNDER, REAR LH
51454-60010

FJ4#

 1
51444 - COVER, ENGINE UNDER, REAR LH
51454-60010

FJ4#

 1
51444 - COVER, ENGINE UNDER, REAR LH
51454-60010

FJ4#

 1
51495 - COVER, TRANSMISSION UNDER
51495-60011

FJ4#

3-SPEED

 1
51495 - COVER, TRANSMISSION UNDER
51495-60011

FJ4#

3-SPEED

 1
51961 - HOOK, NO.1
51961-60010

BJ4#,FJ4#,5#

FRONT

 2
51961 - HOOK, NO.1
51961-60010

BJ4#,FJ4#,5#

FRONT

 2
51961 - HOOK, NO.1
51961-60010

BJ4#,FJ4#,5#

FRONT

 2
Common parts
91161-51250
91651-40825
91656-40820
91661-40616
94115-41200
94512-01200
