BJ61V-MMZ (1982)
Toyota Land Cruiser Van
Production
Oct 1982
-
Aug 1986
Engine
3B
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

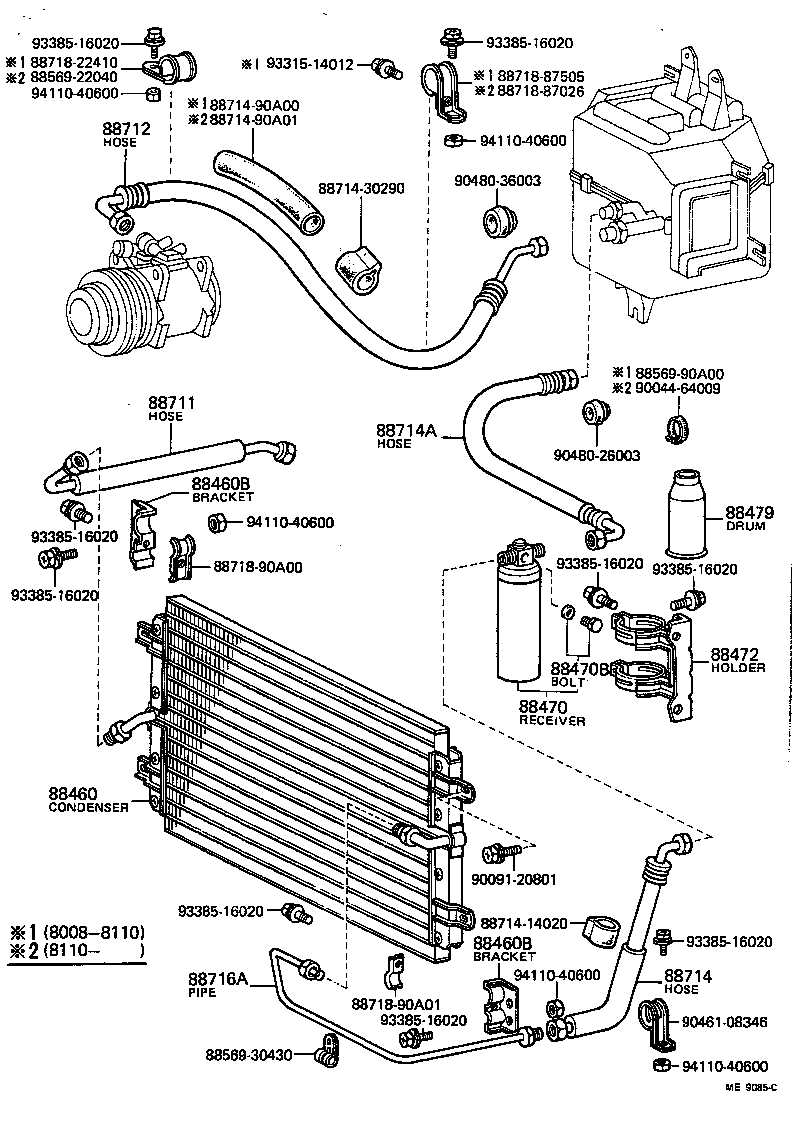

(8008-8411)BJ6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-90A00 |
BJ6#,FJ6# |
1 | ||
| 88460-90A06 |
BJ61,FJ62 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-90A01 |
BJ6#,FJ6#,HJ60 LH |
1 | ||
| 88688-90A00 |
BJ6#,FJ6# RH |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-90A01 |
BJ6#,FJ6#,HJ60 LH |
1 | ||
| 88688-90A00 |
BJ6#,FJ6# RH |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-90A00 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
BJ6#,FJ6#,HJ6# 400G |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-90A05 |
BJ61 |
1 | ||
| 88711-90A05 |
BJ61 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-90A10 |
BJ61 |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-90A00 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 88721-90A05 |
BJ61,FJ62,HJ60 |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88721-90A01 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-90A00 |
BJ6#,FJ6# |
1 | ||
| Common parts | ||||
| 88569-22040 | ||||
| 88569-30430 | ||||
| 88569-90A00 | ||||
| 88714-14020 | ||||
| 88714-30290 | ||||
| 88714-90A00 | ||||
| 88714-90A01 | ||||
| 88718-22410 | ||||
| 88718-87026 | ||||
| 88718-87505 | ||||
| 88718-90A00 | ||||
| 88718-90A01 | ||||
| 90044-64009 | ||||
| 90091-20801 | ||||
| 90461-08346 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93315-14012 | ||||
| 93385-16020 | ||||
| 94110-40600 | ||||

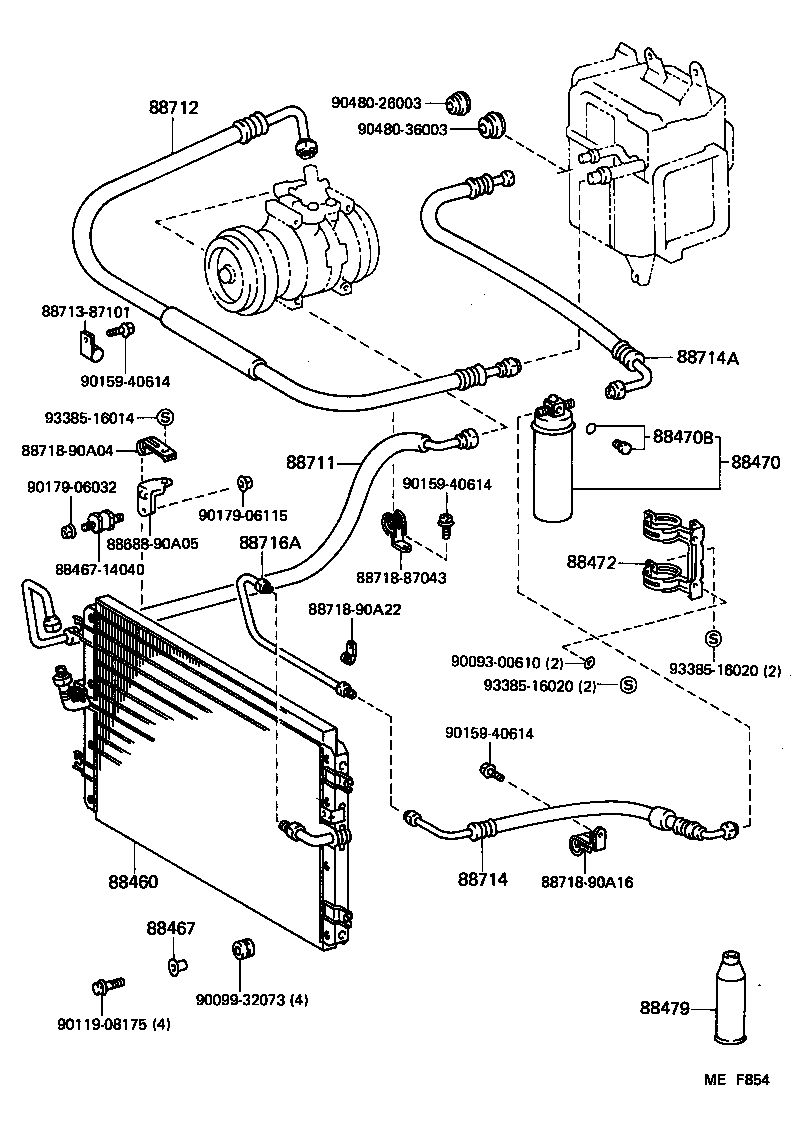

(8411-8608)BJ61
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-90A00 |
BJ6#,FJ6# |
1 | ||
| 88460-90A06 |
BJ61,FJ62 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-90A00 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
BJ6#,FJ6#,HJ6# 400G |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-90A05 |
BJ61 |
1 | ||
| 88711-90A05 |
BJ61 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-90A10 |
BJ61 |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-90A00 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 88721-90A05 |
BJ61,FJ62,HJ60 |
1 | ||
| 88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2 | ||||
| 88721-90A01 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-90A00 |
BJ6#,FJ6# |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88688-90A05 | ||||
| 88713-87101 | ||||
| 88718-87043 | ||||
| 88718-90A04 | ||||
| 88718-90A16 | ||||
| 88718-90A22 | ||||
| 90093-00610 | ||||
| 90099-32073 | ||||
| 90119-08175 | ||||
| 90159-40614 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93385-16014 | ||||
| 93385-16020 | ||||
