BJ61V-KC (1982)
Toyota Land Cruiser Van
Production
Oct 1982
-
Aug 1986
Engine
3B
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8510)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87248D - PIPE, HEATER WATER INLET, D | ||||
| 87248-90A23 |
BJ61 |
1 | ||
| 87248-90A21 |
BJ61 |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87248-90A19 |
BJ61,FJ61,HJ60 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-90A23 |
BJ61 |
1 | ||
| 87245-90A31 |
BJ61 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-90A05 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-90A05 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99552-20100 |
BJ61,FJ61,HJ60 L=100 |
1 | ||
| 99556-20100 |
BJ61,FJ61,HJ60 長さ=100 |
1 | ||
| 99556-20100 |
BJ61 長さ=100 |
1 | ||
| Common parts | ||||
| 87124-90A00 | ||||
| 87124-90A03 | ||||
| 87124-90A07 | ||||
| 90460-22073 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 96112-10220 | ||||
(8008-8411)BJ6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30200 |
BJ6# |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30200 |
BJ6# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-90A00 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-90A00 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90A18 |
BJ6# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90A18 |
BJ6# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-90A00 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-90A00 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99556-30100 |
BJ61 *H,L=55 |
1 | ||
| 99556-30055 |
BJ61 *H,L=55 |
1 | ||
| 87247-20051 |
BJ6# # |
1 | ||
| 87245-90A26 |
BJ61 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99556-30100 |
BJ61 *H,L=55 |
1 | ||
| 99556-30055 |
BJ61 *H,L=55 |
1 | ||
| 87247-20051 |
BJ6# # |
1 | ||
| 87245-90A26 |
BJ61 |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-90K19 |
BJ61 |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-90K19 |
BJ61 |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-90K18 |
BJ61 |
1 | ||
| 87248-60260 |
BJ6# |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-90K18 |
BJ61 |
1 | ||
| 87248-60260 |
BJ6# |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-90A20 |
BJ61 |
1 | ||
| 87248-90A26 |
BJ61 |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-90A20 |
BJ61 |
1 | ||
| 87248-90A26 |
BJ61 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
BJ6#,HJ6# LH |
1 | ||
| 87251-29020 |
BJ6# W/RR HEATER,RH |
1 | ||
| 87251-90K00 |
BJ61 W/RR HEATER,RH |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
BJ6#,HJ6# LH |
1 | ||
| 87251-29020 |
BJ6# W/RR HEATER,RH |
1 | ||
| 87251-90K00 |
BJ61 W/RR HEATER,RH |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
BJ6#,HJ6# LH |
1 | ||
| 87251-29020 |
BJ6# W/RR HEATER,RH |
1 | ||
| 87251-90K00 |
BJ61 W/RR HEATER,RH |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
BJ6#,HJ6# LH |
1 | ||
| 87251-29020 |
BJ6# W/RR HEATER,RH |
1 | ||
| 87251-90K00 |
BJ61 W/RR HEATER,RH |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20100 |
BJ61 *H,L=55 |
1 | ||
| 99556-20055 |
BJ61 *H,L=55 |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20100 |
BJ61 *H,L=55 |
1 | ||
| 99556-20055 |
BJ61 *H,L=55 |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-90A13 |
BJ6# |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-90A13 |
BJ6# |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-90A22 |
BJ61 |
1 | ||
| 87245-90A32 |
BJ61 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-90A22 |
BJ61 |
1 | ||
| 87245-90A32 |
BJ61 |
1 | ||
| Common parts | ||||
| 87124-90A01 | ||||
| 87124-90A04 | ||||
| 87124-90A05 | ||||
| 87124-90A06 | ||||
| 90460-22073 | ||||
| 90460-24039 | ||||
| 90480-01015 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91655-40616 | ||||
| 91665-40616 | ||||
| 96112-10220 | ||||
| 96112-10250 | ||||
| 96533-13017 | ||||

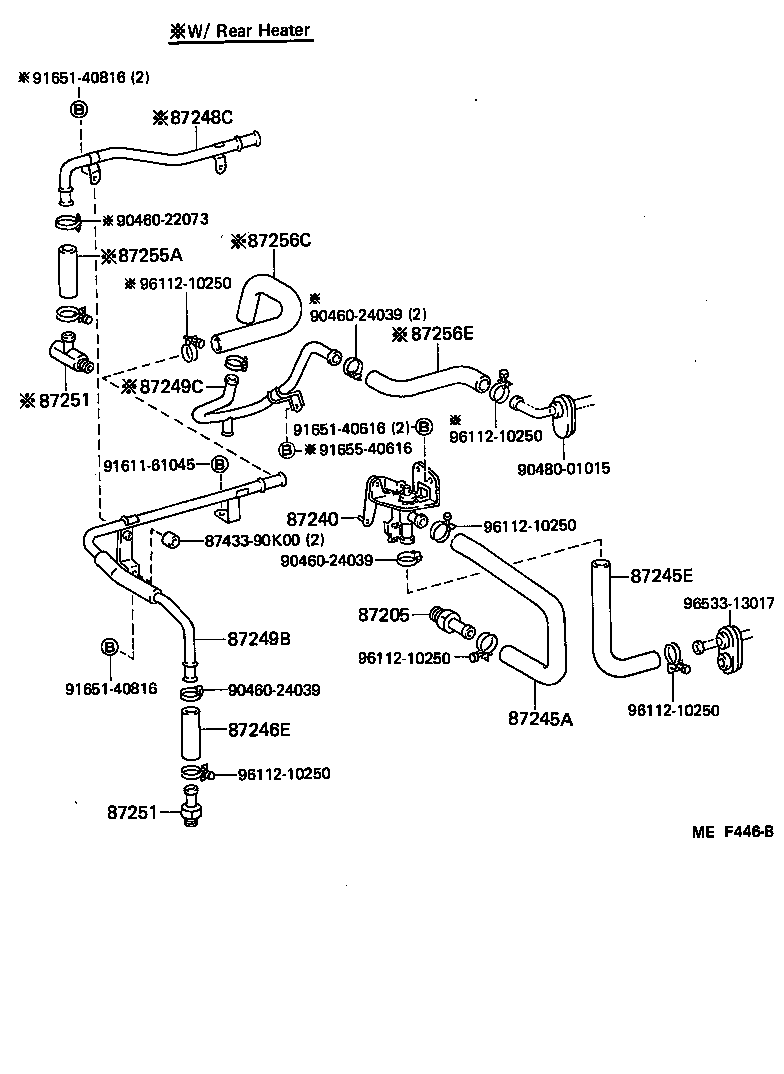

(8411-8608)BJ61
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30200 |
BJ6# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-90A00 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90A18 |
BJ6# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-90A00 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99556-30100 |
BJ61 *H,L=55 |
1 | ||
| 99556-30055 |
BJ61 *H,L=55 |
1 | ||
| 87247-20051 |
BJ6# # |
1 | ||
| 87245-90A26 |
BJ61 |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-90K19 |
BJ61 |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-90K18 |
BJ61 |
1 | ||
| 87248-60260 |
BJ6# |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-90A20 |
BJ61 |
1 | ||
| 87248-90A26 |
BJ61 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
BJ6#,HJ6# LH |
1 | ||
| 87251-29020 |
BJ6# W/RR HEATER,RH |
1 | ||
| 87251-90K00 |
BJ61 W/RR HEATER,RH |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
BJ6#,HJ6# LH |
1 | ||
| 87251-29020 |
BJ6# W/RR HEATER,RH |
1 | ||
| 87251-90K00 |
BJ61 W/RR HEATER,RH |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20100 |
BJ61 *H,L=55 |
1 | ||
| 99556-20055 |
BJ61 *H,L=55 |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-90A13 |
BJ6# |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-90A22 |
BJ61 |
1 | ||
| 87245-90A32 |
BJ61 |
1 | ||
| Common parts | ||||
| 87433-90K00 | ||||
| 90460-22073 | ||||
| 90460-24039 | ||||
| 90480-01015 | ||||
| 91611-61045 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91655-40616 | ||||
| 96112-10250 | ||||
| 96533-13017 | ||||
(8510- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87248D - PIPE, HEATER WATER INLET, D | ||||
| 87248-90A23 |
BJ61 |
1 | ||
| 87248-90A21 |
BJ61 |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87248-90A19 |
BJ61,FJ61,HJ60 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-90A23 |
BJ61 |
1 | ||
| 87245-90A31 |
BJ61 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-90A05 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-90A05 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99552-20100 |
BJ61,FJ61,HJ60 L=100 |
1 | ||
| 99556-20100 |
BJ61,FJ61,HJ60 長さ=100 |
1 | ||
| 99556-20100 |
BJ61 長さ=100 |
1 | ||
| Common parts | ||||
| 87124-90A03 | ||||
| 87124-90A07 | ||||
| 90460-22073 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 96112-10220 | ||||
