BJ61V-KC (1982)
Toyota Land Cruiser Van
Production
Oct 1982
-
Aug 1986
Engine
3B
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

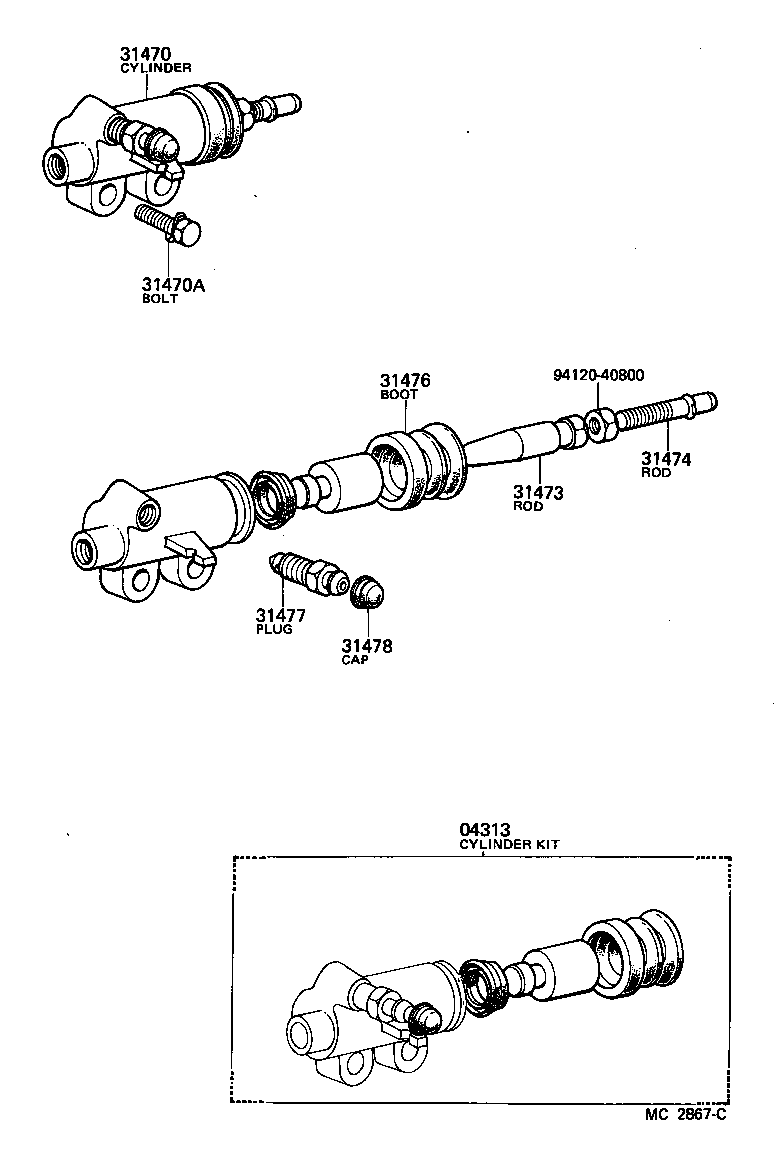

(8008-8411)BJ6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04313 - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-60060 |
BJ61 |
1 | ||
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-60130 |
BJ61 |
1 | ||
| 31470-60120 |
BJ61 |
1 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 91611-60828 |
BJ6# *8−1.25PX28−28 |
2 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-60100 |
BJ61 |
1 | ||
| 31473-60110 |
BJ61 |
1 | ||
| 31474 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2 | ||||
| 31474-30020 |
BJ6# |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-60050 |
BJ61 |
1 | ||
| 31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER) | ||||
| 47547-12010 |
BJ6#,FJ6#,HJ6#..MTM |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
BJ6#,FJ6#,HJ6#..MTM |
1 | ||
| Common parts | ||||
| 94120-40800 | ||||

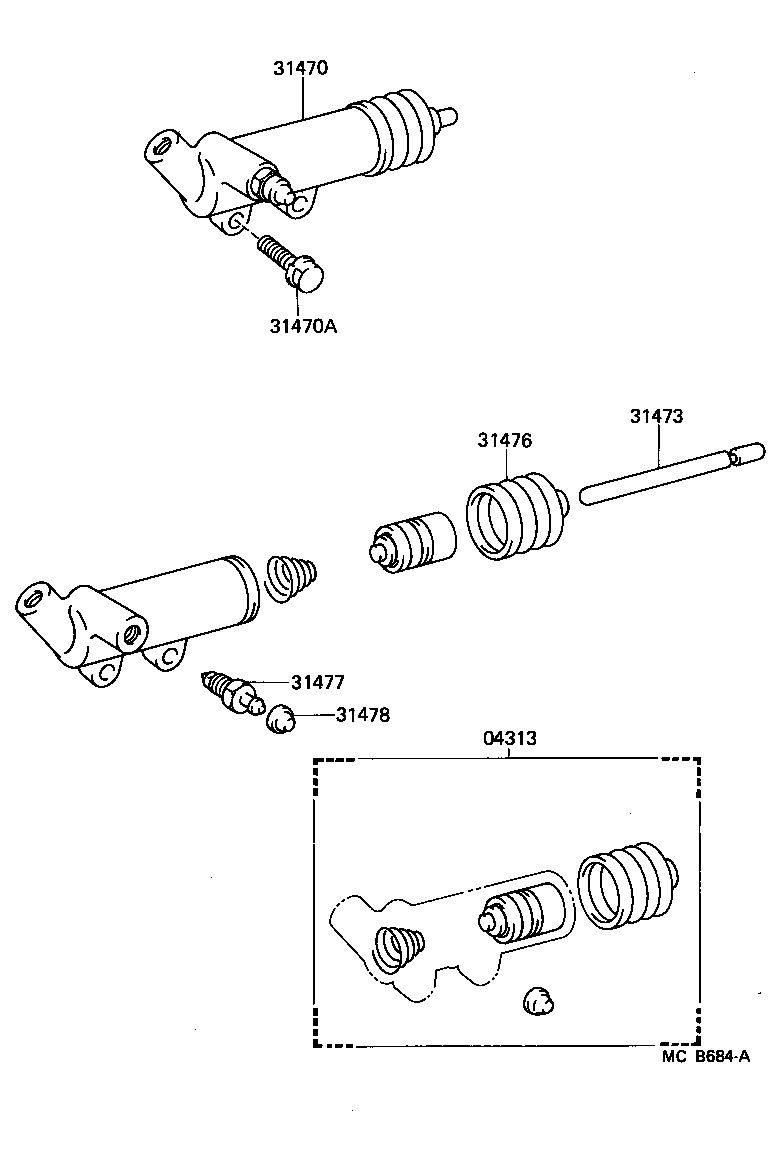

(8411-8608)BJ61
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04313 - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-60060 |
BJ61 |
1 | ||
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-60130 |
BJ61 |
1 | ||
| 31470-60120 |
BJ61 |
1 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 91611-60828 |
BJ6# *8−1.25PX28−28 |
2 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-60100 |
BJ61 |
1 | ||
| 31473-60110 |
BJ61 |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-60050 |
BJ61 |
1 | ||
| 31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER) | ||||
| 47547-12010 |
BJ6#,FJ6#,HJ6#..MTM |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
BJ6#,FJ6#,HJ6#..MTM |
1 | ||
