BJ60V-KCY (1980)

Toyota Land Cruiser Van

Production Aug 1980 - Oct 1982
Engine 3B
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8510)

Click highlighted areas on diagram

diagram 8712490A00 8712490A03 8712490A07 87248D 87249D 87255B 87255E 87256A 87256B 9046022073 9046022073 9165140616 9165140816 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87248D - PIPE, HEATER WATER INLET, D
87248-90A15

BJ60

 1
87249D - PIPE, HEATER WATER OUTLET, D
87248-90A10

BJ60,FJ60

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-90A15

BJ60

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-90A05

BJ6#,FJ6#,HJ60

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-90A05

BJ6#,FJ6#,HJ60

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-20200

BJ60,FJ60

*H,L=200

 1
Common parts
87124-90A00
87124-90A03
87124-90A07
90460-22073
91651-40616
91651-40816
96112-10220

(8008-8411)BJ6#

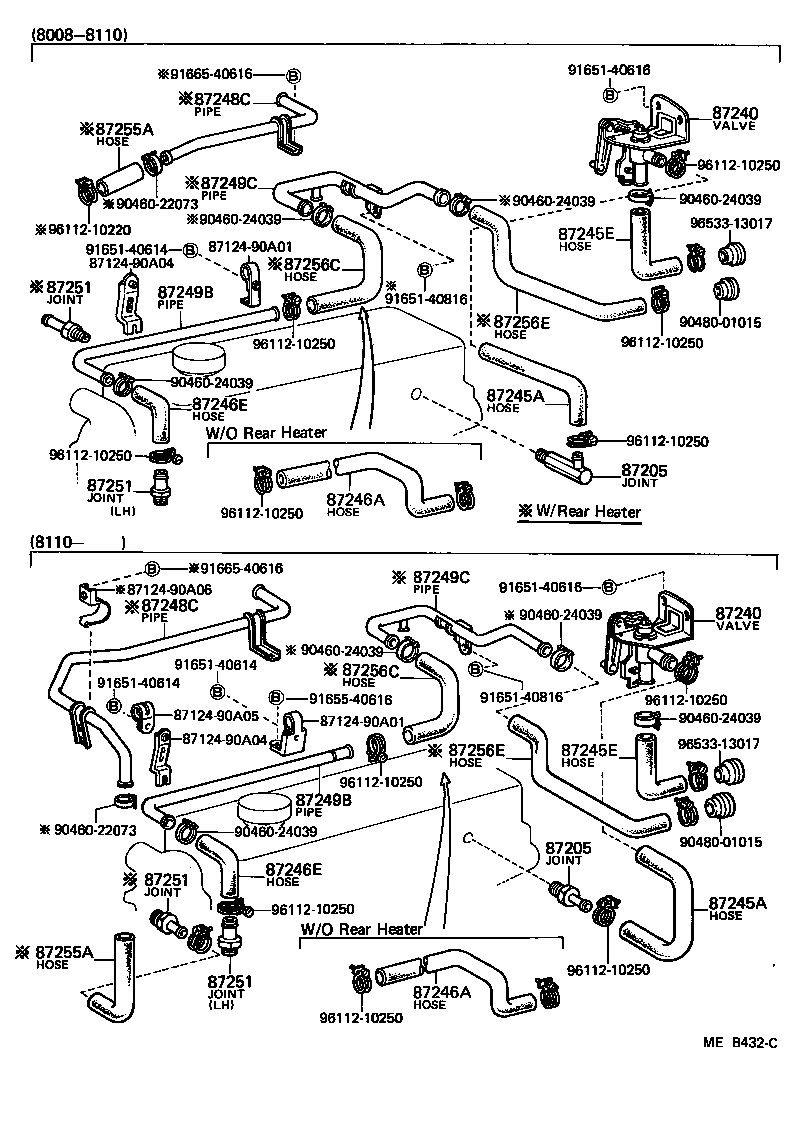

Click highlighted areas on diagram

diagram 8712490A01 8712490A01 8712490A04 8712490A04 8712490A05 8712490A06 87205 87205 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87246E 87246E 87248C 87248C 87249B 87249B 87249C 87249C 87251 87251 87251 87251 87255A 87255A 87256C 87256C 87256E 87256E 9046022073 9046022073 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9048001015 9048001015 9165140614 9165140614 9165140614 9165140616 9165140616 9165140816 9165140816 9165540616 9166540616 9166540616 9611210220 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9653313017 9653313017
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

BJ6#

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

BJ6#

 1
87240 - VALVE ASSY, HEATER WATER
87240-90A00

BJ6#,FJ6#,HJ6#

 1
87240 - VALVE ASSY, HEATER WATER
87240-90A00

BJ6#,FJ6#,HJ6#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-90A18

BJ6#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-90A18

BJ6#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-90A00

BJ6#,FJ6#,HJ6#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-90A00

BJ6#,FJ6#,HJ6#

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-30500

BJ60

*H,L=430

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-30500

BJ60

*H,L=430

 1
87246E - HOSE, HEATER WATER, OUTLET E
87247-20051

BJ6#

#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87247-20051

BJ6#

#

 1
87248C - PIPE, HEATER WATER INLET, C
87248-90A12

BJ60

 1
87248C - PIPE, HEATER WATER INLET, C
87248-90A12

BJ60

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-60260

BJ6#

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-60260

BJ6#

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-90A14

BJ60

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-90A14

BJ60

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BJ6#,HJ6#

LH

 1
87251-29020

BJ6#

W/RR HEATER,RH

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BJ6#,HJ6#

LH

 1
87251-29020

BJ6#

W/RR HEATER,RH

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BJ6#,HJ6#

LH

 1
87251-29020

BJ6#

W/RR HEATER,RH

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BJ6#,HJ6#

LH

 1
87251-29020

BJ6#

W/RR HEATER,RH

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-90A16

BJ60

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-90A16

BJ60

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-90A13

BJ6#

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-90A13

BJ6#

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-90A14

BJ60

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-90A14

BJ60

 1
Common parts
87124-90A01
87124-90A04
87124-90A05
87124-90A06
90460-22073
90460-24039
90480-01015
91651-40614
91651-40616
91651-40816
91655-40616
91665-40616
96112-10220
96112-10250
96533-13017
