BJ60V-KCY (1980)

Toyota Land Cruiser Van

Production Aug 1980 - Oct 1982
Engine 3B
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8510)

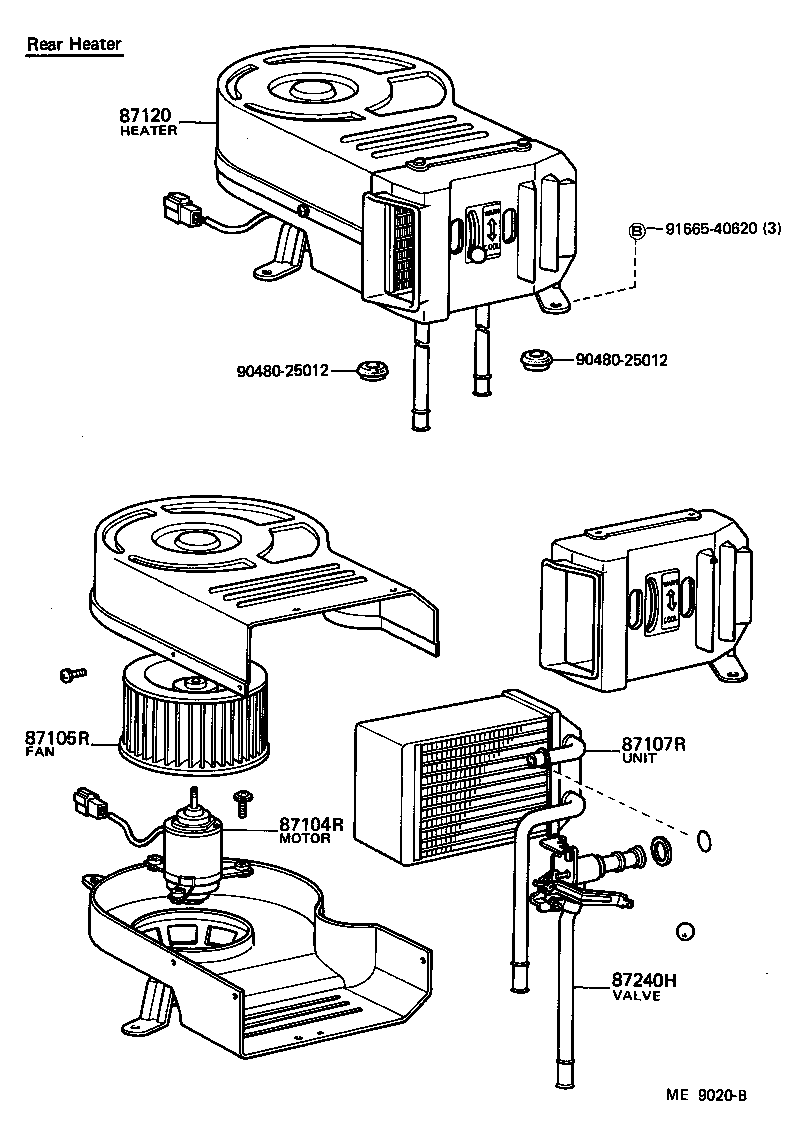

Click highlighted areas on diagram

diagram 87104R 87105R 87107R 87120 87240H 9048025012 9048025012 9166540620
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-90A04

BJ6#,HJ60

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002

BJ6#,FJ6#,HJ6#

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-90A01

BJ6#,FJ6#,HJ60

 1
87120 - HEATER ASSY, REAR
87110-90A01

BJ6#,HJ60

 1
87240H - VALVE ASSY, WATER UNIT
87240-90A01

BJ6#,FJ6#,HJ60

RR HEATER

 1
Common parts
90480-25012
91665-40620

(8008- )

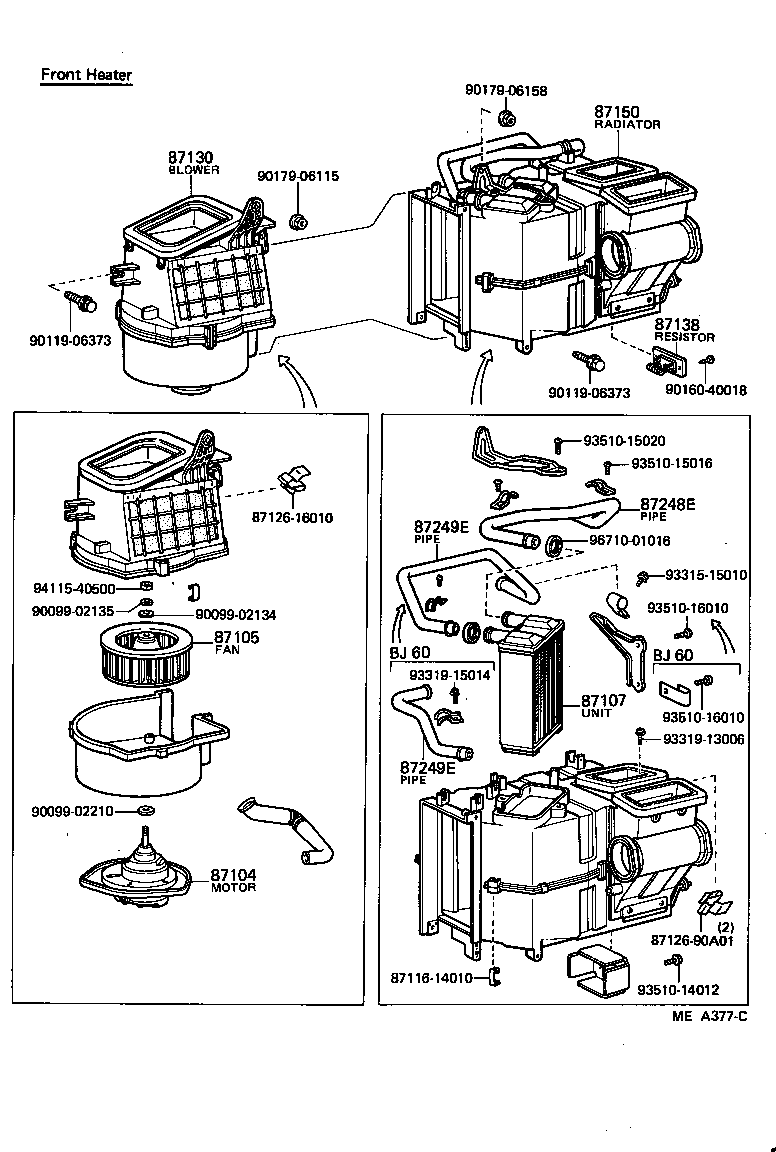

Click highlighted areas on diagram

diagram 87104 87105 87107 8711614010 8712616010 8712690A01 87130 87138 87150 87248E 87249E 87249E 9009902134 9009902135 9009902210 9011906373 9011906373 9016040018 9017906115 9017906158 9331515010 9331913006 9331915014 9351014012 9351015016 9351015020 9351016010 9351016010 9411540500 9671001016
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-90A02

BJ6#,HJ60

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87134-30020

BJ6#,HJ60

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-90A00

BJ6#,FJ6#,HJ60

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-90A02

BJ6#,HJ60

 1
87138 - RESISTOR, HEATER BLOWER
87138-90A00

BJ6#,HJ6#

 1
87150 - RADIATOR ASSY, HEATER
87150-90A02

BJ6#

 1
87248E - PIPE, HEATER WATER INLET, E
87248-90A00

BJ6#,FJ6#,HJ60

 1
87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)
87248-90A04

BJ6#

 1
87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)
87248-90A04

BJ6#

 1
Common parts
87116-14010
87126-16010
87126-90A01
90099-02134
90099-02135
90099-02210
90119-06373
90160-40018
90179-06115
90179-06158
93315-15010
93319-13006
93319-15014
93510-14012
93510-15016
93510-15020
93510-16010
94115-40500
96710-01016
