BJ60V-KCY (1980)

Toyota Land Cruiser Van

Production Aug 1980 - Oct 1982
Engine 3B
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )CBU

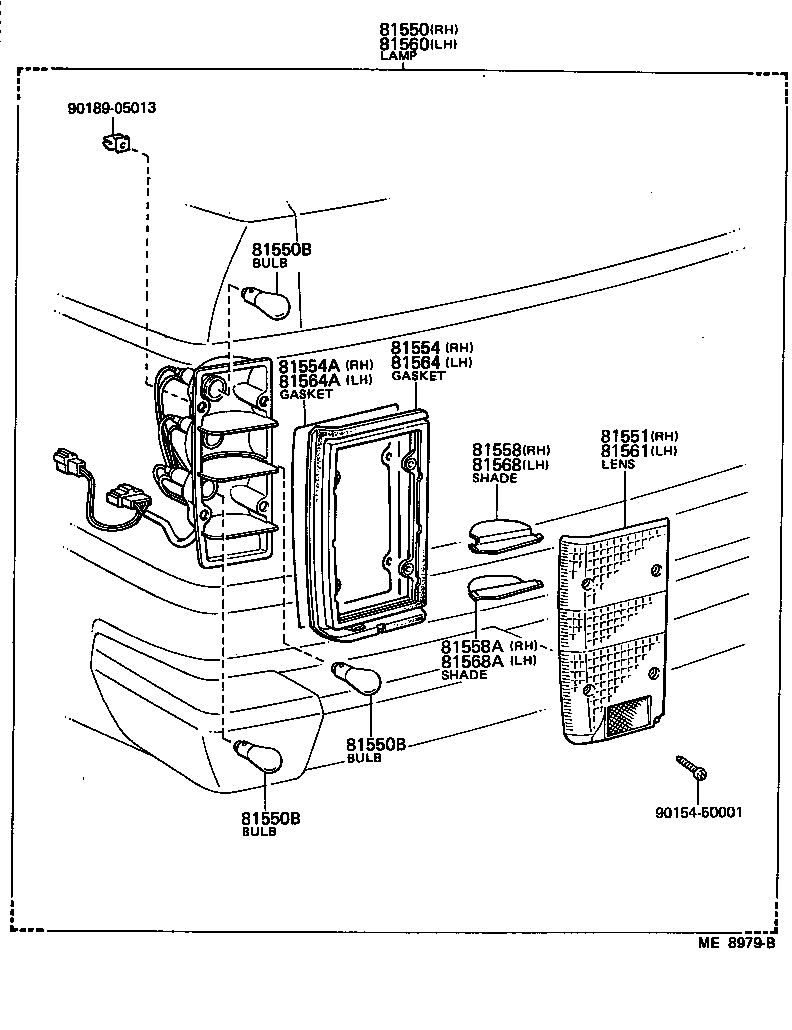

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81554A 81558 81558A 81560 81561 81564 81564A 81568 81568A 9015450001 9018905013
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-69075

BJ6#,HJ60

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-16015

BJ6#,HJ6#

24V 21/5W,24V 21/5W(STOP,TAIL/PARKING)

 2
99134-11250

BJ6#,HJ6#

24V 25W,24V 25W(TURN OR BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-16015

BJ6#,HJ6#

24V 21/5W,24V 21/5W(STOP,TAIL/PARKING)

 2
99134-11250

BJ6#,HJ6#

24V 25W,24V 25W(TURN OR BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-16015

BJ6#,HJ6#

24V 21/5W,24V 21/5W(STOP,TAIL/PARKING)

 2
99134-11250

BJ6#,HJ6#

24V 25W,24V 25W(TURN OR BACK)

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-90A00

BJ6#,FJ6#,HJ6#..CBU

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-90A00

BJ6#,FJ6#,HJ6#..CBU

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-90A00

BJ6#,FJ6#,HJ6#..CBU

 1
81558A - SHADE, REAR COMBINATION LAMP, NO.2 RH
81558-90A00

BJ6#,FJ6#,HJ6#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-69075

BJ6#,HJ60

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-90A00

BJ6#,FJ6#,HJ6#..CBU

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-90A00

BJ6#,FJ6#,HJ6#..CBU

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-90A00

BJ6#,FJ6#,HJ6#..CBU

 1
81568A - SHADE, REAR COMBINATION LAMP, NO.2 LH
81558-90A00

BJ6#,FJ6#,HJ6#

 1
Common parts
90154-50001
90189-05013
