BJ60V-KCY (1980)
Toyota Land Cruiser Van

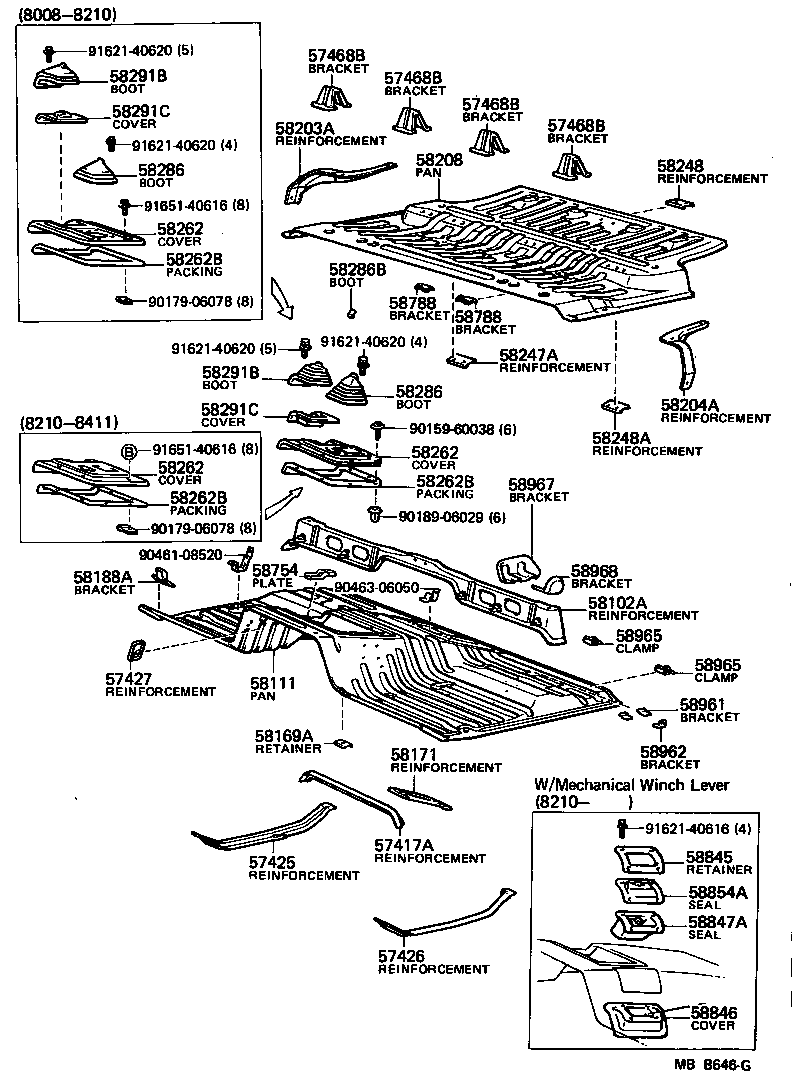

ILLUST NO. 1 OF 3(8008-8510)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57417A - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-90A00 |
BJ6#,FJ6#,HJ6#..MTM |
1 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-90A00 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-90A00 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 57427 - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-90A00 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-90A00 |
BJ6#,FJ6#,HJ60 |
4 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-90A00 |
BJ6#,FJ6#,HJ60 |
4 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-90A00 |
BJ6#,FJ6#,HJ60 |
4 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-90A00 |
BJ6#,FJ6#,HJ60 |
4 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-90A00 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-90A06 |
BJ60,FJ60 W/HEATER,W/O WINCH |
1 | ||
| 58111-90A07 |
BJ60,FJ60 W/HEATER,WINCH |
1 | ||
| 58111-90A05 |
BJ60,FJ60 W/O HEATER,WINCH |
1 | ||
| 58111-90A08 |
BJ60,FJ60 W/O HEATER,W/WINCH |
1 | ||
| 58169A - RETAINER, REAR HEATER MOUNTING | ||||
| 58169-90A00 |
BJ6#,FJ6#,HJ60 |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-90A00 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 58188A - BRACKET, ACCELERATOR PEDAL STOPPER | ||||
| 58188-90A00 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | ||||
| 58203-90A00 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | ||||
| 58204-90A00 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-90A00 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-90A00 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 58248 - REINFORCEMENT, REAR SEAT CUSHION LOCK | ||||
| 58248-90A00 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58247-90A00 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 58262 - COVER, TRANSMISSION | ||||
| 58261-90A00 |
BJ60,FJ60 |
1 | ||
| 58261-90A01 |
BJ60,FJ60 |
1 | ||
| 58262 - COVER, TRANSMISSION | ||||
| 58261-90A00 |
BJ60,FJ60 |
1 | ||
| 58261-90A01 |
BJ60,FJ60 |
1 | ||
| 58262 - COVER, TRANSMISSION | ||||
| 58261-90A00 |
BJ60,FJ60 |
1 | ||
| 58261-90A01 |
BJ60,FJ60 |
1 | ||
| 58262B - PACKING, TRANSMISSION COVER | ||||
| 58263-90A00 |
BJ60,FJ60 |
1 | ||
| 58262B - PACKING, TRANSMISSION COVER | ||||
| 58263-90A00 |
BJ60,FJ60 |
1 | ||
| 58262B - PACKING, TRANSMISSION COVER | ||||
| 58263-90A00 |
BJ60,FJ60 |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-90A00 |
BJ60,FJ60 |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-90A00 |
BJ60,FJ60 |
1 | ||
| 58286B - BOOT, SHIFT LEVER, NO.1 | ||||
| 58289-90A00 |
BJ60,FJ60 |
1 | ||
| 58291B - BOOT, TRANSFER SHIFT LEVER | ||||
| 58290-90A00 |
BJ60,FJ60 |
1 | ||
| 58290-90A01 |
BJ60,FJ60 |
1 | ||
| 58291B - BOOT, TRANSFER SHIFT LEVER | ||||
| 58290-90A00 |
BJ60,FJ60 |
1 | ||
| 58290-90A01 |
BJ60,FJ60 |
1 | ||
| 58291C - COVER, TRANSFER SHIFT LEVER BOOT | ||||
| 58268-90A00 |
BJ60,FJ60 |
1 | ||
| 58268-90A01 |
BJ60,FJ60 |
1 | ||
| 58291C - COVER, TRANSFER SHIFT LEVER BOOT | ||||
| 58268-90A00 |
BJ60,FJ60 |
1 | ||
| 58268-90A01 |
BJ60,FJ60 |
1 | ||
| 58788 - BRACKET, JACK HANDLE SUPPORT | ||||
| 58706-90A00 |
BJ6#,FJ6#,HJ60 |
2 | ||
| 58788 - BRACKET, JACK HANDLE SUPPORT | ||||
| 58706-90A00 |
BJ6#,FJ6#,HJ60 |
2 | ||
| 58961 - BRACKET, TOOL BAG, SET BAND, NO.1 | ||||
| 74732-90A00 |
BJ6#,FJ6#,HJ60 |
2 | ||
| 58962 - BRACKET, TOOL BAG, SET BAND, NO.2 | ||||
| 58785-90A00 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 58965 - CLAMP, JACK HANDLE | ||||
| 58706-90A00 |
BJ6#,FJ6#,HJ60 |
2 | ||
| 58965 - CLAMP, JACK HANDLE | ||||
| 58706-90A00 |
BJ6#,FJ6#,HJ60 |
2 | ||
| 58967 - BRACKET, JACK SUPPORT, NO.1 | ||||
| 58967-90A00 |
BJ6#,FJ6#,HJ60 |
1 | ||
| 58968 - BRACKET, JACK SUPPORT, NO.2 | ||||
| 58968-90A00 |
BJ6#,FJ6#,HJ60 |
1 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 90179-06078 | ||||
| 90189-06029 | ||||
| 90461-08520 | ||||
| 90463-06050 | ||||
| 91621-40616 | ||||
| 91621-40620 | ||||
| 91651-40616 | ||||

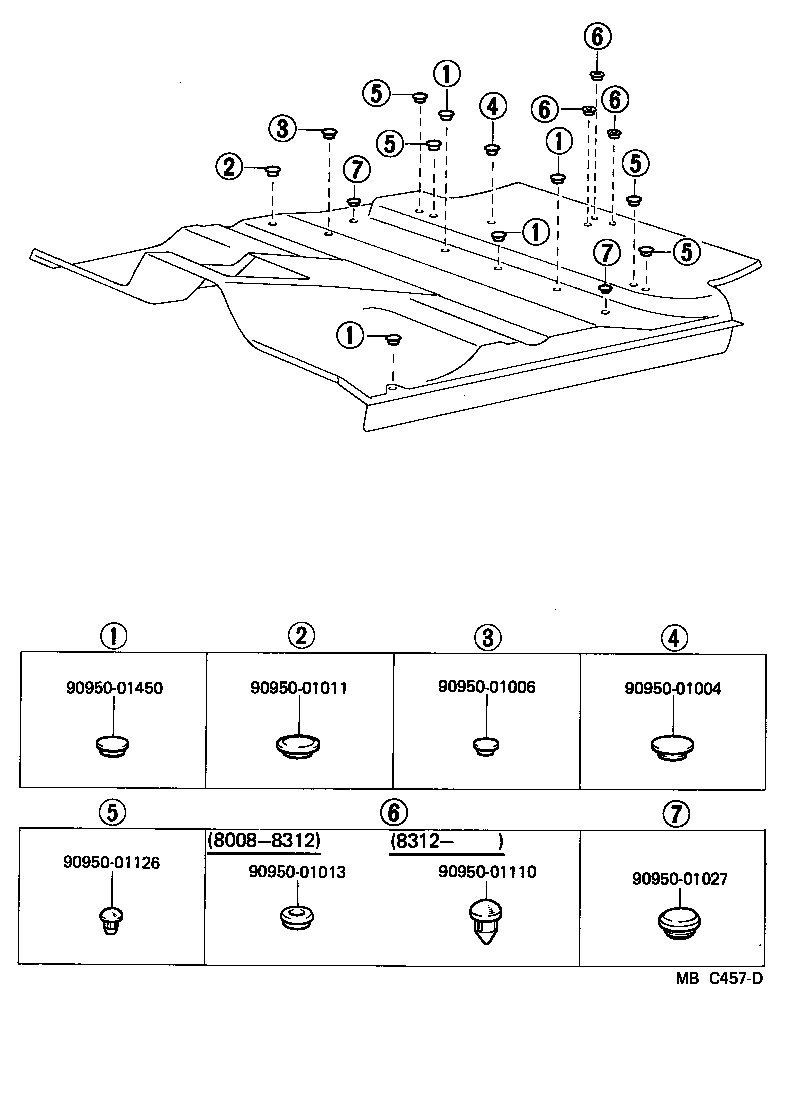

ILLUST NO. 3 OF 3(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90950-01004 | ||||
| 90950-01006 | ||||
| 90950-01011 | ||||
| 90950-01013 | ||||
| 90950-01027 | ||||
| 90950-01110 | ||||
| 90950-01126 | ||||
| 90950-01450 | ||||
