BJ60V-KCY (1980)
Toyota Land Cruiser Van
Production
Aug 1980
-
Oct 1982
Engine
3B
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

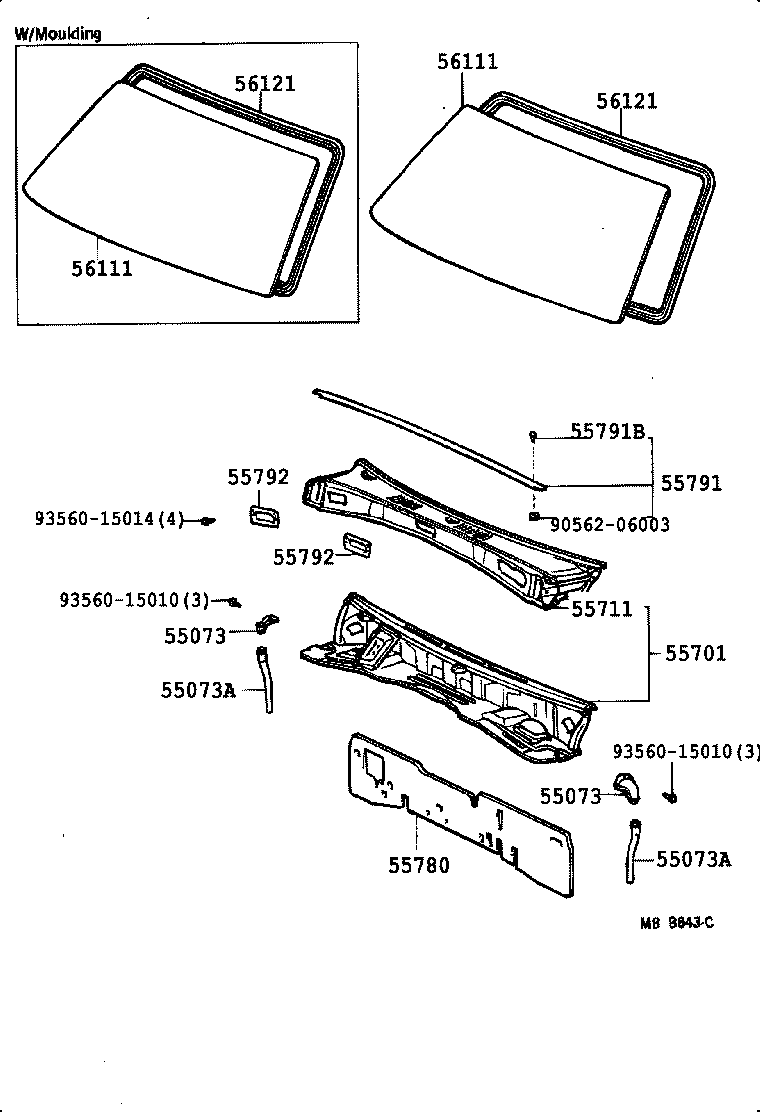

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT | ||||
| 55073-90A00 |
BJ6#,FJ6#,HJ6# |
2 | ||
| 55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT | ||||
| 55073-90A00 |
BJ6#,FJ6#,HJ6# |
2 | ||
| 55073A - HOSE(FOR EXTRACT NOZZLE) | ||||
| 90910-04012 |
BJ6#,FJ6#,HJ6# |
2 | ||
| 55073A - HOSE(FOR EXTRACT NOZZLE) | ||||
| 90910-04012 |
BJ6#,FJ6#,HJ6# |
2 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-90A02 |
BJ60,FJ60..CBU W/HEATER OR COOLER |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55701-90A01 |
BJ60,FJ60 |
1 | ||
| 55780 - INSULATOR ASSY, COWL TOP | ||||
| 55780-90A00 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 55791 - WEATHERSTRIP, HOOD TO COWL TOP | ||||
| 53383-90A00 |
BJ6#,FJ6#,HJ6# |
1 | ||
| 55791B - CLIP(FOR HOOD TO COWL TOP WEATHERSTRIP) | ||||
| 90467-08011 |
BJ6#,FJ6#,HJ6# |
9 | ||
| 55792 - COVER, WIPER MOTOR SERVICE HOLE | ||||
| 55793-89105 |
BJ6#,FJ6#,HJ60 |
2 | ||
| 55792 - COVER, WIPER MOTOR SERVICE HOLE | ||||
| 55793-89105 |
BJ6#,FJ6#,HJ60 |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-90A03 |
BJ60,FJ60..CBU *TT,T=5.0 |
1 | ||
| 56111-90A01 |
BJ6#,FJ6#..VKC *TEM,T=5.0 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-90A03 |
BJ60,FJ60..CBU *TT,T=5.0 |
1 | ||
| 56111-90A01 |
BJ6#,FJ6#..VKC *TEM,T=5.0 |
1 | ||
| 56121 - WEATHERSTRIP, WINDSHIELD | ||||
| 56121-90A00 |
BJ6#,FJ6#,HJ60..VKC W/O MOULDING |
1 | ||
| 56121-90A01 |
BJ6#,FJ60,62,HJ60..CBU W/MOULDING |
1 | ||
| 56121 - WEATHERSTRIP, WINDSHIELD | ||||
| 56121-90A00 |
BJ6#,FJ6#,HJ60..VKC W/O MOULDING |
1 | ||
| 56121-90A01 |
BJ6#,FJ60,62,HJ60..CBU W/MOULDING |
1 | ||
| Common parts | ||||
| 90562-06003 | ||||
| 93560-15010 | ||||
| 93560-15014 | ||||
