BJ60V-KCY (1980)

Toyota Land Cruiser Van

Production Aug 1980 - Oct 1982
Engine 3B
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

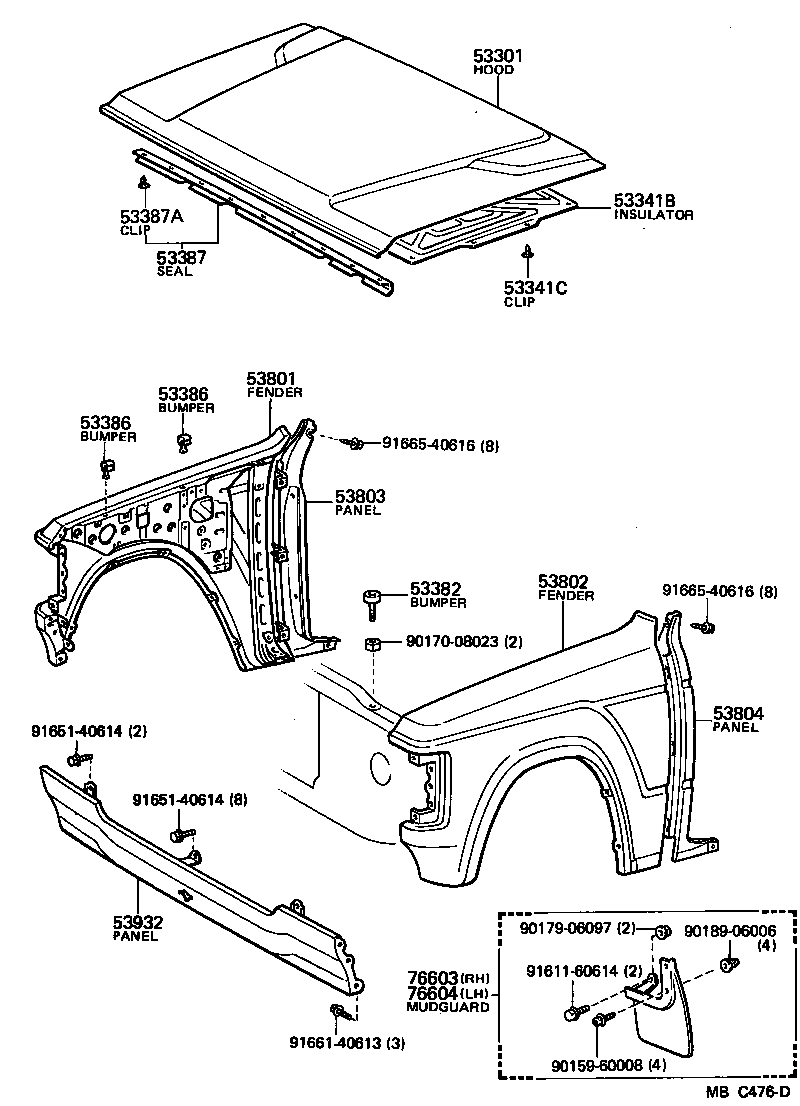

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53382 53386 53386 53387 53387A 53801 53802 53803 53804 53932 76603 76604 9015960008 9017008023 9017906097 9018906006 9161160614 9165140614 9165140614 9166140613 9166540616 9166540616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-90A01

BJ6#,FJ6#,HJ6#

 1
53341B - INSULATOR, HOOD
53341-90A00

BJ6#,FJ6#,HJ60

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09014

BJ6#,FJ6#,HJ6#

 19
53382 - BUMPER, HOOD, FRONT
53382-20011

BJ6#,FJ6#,HJ6#

 2
53386 - BUMPER, HOOD, REAR
53382-30060

BJ6#,FJ6#,HJ6#

 4
53386 - BUMPER, HOOD, REAR
53382-30060

BJ6#,FJ6#,HJ6#

 4
53387 - SEAL, HOOD TO RADIATOR SUPPORT
53381-90A00

BJ6#,FJ6#,HJ6#

 1
53387A - CLIP(FOR HOOD TO RADIATOR SUPPORT SET)
90467-08008

BJ60,FJ60

 9
53801 - FENDER SUB-ASSY, FRONT RH
53801-90A05

BJ6#,FJ6#,HJ60

W/*FM

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-90A06

BJ60,FJ60

 1
53802-90A15

BJ60,FJ60

W/MUDGUARD

 1
53932 - PANEL SUB-ASSY, FRONT END
53903-90A03

BJ6#,FJ6#,HJ60

W/HEADLAMP CLEANER

 1
53903-90A02

BJ6#,FJ6#,HJ60

W/O HEADLAMP CLEANER

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-69015

BJ6#,FJ6#,HJ6#

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-69015

BJ6#,FJ6#,HJ6#

 1
Common parts
90159-60008
90170-08023
90179-06097
90189-06006
91611-60614
91651-40614
91661-40613
91665-40616
